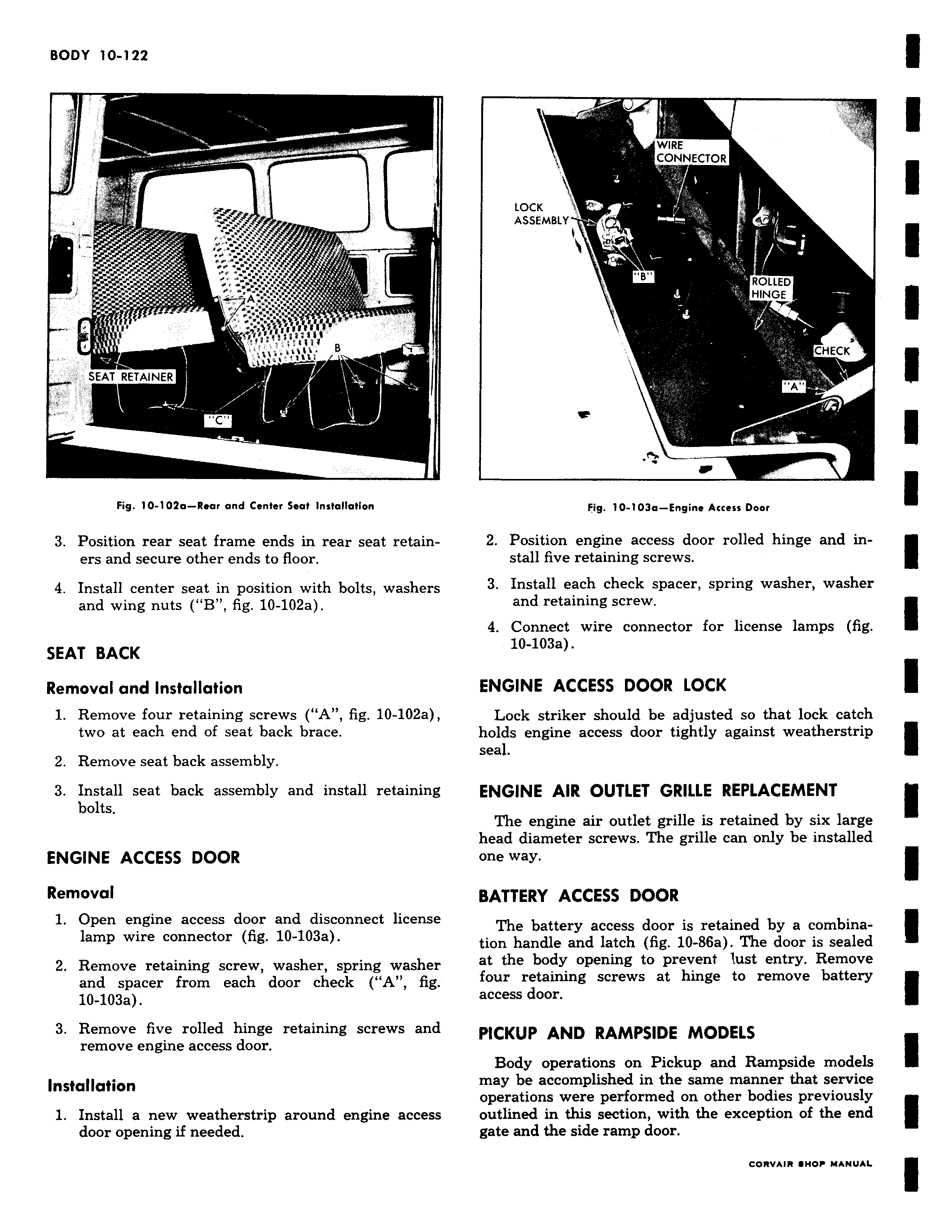

T v rfr r itss i m mrs r Ill t q err i r 1 t 1 t 1 rSjjfQ Eii7 B SEAT RETAINER v Fig 10 102a Rear and Center Seat Installation 3 Position rear seat frame ends in rear seat retainers and secure other ends to floor 4 Install center seat in position with bolts washers and wing nuts B fig 10 102a SEAT BACK Removal and Installation 1 Remove four retaining screws A fig 10 102a two at each end of seat back brace 2 Remove seat back assembly 3 Install seat back assembly and install retaining bolts ENGINE ACCESS DOOR Removal 1 Open engine access door and disconnect license lamp wire connector fig 10 103a 2 Remove retaining screw washer spring washer and spacer from each door check A fig 10 103a 3 Remove five rolled hinge retaining screws and remove engine access door Installation 1 Install a new weatherstrip around engine access door opening if needed Y WIRE CONNECTOR LOCK ASSEMBLY W ROLLED HINGE T CHECK A s Fig 10 103a Engine Access Door 2 Position engine access door rolled hinge and install five retaining screws 3 Install each check spacer spring washer washer and retaining screw 4 Connect wire connector for license lamps fig 10 103a ENGINE ACCESS DOOR LOCK Lock striker should be adjusted so that lock catch holds engine access door tightly against weatherstrip seal ENGINE AIR OUTLET GRILLE REPLACEMENT The engine air outlet grille is retained by six large head diameter screws The grille can only be installed one way BATTERY ACCESS DOOR The battery access door is retained by a combination handle and latch fig 10 86a The door is sealed at the body opening to prevent lust entry Remove four retaining screws at hinge to remove battery access door PICKUP AND RAMPSIDE MODELS Body operations on Pickup and Rampside models may be accomplished in the same manner that service operations were performed on other bodies previously outlined in this section with the exception of the end gate and the side ramp door
