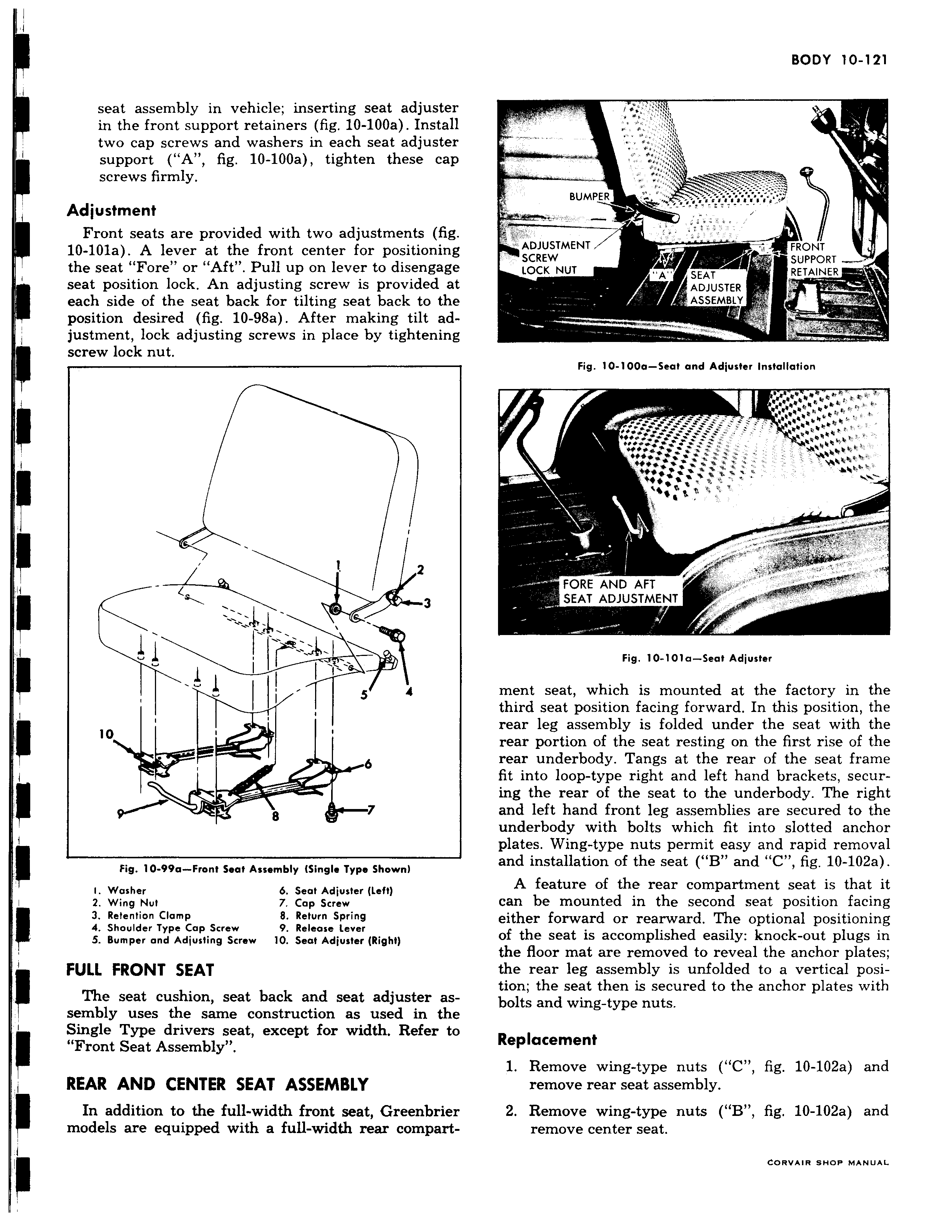

I seat assembly in vehicle inserting seat adjuste in the front support retainers fig 10 100a Instal two cap screws and washers in each seat adjuste support A fig 10 100a tighten these ca screws firmly Adjustment Front seats are provided with two adjustments fig 10 lOla A lever at the front center for positionin the seat Fore or Aft Pull up on lever to disengagseat position lock An adjusting screw is provided a each side of the seat back for tilting seat back to th position desired fig 10 98a After making tilt ad justment lock adjusting screws in place by tightenin screw lock nut 1 L 3 i li 10 6 8 7 Fig 10 99a Front Seat Assembly Single Type Shown I Washer b Seat Adjuster Left 2 Wing Nut 7 Cap Screw 3 Retention Clamp 8 Return Spring 4 Shoulder Type Cap Screw 9 Release Lever 5 Bumper and Adjusting Screw 10 Seat Adjuster Right FULL FRONT SEAT The seat cushion seat back and seat adjuster as sembly uses the same construction as used in thSingle Type drivers seat except for width Refer t Front Seat Assembly REAR AND CENTER SEAT ASSEMBLY In addition to the full width front seat Greenbrie models are equipped with a full width rear compart 1 BUMPER r n r s y ADJUSTMENT FRONT SCREW SUPPORT LOCK NUT A EAT RETAINER t ADJUSTER ASSEMBLY Y Fig 10 100a Seat and Adjuster Installation t y6bbM c 4 tn p aaa ae a l atn s p l y Waa e 0 Lh x 44 Z r 1 7 FORE AND AFT SEAT ADJUSTMENT A Fig 10 lOla Seat Adjuster ment seat which is mounted at the factory in the third seat position facing forward In this position the rear leg assembly is folded under the seat with the rear portion of the seat resting on the first rise of the rear underbody Tangs at the rear of the seat frame fit into loop type right and left hand brackets securing the rear of the seat to the underbody The right and left hand front leg assemblies are secured to the underbody with bolts which fit into slotted anchor plates Wing type nuts permit easy and rapid removal and installation of the seat B and C fig 10 102a A feature of the rear compartment seat is that it can be mounted in the second seat position facing either forward or rearward The optional positioning of the seat is accomplished easily knock out plugs in the floor mat are removed to reveal the anchor plates the rear leg assembly is unfolded to a vertical position the seat then is secured to the anchor plates with bolts and wing type nuts Replacement 1 Remove wing type nuts C fig 10 102a and remove rear seat assembly r 2 Remove wing type nuts B fig 10 102a and remove center seat
