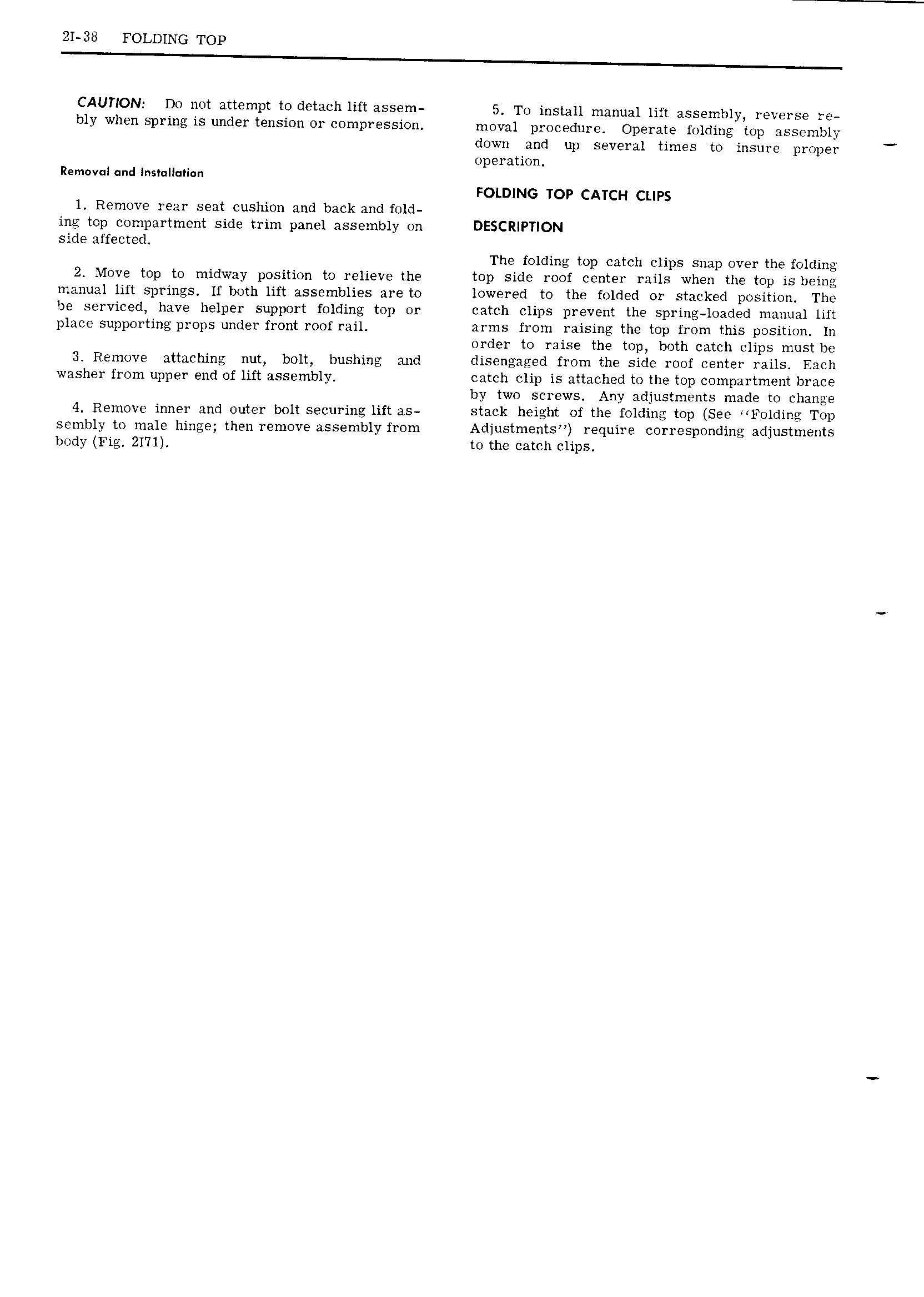

21 38 FOLDING TOP CAUTION Do not attempt to detach lift assem 5 To install manual lift assembly reverse re bly when spring is under tension or compression moval procedure Operate folding top assembly down and up several times to insure proper operation Removal and Ins I ti n FOLDING TOP CATCH CLIPS 1 Remove rear seat cushion and back and fold ing top compartment side trim panel assembly on DESCRIPTION side affected The folding top catch clips snap over the folding 2 Move top to midway position to relieve the top side roof center rails when the top is being manual lift springs lf both lift assemblies are to lowered to the folded or stacked position The be serviced have helper support folding top or catch clips prevent the spring loaded manual lift place supporting props under front roof rail arms from raising the top from this position In order to raise the top both catch clips must be 3 Remove attaching nut bolt bushing and disengaged from the side roof center rails Each washer from upper end of lift assembly catch clip is attached to the top compartment brace by two screws Any adjustments made to change 4 Remove inner and outer bolt securing lift as stack height of the folding top See Folding Top sembly to male hinge then remove assembly from Adjustments require corresponding adjustments body Fig 2171 to the catch clips
