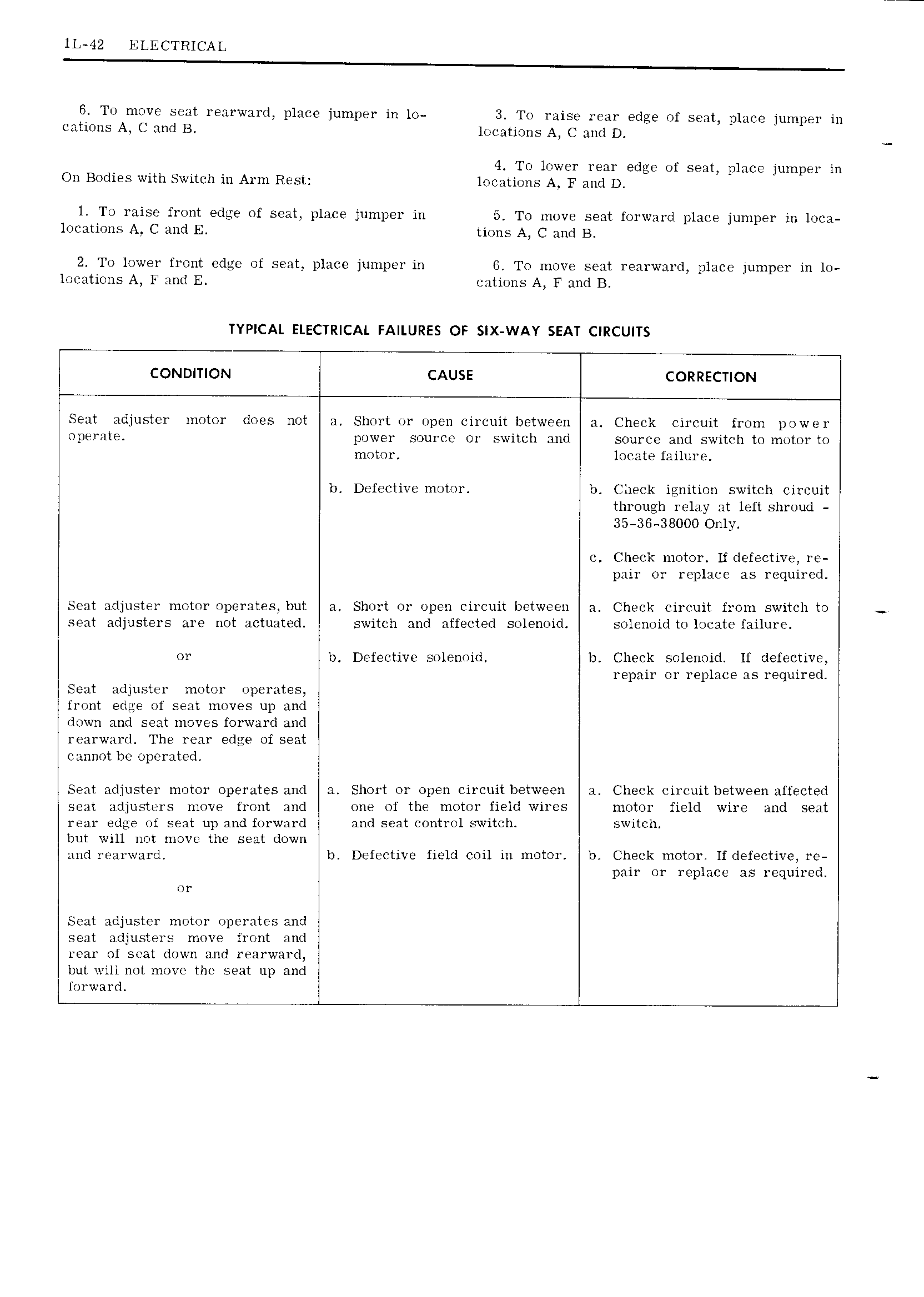

1L 42 ELECTRICAL 5 To mo ve seat rearward place iumper in lo 3 To raise rear edge of seat place jumper in cations A C and B locations A C and D 4 To lower rear edge of seat place jumper in On Bodies with Switch in Arm Rest locations A F and D l To raise front edge of seat place jumper in 5 To move seat forward place jumper in loca locations A C and E tions A C and B 2 To lower front edge of seat place juniper in 6 To move seat rearward place jumper in lo locations A F and E cations A F and B TYPICAL ELECTRICAL FAILURES OF SIX WAY SEAT CIRCUITS CONDITION CAUSE CORRECTION Seat adjuster motor does not a Short or open circuit between a Check circuit from power operate power source or switch and source and switch to motor to motor locate failure b Defective motor b Check ignition switch circuit through relay at left shroud 35 36 38000 Only c Check motor lf defective re pair or replace as required Seat adjuster motor operates but a Short or open circuit between a Check circuit from switch to seat adjusters are not actuated switch and affected solenoid solenoid to locate failure or b Defective solenoid b Check solenoid If defective repair or replace as required Seat adjuster motor operates front edge of seat moves up and down and seat moves forward and rearward The rear edge of seat cannot be operated Seat adjuster motor operates and a Short or open circuit between a Check circuit between affected seat adjustcrs move front and one of the motor field wires motor field wire and seat rear edge of seat up and forward and seat control switch switch but will not move the seat down and rearward b Defective field coil in motor b Check motor lf defective re pair or replace as required or Seat adjuster motor operates and seat adjusters move front and rear of scat down and rearward but will not movc thc seat up and forward
