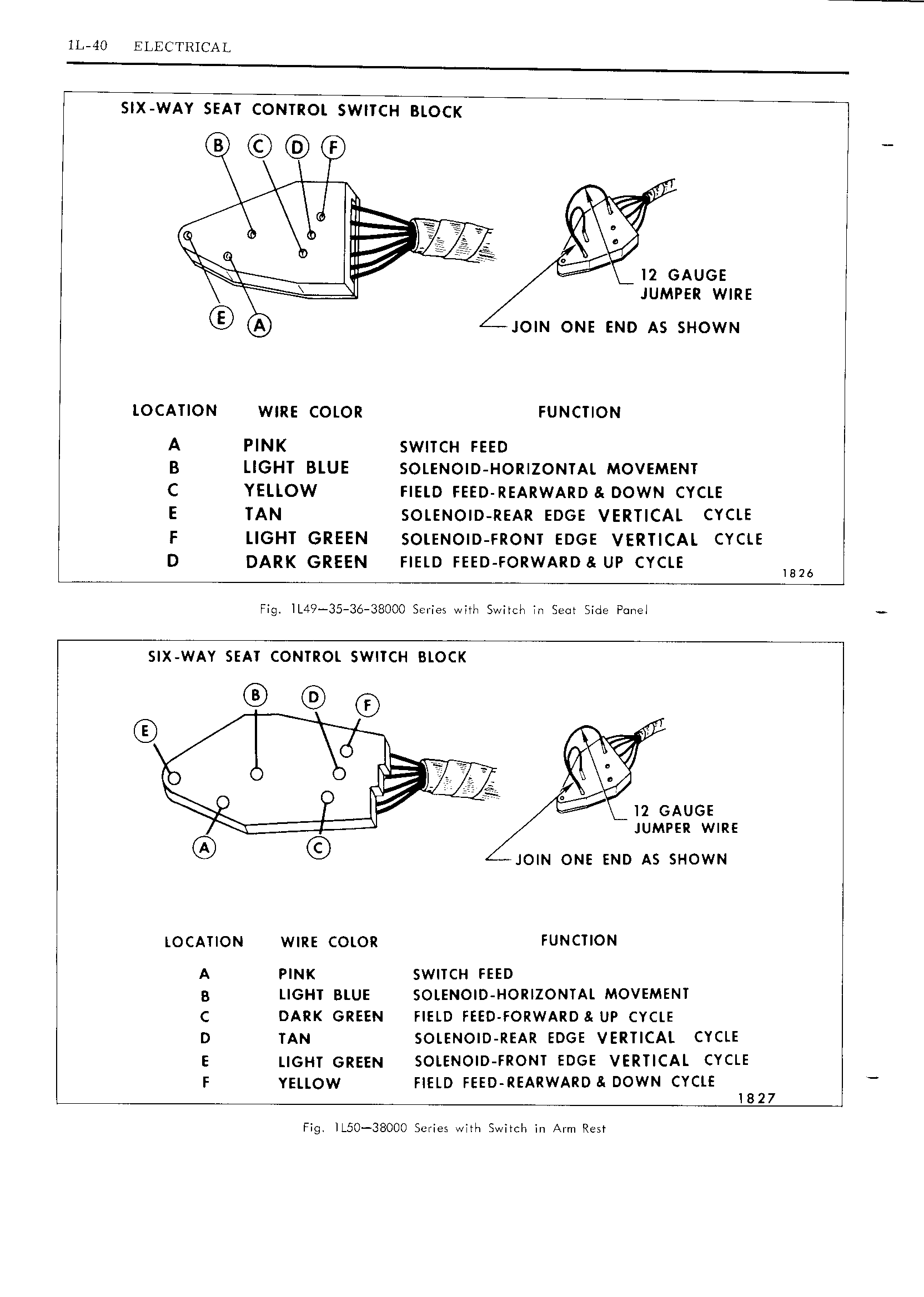

IL 40 ELECTRICAL SIX WAY SEAT CONTROL SWITCH BLOCK G 0 C9 9 9 I I II 4 II rr uf t 4 Q I2 cAucz I JUMPER WIRE Q JOIN ONE END AS SHOWN LOCATION WIRE COLOR FUNCTION A PINK SWITCH FEED B LIGHT BLUE SOLENOID HORIZONTAL MOVEMENT C YELLOW FIELD FEED REARWARD DOWN CYCLE E TAN SOLENOID REAR EDGE VERTICAL CYCLE F LIGHT GREEN SOLENOID FRONT EDGE VERTICAL CYCLE D DARK GREEN FIELD FEED FORWARD UP CYCLE 1826 Figs IL49 35 36 38000 Series with Switch in Seat Side P neI SIX WAY SEAT CONTROL SWITCH BLOCK vw K 4 f 1 I2 GAUGE 1 JUMPER WIRE JOIN ONE END AS SHOWN LOCATION wma COLOR FUNCTION A PINK SWITCH FEED 5 LIGHT BLUE SOLENOID HORIZONTAL MOVEMENT C DARK GREEN FIELD FEED FORWARD8 UP CYCLE D TAN SOLENOID REAR EDGE VERTICAL CYCLE E LIGHT GREEN SOLENOID FRONT EDGE VERTICAL CYCLE F YELLOW FIELD FEED REARWARD8 DOWN CYCLE IB27 Fig II 50 38000 Series with Switch In Arm Rest
