Body Service Manual August 1964 |
|
PrevNext

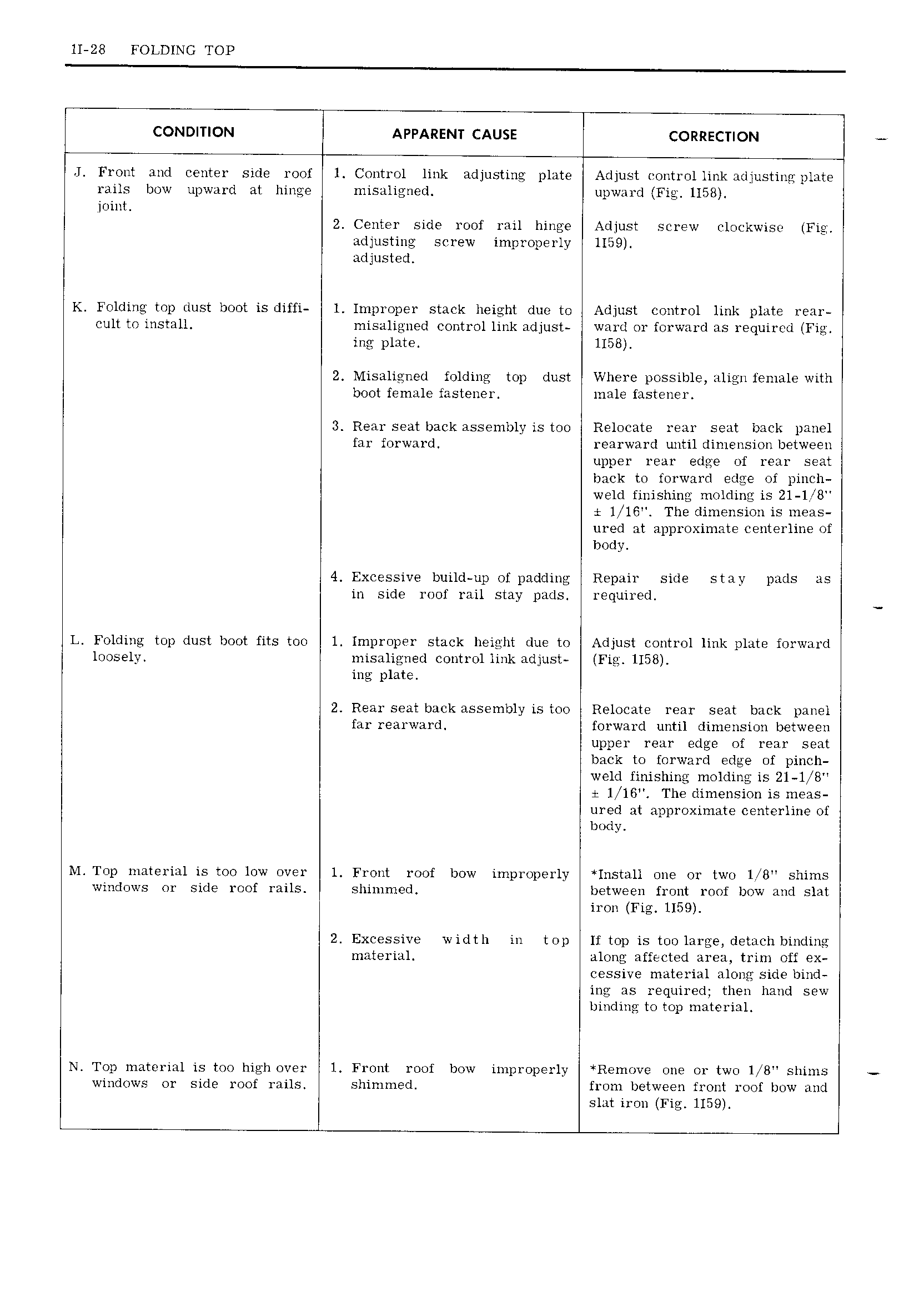

11 28 FOLDING TOP CONDITION APPARENT CAUSE CORRECTION J Front and center side roof 1 Control link adjusting plate Adjust control link adjusting plate rails bow upward at hinge niisaligned upward Fig 1158 joint 2 Center side roof rail hinge Adjust screw clockwise Fig adjusting screw improperly 1159 adjusted K Folding top dust boot is diffi 1 Improper stack height due to Adjust control link plate rear cult to install misaligned control link adjust ward or forward as required Fig ing plate 1158 2 Misaligned folding top dust Where possible align female with boot female fastener male fastener 3 Rear seat back assembly is too Relocate rear seat back panel far forward rearward until dimension between upper rear edge of rear seat back to forward edge of pinch weld finishing molding is 21 1 8 1 l 1G The dimension is meas ured at approximate centerline of body 4 Excessive build up of padding Repair side stay pads as in side roof rail stay pads required L Folding top dust boot fits too 1 Improper stack height due to Adjust control link plate forward loosely misaligned control link adjust Fig 1158 ing plate 2 Rear seat back assembly is too Relocate rear seat back panel far rearward forward until dimension between upper rear edge of rear seat back to forward edge of pinch weld finishing molding is 21 1 8 1 1 16 The dimension is meas ured at approximate centerline of body M Top material is too low over 1 Front roof bow improperly 1nstall one or two 1 B shims windows or side roof rails shimmed between front roof bow and slat iron Fig 1159 2 Excessive width in top If top is too large detach binding material along affected area trim off ex cessive material along side bind ing as required then hand sew binding to top material N Top material is too high over 1 Front roof bow improperly Remove one or two 1 8 sliims windows or side roof rails shimmed from between front roof bow and slat iron Fig 1159
