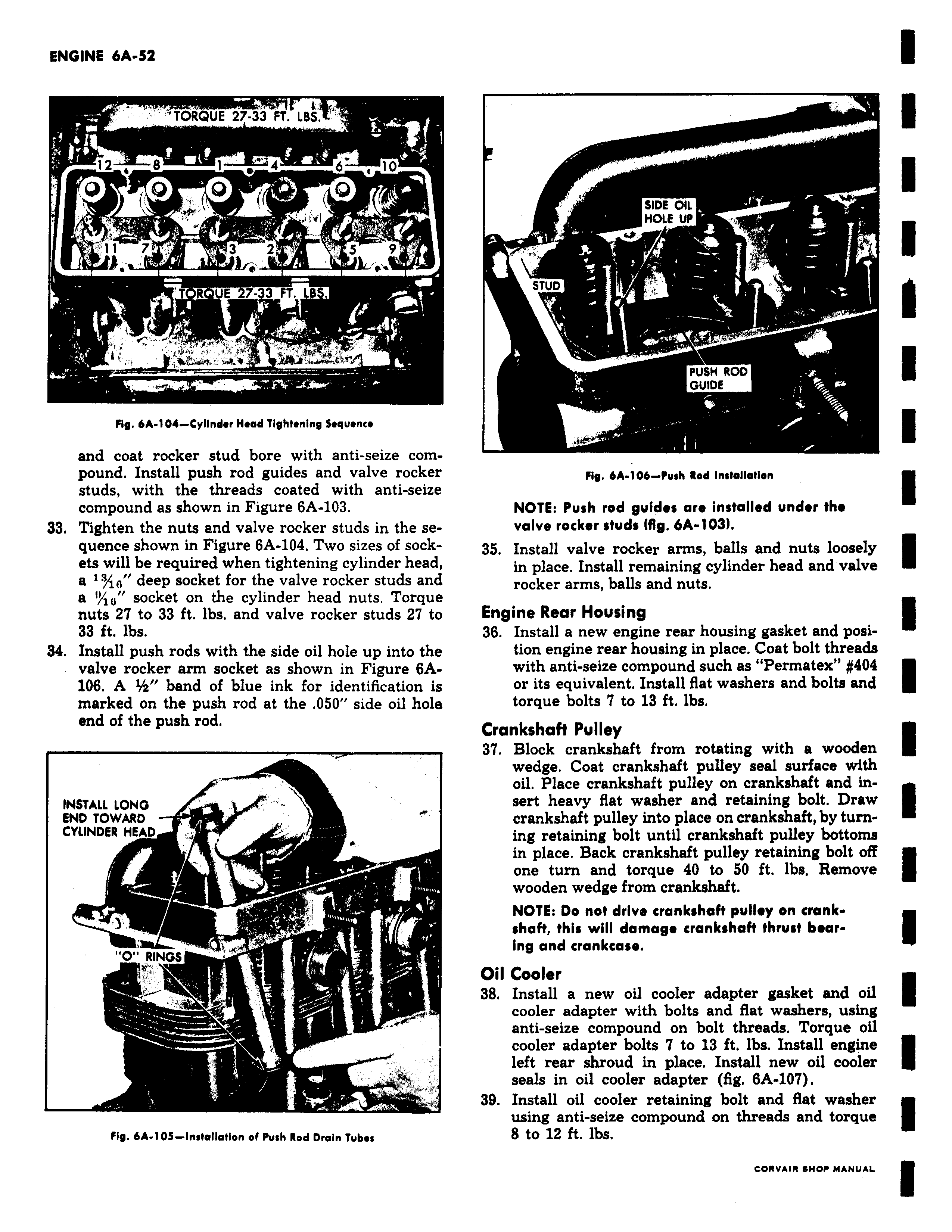

s TORQUE 27 33 FT LBS a Q iv l 7 3 2 TORQUE 27 3 FT LB i 1 w r Fig 6A 104 Cylinder Head Tightening Sequence and coat rocker stud bore with anti seize compound Install push rod guides and valve rocker studs with the threads coated with anti seize compound as shown in Figure 6A 103 33 Tighten the nuts and valve rocker studs in the sequence shown in Figure 6A 104 Two sizes of sockets will be required when tightening cylinder head a 13 1 n deep socket for the valve rocker studs and a 1 1 u socket on the cylinder head nuts Torque nuts 27 to 33 ft lbs and valve rocker studs 27 to 33 ft lbs 34 Install push rods with the side oil hole up into the valve rocker arm socket as shown in Figure 6A106 A lrz band of blue ink for identification is marked on the push rod at the 050 side oil hole end of the push rod INSTALL LONG n END TOWARD CYLINDER HEAD W 0 RING z Fig 6A 105 installation of Push Rod Drain Tube SIDE OIL HOLE UP STUD PUSH ROD GUIDE Fig 6A 106 Puth Rod Installation NOTE Push rod guide are installed under the valve rocker studs fig 6A 1031 35 Install valve rocker arms balls and nuts loosely in place Install remaining cylinder head and valve rocker arms balls and nuts Engine Rear Housing 36 Install a new engine rear housing gasket and position engine rear housing in place Coat bolt threads with anti seize compound such as Permatex 404 or its equivalent Install flat washers and bolts and torque bolts 7 to 13 ft lbs Crankshaft Pulley 37 Block crankshaft from rotating with a wooden wedge Coat crankshaft pulley seal surface with oil Place crankshaft pulley on crankshaft and in sert heavy flat washer and retaining bolt Draw crankshaft pulley into place on crankshaft by turning retaining bolt until crankshaft pulley bottoms in place Back crankshaft pulley retaining bolt off one turn and torque 40 to 50 ft lbs Remove wooden wedge from crankshaft NOTE Do not drive crankshaft pulley on crankshaft this will damage crankshaft thrust bearing and crankcase Oil Cooler 38 Install a new oil cooler adapter gasket and oil cooler adapter with bolts and flat washers using anti seize compound on bolt threads Torque oil cooler adapter bolts 7 to 13 ft lbs Install engine left rear shroud in place Install new oil cooler seals in oil cooler adapter fig 6A 107 39 Install oil cooler retaining bolt and flat washer using anti seize compound on threads and torque 8 to 12 ft lbs
