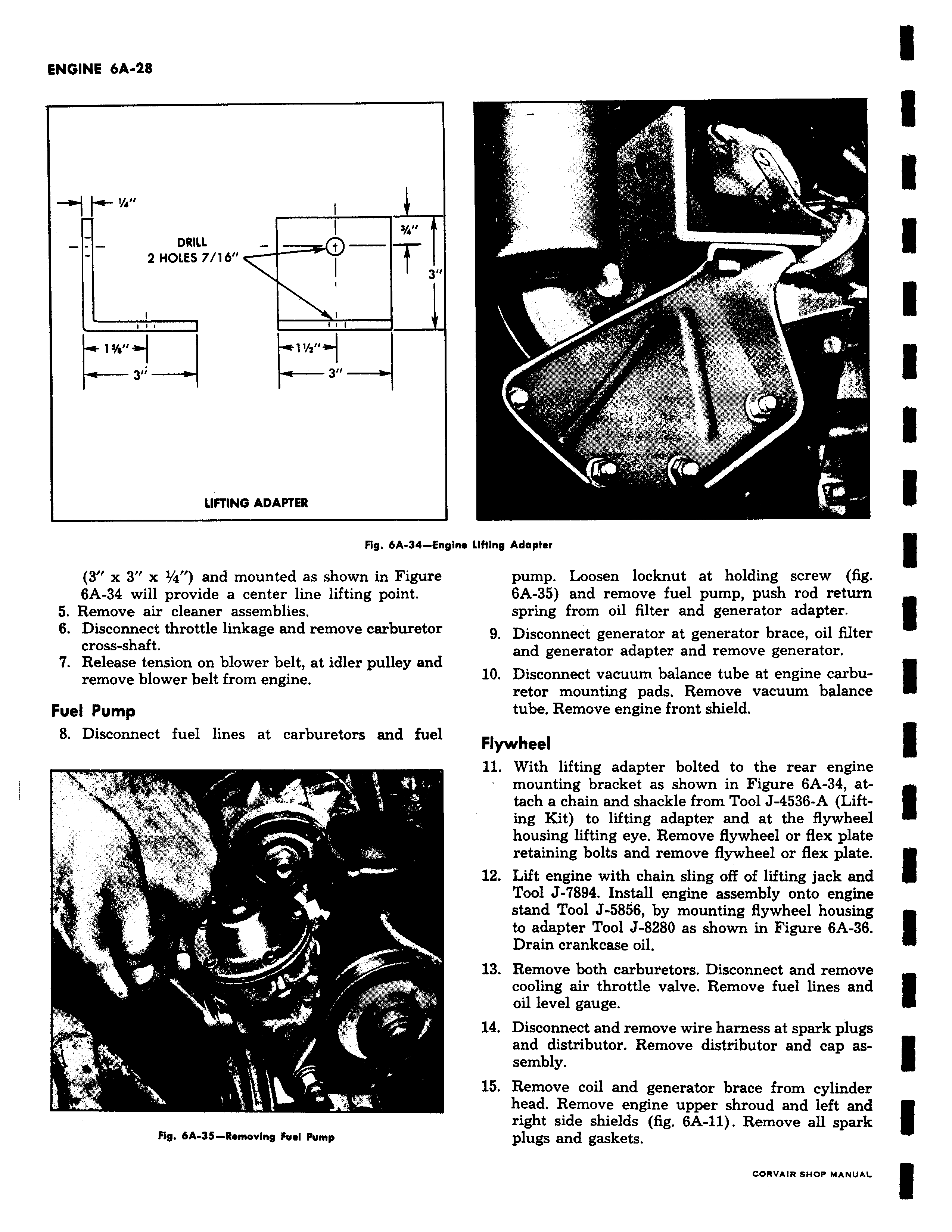

G1 VII c vI1 av 1 3 4 DRILL 2 HOLES 7 16 I v 1 0 1 n LIFTING ADAPTER Pig 6A 34 Engi 3 x 3 x 1 4 and mounted as shown in Figure 6A 34 will provide a center line lifting point 5 Remove air cleaner assemblies 6 Disconnect throttle linkage and remove carburetor cross shaft 7 Release tension on blower belt at idler pulley and remove blower belt from engine Fuel Pump 8 Disconnect fuel lines at carburetors and fuel I 3 1 p 79Y 41 A Fig 6A 3S Removing Fuel Pump l 1 e Y t r no lifting Adapter pump Loosen locknut at holding screw fig 6A 35 and remove fuel pump push rod return spring from oil filter and generator adapter 9 Disconnect generator at generator brace oil filter and generator adapter and remove generator 10 Disconnect vacuum balance tube at engine carburetor mounting pads Remove vacuum balance tube Remove engine front shield Flywheel 11 With lifting adapter bolted to the rear engine mounting bracket as shown in Figure 6A 34 attach a chain and shackle from Tool J 4536 A Lift ing Kit to lifting adapter and at the flywheel housing lifting eye Remove flywheel or flex plate retaining bolts and remove flywheel or flex plate 12 Lift engine with chain sling off of lifting jack and Tool J 7894 Install engine assembly onto engine stand Tool J 5856 by mounting flywheel housing to adapter Tool J 8280 as shown in Figure 6A 36 Drain crankcase oil 13 Remove both carburetors Disconnect and remove cooling air throttle valve Remove fuel lines and oil level gauge 14 Disconnect and remove wire harness at spark plugs and distributor Remove distributor and cap assembly 15 Remove coil and generator brace from cylinder head Remove engine upper shroud and left and right side shields fig 6A 11 Remove all spark plugs and gaskets
