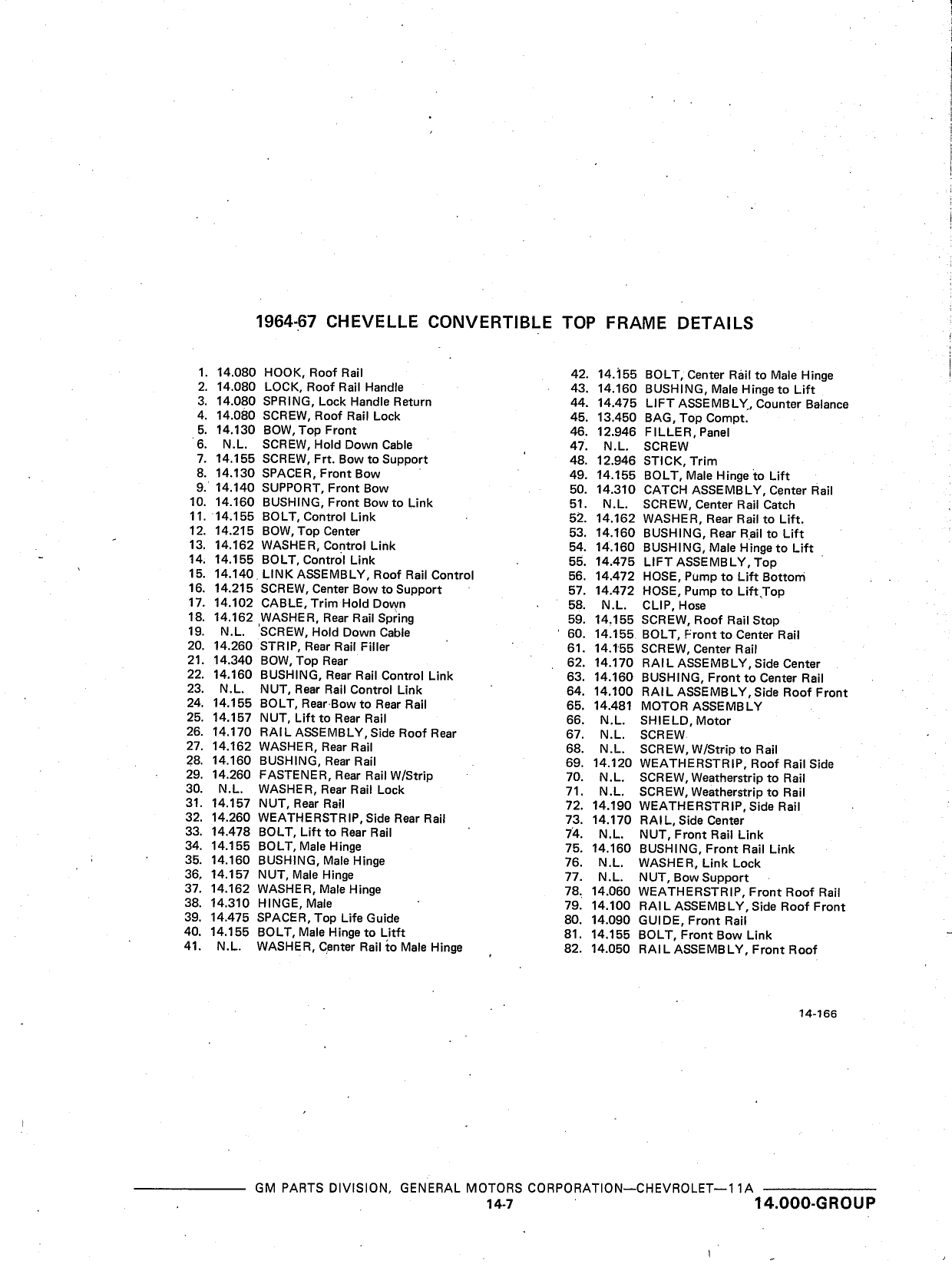

I I I I 196467 CH EVELLE CONVERTIBLE TOP FRAME DETAILS 1 14 080 HOOK Roof Rail 42 14 155 BOLT Center Rail to Male Hinge I 2 14 080 LOCK Roof Rall Handle 43 14 160 BUSHING Male Hinge to Lift 3 14 080 SPRING Lock Handle Return 44 14 475 LIFT ASSEMBLY Counter Balance 4 14 080 SCREW Roof Rail Lock 45 13 450 BAG TDR Comm 5 14 130 BOW Top Front 46 12 946 FILLER Panel 6 N L SCREW Hold Down Cable 4 47 N L SCREW 7 14 155 SCREW Frt Bow to Support 48 12 946 STICK Trim 8 14 130 SPACER Front Bow 49 14 155 BOLT Male Hinge to Lift 9 14 140 SUPPORT Front Bow 50 14 310 CATCH ASSEMBLY Center Rail 10 14 160 BUSHING Front Bow to Link 51 N L SCREW Center Rall Catch 11 14 155 BOLT Conwol Llnk 52 14 162 WASHER Roar Rail to Llft 12 14 215 BOW Tap Center 53 14 160 BUSHING Rear Rail to Lift 13 14 162 WASHER Control Link 54 14 160 BUSHING Male Hinge to Lift 14 14 155 BOLT Control Llnk 55 14 475 LIFT ASSE1 BLV Top 15 14 140 LINK ASSEMBLY Roof Rail Control 56 14 472 HOSE Pump to Llft Bottom 16 14 215 SCREW Center Bow toSupport 57 14 472 HOSE Pump to Llft Top 17 14 102 CABLE Trim Hold Down 58 N L CLIP Hose 18 14 162 WASHER Rear Rail Spring 59 14 155 SCREW Roof Rail Stop 19 N L SCREW Hold Down Cable 60 14 155 BOLT Front to Center Rail 20 14 260 STRIP Rear Rall Flllef 61 14 155 SCREW Center Rail 21 14 340 BOW Top Rear 62 14 170 RAIL ASSEMBLY Slde Center 22 14 160 BUSHING Rear Rail Control Llnk 63 14 160 BUSHING Front to Center Rall 23 N L NUT Rev Rall Control Llnk A 54 14 100 RAIL ASSEMBLV Side Roof Front 24 14 155 BOLT Rear Bow to Rear Rall 65 14 451 MOTOR ASSEMBLY 25 14 157 NUT Liftto Rear Rall S6 N L SHIELD Motor 26 14 170 RAIL ASSEMBLY Side Roof Rear 67 N L SCREW 27 14 162 WASHER Rear Rall 68 N L SCREW WIStrip to Rall 28 14 160 BUSHING Rez Reil 69 14 120 WEATHERSTRIP Roof Rail Slde 29 14 260 FASTENER Rear Rail W Strlp 70 N L SCREW Weatharstrlp to Rail 30 N L WASHER Rear Rall Lock 71 N L SCREW Weatherstrip to Rail 31 14 157 NUT Rear Rail 72 14 190 WEATHERSTRlP Slde Rall 32 14 260 WEATHERSTRIP Side Rvar Rall 73 14 170 RAIL Slde Center 33 14 478 BOLT Lift to Roar Rall 74 N L NUT Front Rell Llnk 34 14 155 BOLT Male Hinge 75 14 160 BUSHING Front Rail Llnk 35 14 160 BUSHING Male Hlnge 76 N L WASHER Llnk Lock 36 14 157 NUT Male Hinge 77 N L NUT Bow Support 37 14 162 WASHER Male Hlnge 78 14 060 WEATHERSTRIP Front Roof Rail 38 14 310 HINGE Mala 79 14 100 RAIL ASSEMBLY Side Hoof Front 39 14 475 SPACER Top Lita Guide B0 14 090 GUIDE Front Rail 40 14 155 BOLT Male Hlnge to Lltft 81 14 155 BOLT Front Bow Link i 41 N L WASHER Center Rall to Mele Hinge I 82 14 050 RAIL ASSEMB LV Front Roof 14 166 7 GM PARTS DIVISION GENERAL MOTORS CORPORAT ON CHEVROLET 1 IA 1 7 14 000 GROUP I
