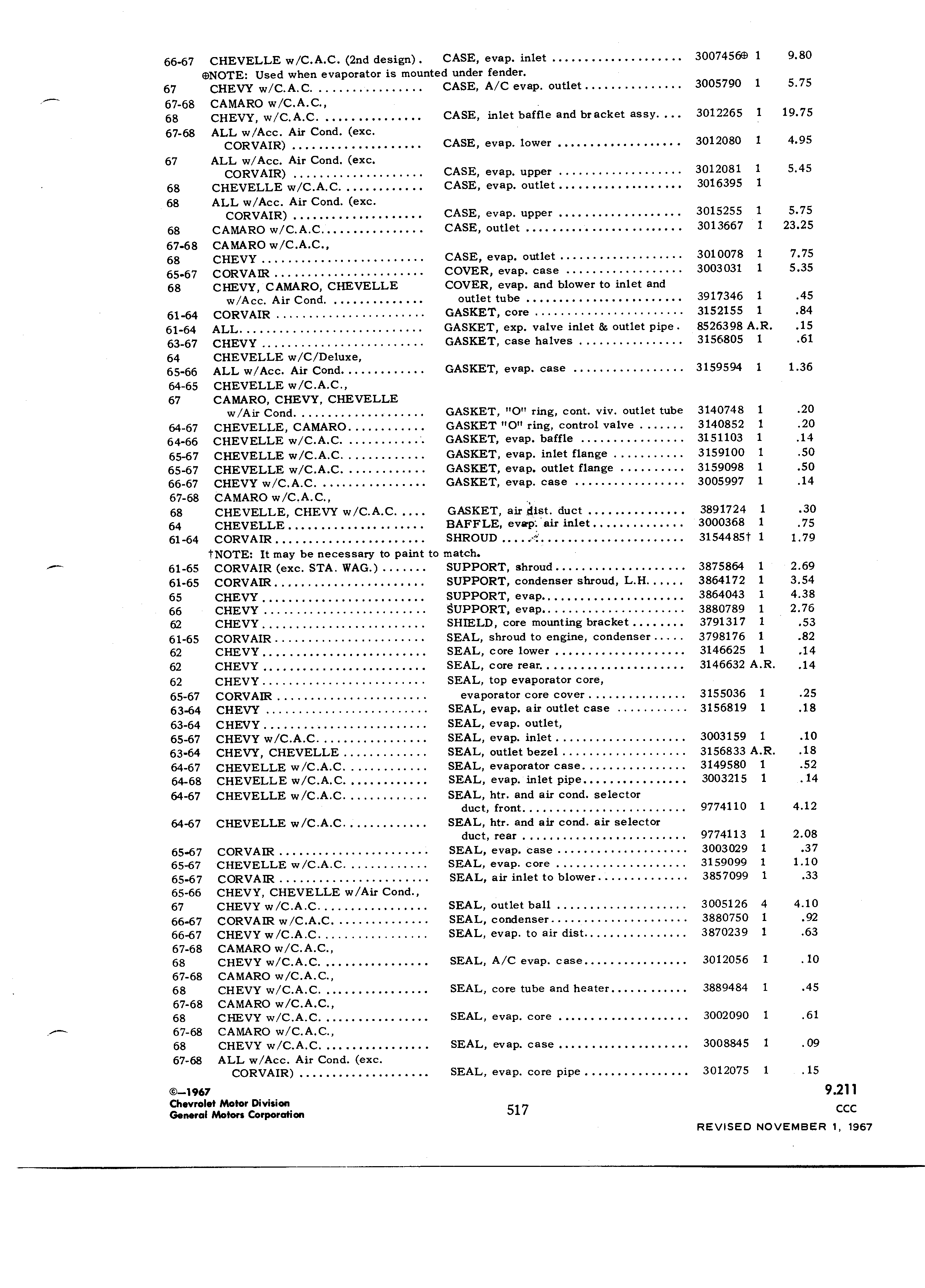

66 67 CHEVELLE w C A C 2nd design CASE evap inlet 300745669 1 9 80 QBNOTE Used when evaporator is mounted under fender 67 CHEVY w C A C CASE A C evap outlet 3005790 1 5 75 f 67 68 CAMARO w C A C 68 CHEVY w C A C CASE inlet baffle and bracket assy 3012265 1 19 75 67 68 ALL w Acc Air Cond exc A CORVAIR CASE evap lower 3012080 1 4 95 67 ALL w Acc Air Cond exc CORVAIR CASE evap upper 3012081 1 5 45 68 CHEVELLE w C A C CASE evap outlet 3016395 1 68 ALL w Acc Air Cond exc CORVAIR CASE evap upper 3015255 1 5 75 68 CAMARO w C A C CASE outlet 3013667 1 23 25 67 68 CAMARO w C A C 68 CHEVY CASE evap outlet 3010078 1 7 75 65 67 CORVAIR COVER evap case 3003031 1 5 35 68 CHEVY CAMARO CHEVELLE COVER evap and blower to inlet and w Acc Air Cond outlet tube 3917346 1 45 61 64 CORVAIR GASKET core 3152155 1 84 61 64 ALL GASKET exp valve inlet 8 outlet pipe 8526398 A R 15 63 67 CHEVY GASKET case halves 3156805 1 61 64 CHEVELLE w C Deluxe 65 66 ALL w Acc Air Cond GASKET evap case 3159594 1 1 36 64 65 CHEVELLE w C A C 67 CAMARO CHEVY CHEVELLE w Air Cond GASKET O ring cont viv outlet tube 3140748 1 20 64 67 CHEVELLE CAMARO GASKET O ring control valve 3140852 1 20 64 66 CHEVELLE w C A C GASKET evap baffle 3151103 1 14 65 67 CHEVELLE w C A C GASKET evap inlet flange 3159100 1 50 65 67 CHEVELLE w C A C GASKET evap outlet flange 3159098 1 50 66 67 CHEVY w C A C GASKET evap case 3005997 1 14 67 68 CAMARO w C A C 68 CHEVELLE CHEVY w C A C GASKET air dist duct 3891724 1 30 64 CHEVELLE BAFFLE evvpfair inlet 3000368 1 75 61 64 CORVAIR SHROUD 11 31544851 1 1 79 TNOTE It may be necessary to paint to match 61 65 CORVAIR exc STA WAG SUPPORT shroud 3875864 1 2 69 61 65 CORVAIR SUPPORT condenser shroud L H 3864172 1 3 54 65 CHEVY SUPPORT evap 3864043 1 4 38 66 CHEVY SUPPORT evap 3880789 1 2 76 62 CHEVY SHIELD core mounting bracket 3791317 1 53 61 65 CORVAIR SEAL shroud to engine condenser 3798176 1 82 62 CHEVY SEAL core lower 3146625 1 14 62 CHEVY SEAL core rear 3146632 A R 14 62 CHEVY SEAL top evaporator core 65 67 CORVAIR evaporator core cover 3155036 1 25 63 64 CHEVY SEAL evap air outlet case 3156819 1 18 63 64 CHEVY SEAL evap outlet 65 67 CHEVY w C A C SEAL evap inlet 3003159 1 10 63 64 CHEVY CHEVELLE SEAL outlet bezel 3156833 A R 18 64 67 CHEVELLE w C A C SEAL evaporator case 3149580 1 52 64 68 CHEVELLE w C A C SEAL evap inlet pipe 3003215 1 14 64 67 CHEVELLE w C A C SEAL htr and air cond selector duct front 9774110 1 4 12 64 67 CHEVELLE w C A C SEAL htr and air cond air selector duct rear 9774113 1 2 08 65 67 CORVAIR SEAL evap case 3003029 1 37 65 67 CHEVELLE w C A C SEAL evap core 3159099 1 1 10 65 67 CORVAIR SEAL air inlet to blower 3857099 1 33 65 66 CHEVY CHEVELLE w Air Cond 67 CHEVY w C A C SEAL outlet ball 3005126 4 4 10 66 67 CORVAIR w C A C SEAL condenser 3880750 1 92 66 67 CHEVY w C A C SEAL evap to air dist 3870239 1 63 67 68 CAMARO w C A C 68 CHEVY w C A C SEAL A C evap case 3012056 1 10 67 68 CAMARO w C A C 68 CHEVY w C A C SEAL core tube and heater 3889484 1 45 67 68 CAMARO w C A C 68 CHEVY w C A C SEAL evap core 3002090 1 61 67 68 CAMARO w C A C 68 CHEVY w C A C SEAL evap case 3008845 1 09 67 68 ALL w Acc Air Cond exc CORVAIR SEAL evap core pipe 3012075 1 15 1967 9 211 Chovrolot Motor Division Gonorol Motors Corporation 517 CCC REVISED NOVEMBER 1 1967
