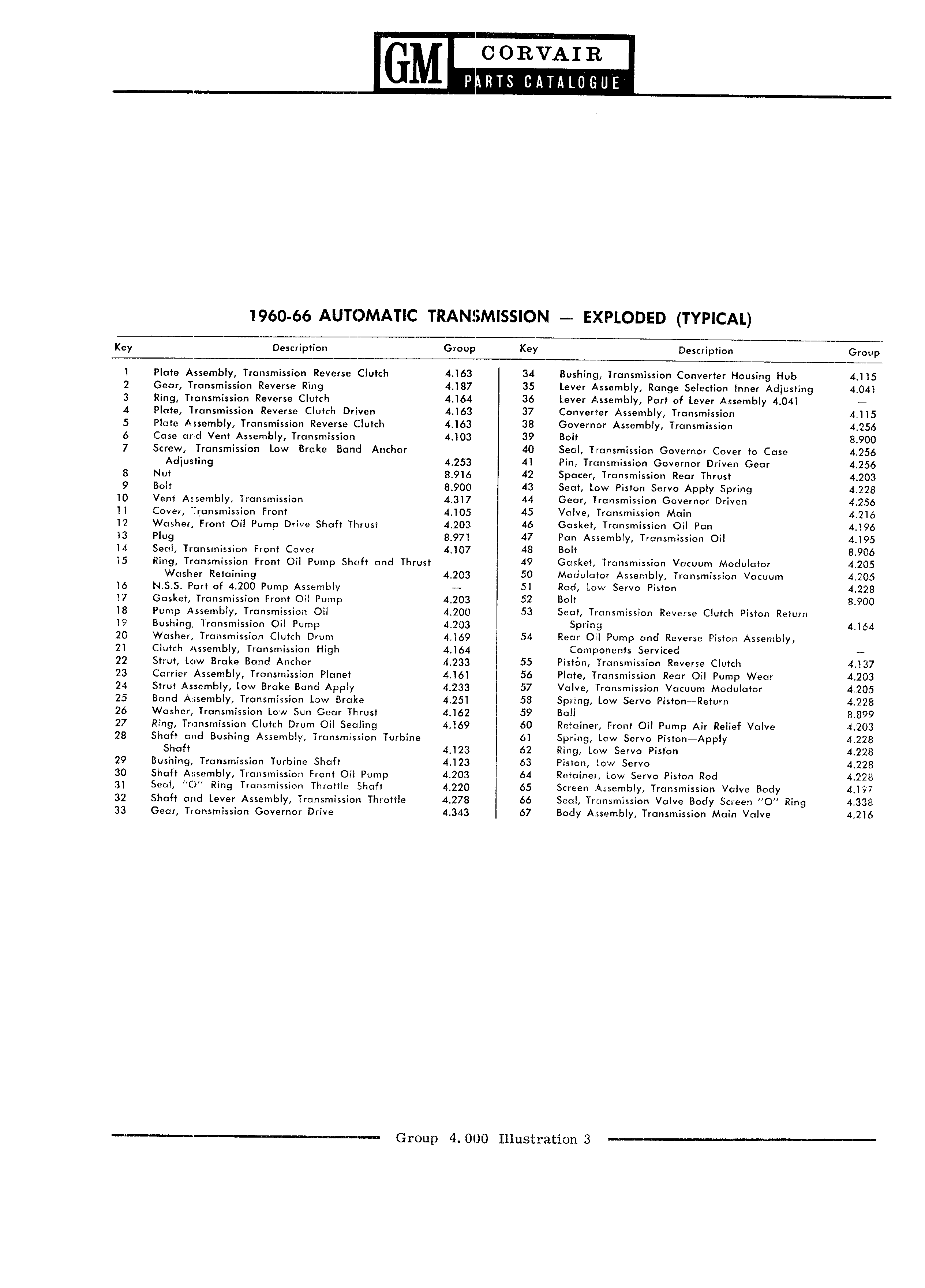

C O RVAI R P RTS CATALOGUE 1960 66 AUTOMATIC TRANSMISSION EXPLODED TYPICAL Key Description Group Key Description Group 1 Plate Assembly Transmission Reverse Clutch 4 163 34 Bushing Transmission Converter Housing Hub 4 115 2 Gear Transmission Reverse Ring 4 187 35 Lever Assembly Range Selection lnner Adjusting 4 041 3 Ring Transmission Reverse Clutch 4 164 36 Lever Assembly Part of Lever Assembly 4 041 4 Plate Transmission Reverse Clutch Driven 4 163 37 Converter Assembly Transmission 4 115 5 Plate Assembly Transmission Reverse Clutch 4 163 38 Governor Assembly Transmission 4 256 6 Case and Vent Assembly Transmission 4 103 39 Balt 8 900 7 Screw Transmission Low Brake Band Anchor 40 Seal Transmission Governor Cover to Case 4 256 Adjusting 4 253 41 Pin Transmission Governor Driven Gear 4 256 8 Nut 8 916 42 Spacer Transmission Rear Thrust 4 203 9 Bolt 8 900 43 Seat Low Piston Servo Apply Spring 4 228 10 Vent Assembly Transmission 4 317 44 Gear Transmission Governor Driven 4 256 11 Cover Transmission Front 4 105 45 Valve Transmission Main 4 216 12 Washer Front Oil Pump Drive Shaft Thrust 4 203 46 Gasket Transmission Oil Pan 4 196 13 Plug 8 971 47 Pan Assembly Transmission Oil 4 195 14 Seal Transmission Front Cover 4 107 48 Bolt 8 906 15 Ring Transmission Front Oil Pump Shaft and Thrust 49 Gasket Transmission Vacuum Modulator 4 205 Washer Retaining 4 203 50 Modulator Assembly Transmission Vacuum 4 205 16 N S S Part of 4 200 Pump Assembly 51 Rod Low Servo Piston 4 228 17 Gasket Transmission Front Oil Pump 4 203 52 Bolt 8 900 18 Pump Assembly Transmission Oil 4 200 53 Seat Transmission Reverse Clutch Piston Return 19 Bushing Transmission Oil Pump 4 203 Spring 4 164 20 Washer Transmission Clutch Drum 4 169 54 Rear Oil Pump and Reverse Piston Assembly 21 Clutch Assembly Transmission High 4 164 Components Serviced 22 Strut Low Brake Bond Anchor 4 233 55 Piston Transmission Reverse Clutch 4 137 23 Carrier Assembly Transmission Planet 4 161 56 Plate Transmission Rear Oil Pump Wear 4 203 24 Strut Assembly Low Brake Band Apply 4 233 57 Valve Transmission Vacuum Modulator 4 205 25 Band Assembly Transmission Low Brake 4 251 j 58 Spring Low Servo Piston Return 4 228 26 Washer Transmission Low Sun Gear Thrust 4 162 59 Ball 8 899 27 Ring Transmission Clutch Drum Oil Sealing 4 169 60 Retainer Front Oil Pump Air Relief Valve 4 203 28 Shaft and Bushing Assembly Transmission Turbine 61 Spring Law Servo Pist on Apply 4 228 Shaft 4 123 62 Ring Low Servo Piston 4 228 29 Bushing Transmission Turbine Shaft 4 123 63 Piston Low Servo 4 228 30 Shaft Assembly Transmission Front Oil Pump 4 203 64 Retainer Low Servo Piston Rod 4 228 31 Seal C Ring Transmission Throttle Shaft 4 220 65 Screen Assembly Transmission Valve Body 4 197 32 Shaft and Lever Assembly Transmission Throttle 4 278 66 Seal Transmission Valve Body Screen O Ring 4 338 33 Gear Transmission Governor Drive 4 343 67 Body Assembly Transmission Main Valve 4 216 i i Group 4 OOO Illustration 3
