Illustration Catalog 41A September 1980
PrevPrevious Page - Illustration Catalog 41A September 1980Illustration Catalog 41A September 1980Next Page - Illustration Catalog 41A September 1980Next

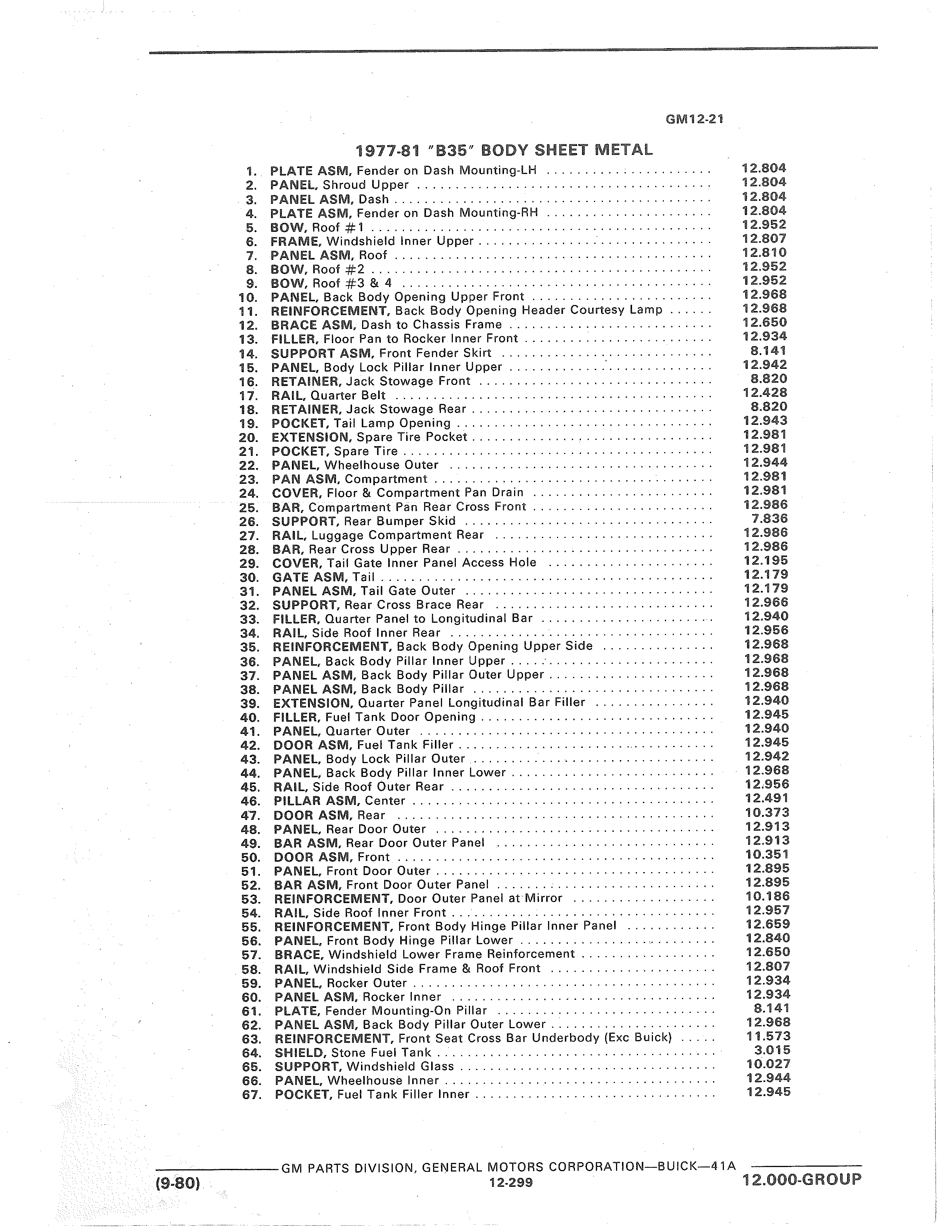

GM12 21 1977 81 B35 BODY SHEET METAL V 1 PLATE ASM Fender on Dash I lounting LH 12 804 2 PANEL Shroud Upper 12 804 3 PANEL ASM Dash 12 804 4 PLATE ASM Fender on Dash Mounting RH 12 804 5 BOW Roof 1 12 952 6 FRAME Windshield Inner Upper 12 807 y 7 PANEL ASM Roof 12 810 8 BOW Roof 2 12 952 9 BOW Roof 3 4 12 952 10 PANEL Back Body Opening Upper Front 12 968 V 11 REINFORCEMENT Back Body Opening Header Courtesy Lamp 12 968 12 BRACE ASM Dash to Chassis Frame 12 650 13 FILLER Floor Pan to Rocker Inner Front 12 934 14 SUPPORT ASM Front Fender Skirt 8 141 V 15 PANEL Body Lock Pillar Inner Upper 12 942 16 RETAINER Jack Stowage Front 8 820 17 RAIL Quarter Belt 12 428 18 RETAINER Jack Stowage Rear 8 820 19 POCKET Tail Lamp Opening 12 943 20 EXTENSION Spare Tire Pocket 12 981 21 POCKET Spare Tire 12 981 l 22 PANEL Wheelhouse Outer 12 944 23 PAN ASM Compartment 12 981 24 COVER Floor Compartment Pan Drain 12 981 25 BAR Compartment Pan Rear Cross Front 12 986 26 SUPPORT Rear Bumper Skid 7 836 27 RAIL Luggage Compartment Rear 12 986 28 BAR Rear Cross Upper Rear 12 986 29 COVER Tail Gate Inner Panel Access Hole 12 195 30 GATE ASM Tail 12 179 31 PANEL ASM Tail Gate Outer 12 179 32 SUPPORT Rear Cross Brace Rear 12 966 33 FILLER Quarter Panel to Longitudinal Bar 12 940 I 34 RAIL Side Roof Inner Rear 12 956 V 35 REINFORCEMENT Back Body Opening Upper Side 12 968 36 PANEL Back Body Pillar Inner Upper 12 968 V V 37 PANEL ASM Back Body Pillar Outer Upper 12 968 38 PANEL ASM Back Body Pillar 12 968 39 EXTENSION Ouarter Panel Longitudinal Bar Filler 12 940 40 FILLER Fuel Tank Door Opening 12 945 41 PANEL Quarter Outer 12 940 42 DOOR ASM Fuel Tank Filler 12 945 43 PANEL Body Lock Pillar Outer 12 942 44 PANEL Back Body Pillar Inner Lower 12 968 g 45 RAIL Side Roof Outer Rear 12 956 1 46 PILLAR ASM Center 12 491 g 47 DOOR ASM Rear 10 373 I 48 PANEL Rear Door Outer 12 913 49 BAR ASM Rear Door Outer Panel 12 913 j 50 DOOR ASM Front 10 351 V 51 PANEL Front Door Outer 12 895 52 BAR ASM Front Door Outer Panel 12 895 53 REINFORCEMENT Door Outer Panel at Mirror 10 186 54 RAIL Side Roof Inner Front 12 957 55 REINFORCEMENT Front Body Hinge Pillar Inner Panel 12 659 j V 56 PANEL Front Body Hinge Pillar Lower 12 840 V 57 BRACE Windshield Lower Frame Reinforcement 12 650 5 58 RAIL Windshield Side Frame Roof Front 12 807 I 59 PANEL Rocker Outer 12 934 V y 60 PANEL ASM Rocker Inner 12 934 61 PLATE Fender Mounting On Pillar 8 141 Y 62 PANEL ASM Back Body Pillar Outer Lower 12 968 i 63 REINFORCEMENT Front Seat Cross Bar Underbody Exc Buick 11 573 V i 64 SHIELD Stone Fuel Tank 3 015 I 65 SUPPORT Windshield Glass 10 027 66 PANEL Wheelhouse Inner 12 944 67 POCKET Fuel Tank Filler Inner 12 945 I I GlVl PARTS DIVISION GENERAL MOTORS CORPORATlON BUICK 41A g 9 80 V 12 299 12 000 GROUP I
