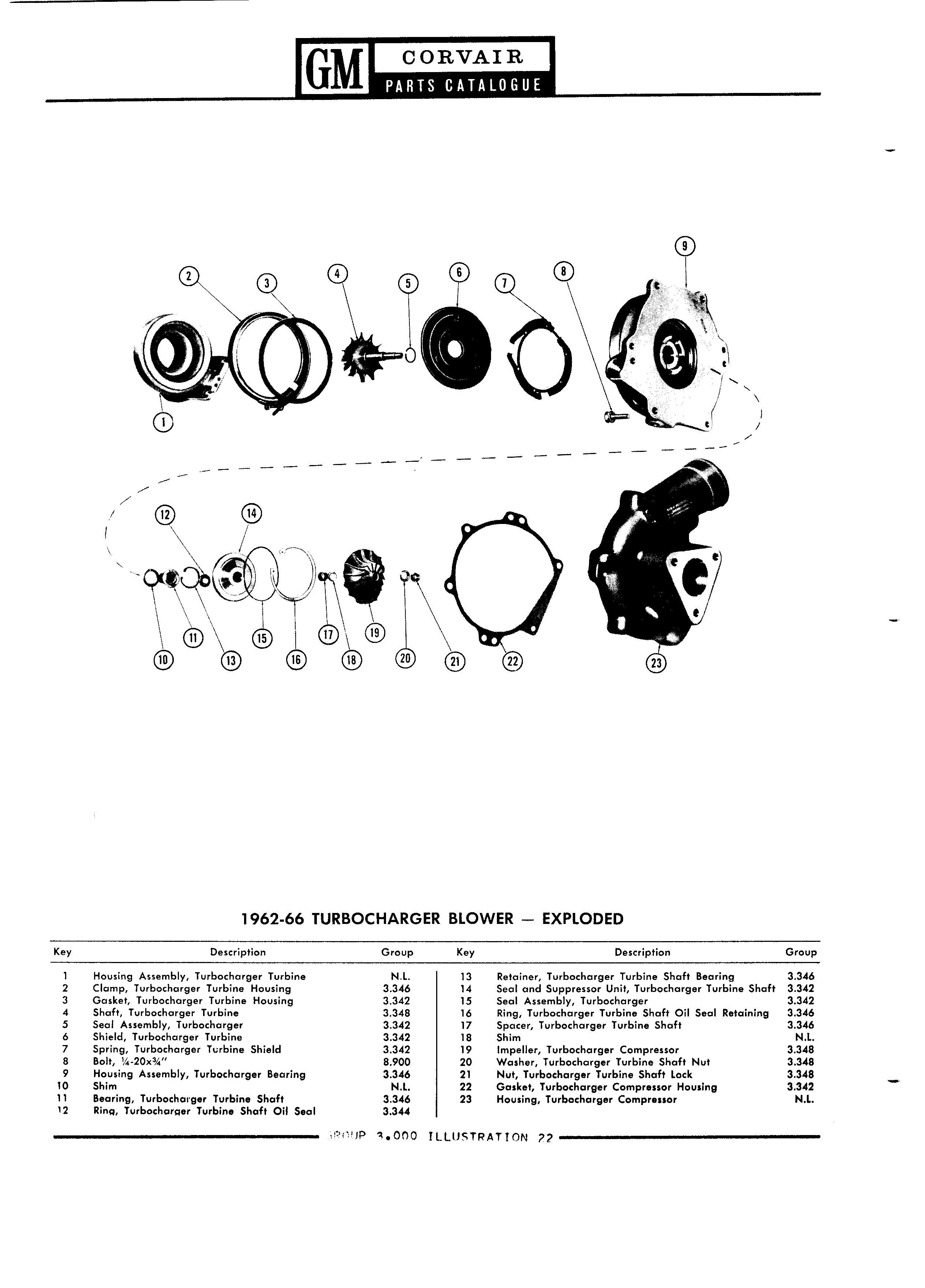

PARTS CATALOGUE j V TT A it 1 T ji 1 e f V x i I I O T A l t V 0 T i 9 V T 2 A A 5R i I gl I t s l T 2 C x 4 T l w U i 1962 66 TURBOCHARGER BLOWER EXPLODED Key Description Group Key Description Group I Housing Assembly Turbocharger Turbine N L 13 Retainer Turbocharger Turbine Shaft Bearing 3 346 2 Clamp Turbocharger Turbine Housing 3 346 14 Seal and Suppressor Unit Turbocharger Turbine Shaft 3 342 3 Gasket Turbocharger Turbine Housing 3 342 l5 Seal Assembly Turbocharger 3 342 4 Shaft Turbocharger Turbine 3 348 I6 Ring Turbocharger Turbine Shaft Oil Seal Retaining 3 346 5 Seal Assembly Turbocharger 3 342 I7 Spacer Turbocharger Turbine Shaft 3 346 6 Shield Turbocharger Turbine 3 342 T8 Shim N l 7 Spring Turbocharger Turbine Shield 3 342 l9 lmpeller Turbocharger Compressor 3 348 8 Bolt W 20x 8 900 20 Washer Turbocharger Turbine Shaft Nut 3 348 9 Housing Assembly Turbocharger Bearing 3 346 21 Nut Turbocharger Turbine Shaft Lock 3 348 l0 Shim N L 22 Gasket Turbocharger Compressor Housing 3 342 ii Bearing Turbochargar Turbine Shaft 3 346 23 Housing Turbocharger Compressor N L T2 Rinq Turbocharaer Turbine Shaft Oil Seal 3 344 TWMP 1 000 TLLUSTRATTON 72
