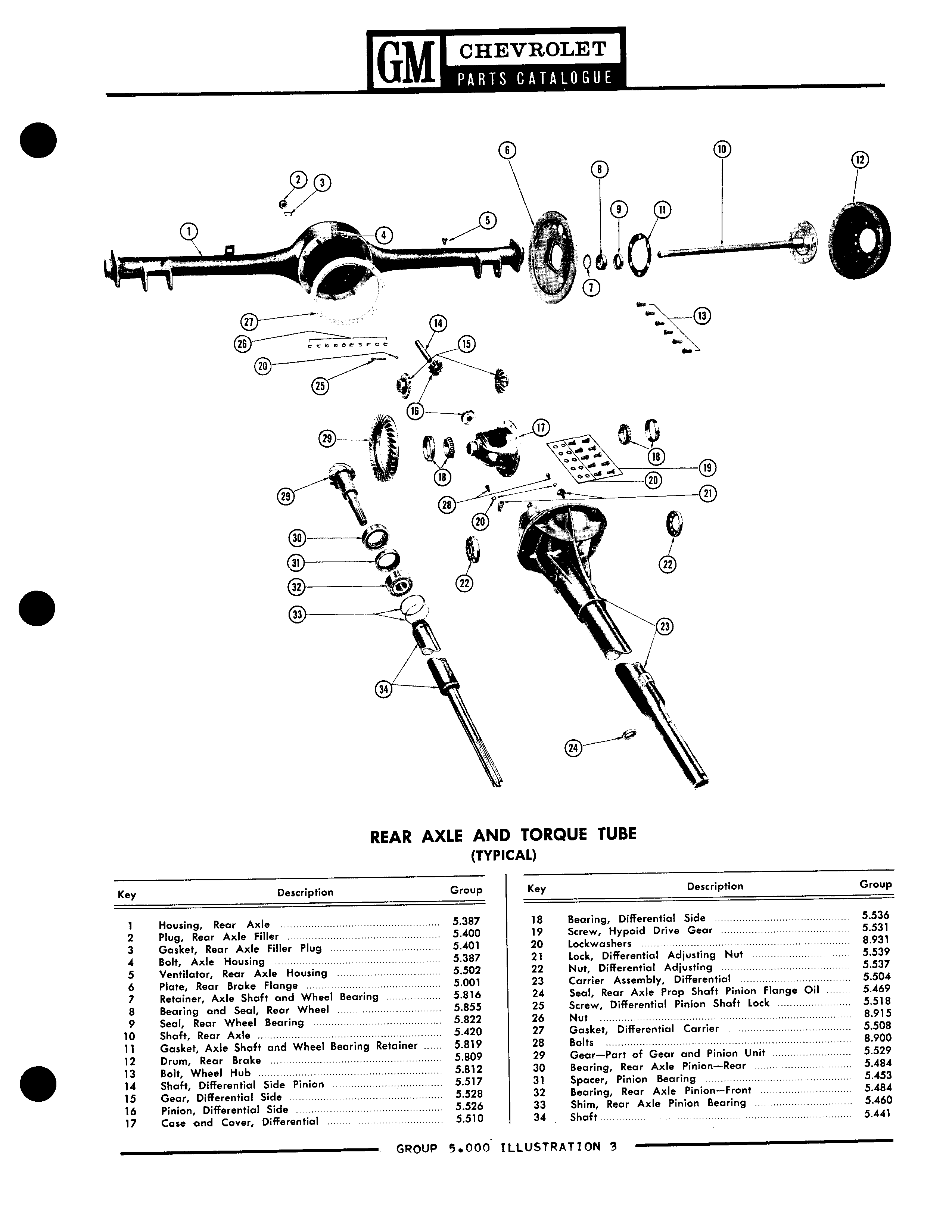

GM CHEVROLET lo O 2 i 11 9 if la 26 e rrce v 20 25 r 16 v e 11 29 v S s w 18 Y 29 30 t j 10 31 v i 12 22 33 23 s 34 24 REAR AXLE AND TORQUE TUBE TYPICAL Key Description Group Key Description Group 1 Housing Rear Axle 5 387 18 Bearing Differential Side 5 536 2 Plug Rear Axle Filler 5 400 19 Screw Hypoid Drive Gear 5 531 3 Gasket Rear Axle Filler Plug 5 401 20 Lockwashers 8 931 4 Bolt Axle Housing 5 387 21 Lock Differential Adjusting Nut 5 539 5 Ventilator Rear Axle Housing 5 502 22 Nut Differential Adjusting 5 537 6 Plate Rear Brake Flange 5 001 23 Carrier Assembly Differential 5 504 7 Retainer Axle Shaft and Wheel Bearing 5 816 24 Seal Rear Axle Prop Shaft Pinion Flange Oil 5 469 8 Bearing and Seal Rear Wheel 5 855 25 Screw Differential Pinion Shaft Lock 5 518 9 Seal Rear Wheel Bearing 5 822 26 Nut 8 915 10 Shaft Rear Axle 5 420 27 Gasket Differential Carrier 5 508 11 Gasket Axle Shaft and Wheel Bearing Retainer 5 819 28 Bolts 8 900 12 Drum Rear Brake 5 809 29 Gear Part of Gear and Pinion Unit 5 529 13 Bolt Wheel Hub 5 812 30 Bearing Rear Axle Pinion Rear 5 484 14 Shaft Differential Side Pinion 5 517 31 Spacer Pinion Bearing 5 453 15 Gear Differential Side 5 528 32 Bearing Rear Axle Pinion Front 5 484 16 Pinion Differential Side 5 526 33 Shim Rear Axle Pinion Bearing 5 460 17 Case and Cover Differential 5 510 34 Shaft 5 441
