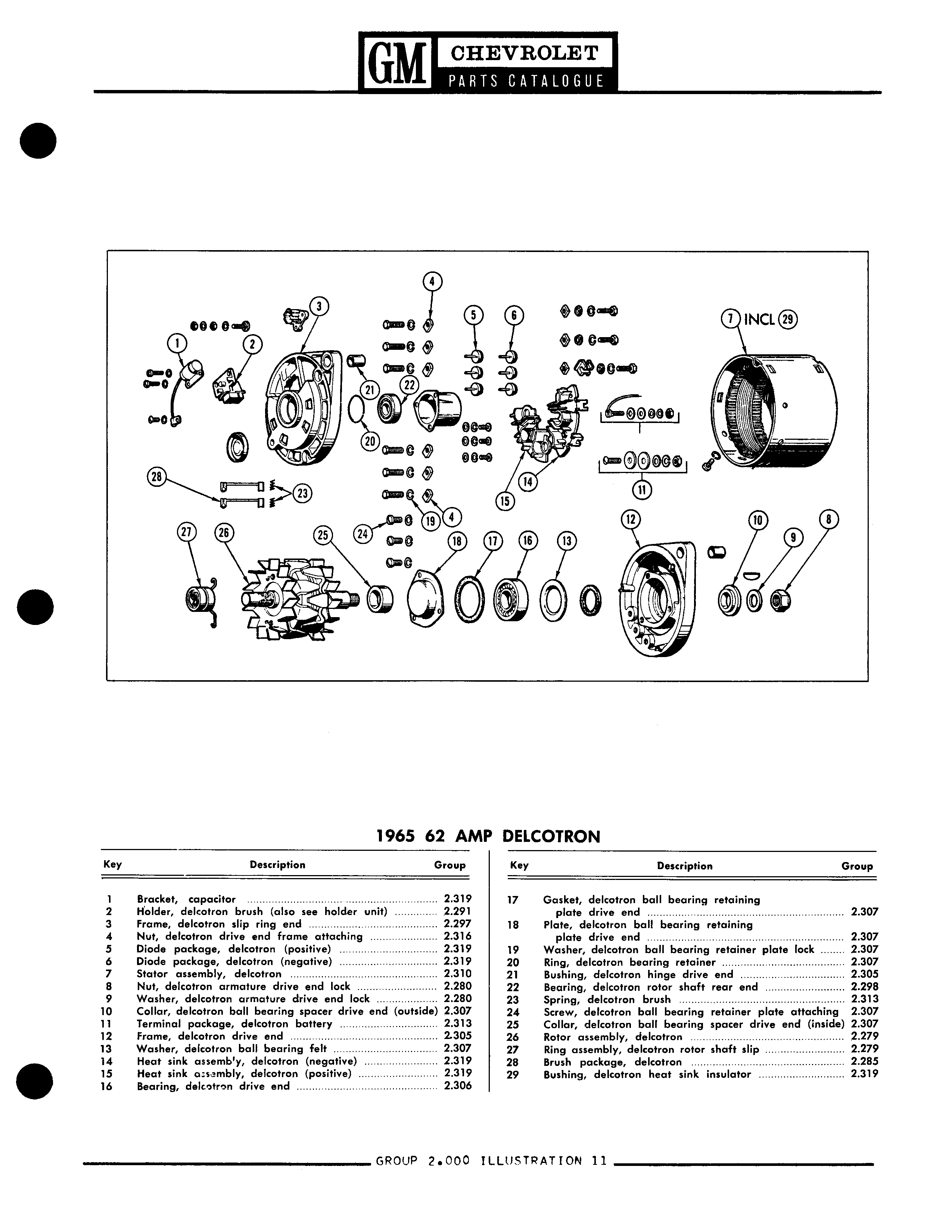

GMI CHEVROLET 4 3 o 5 6 7 INCL 29 1 2 aow Oh0 9 21 22 m p coo m 0 i I v o O 20 28 23 15 14 11 19 4 12 10 8 21 26 25 24 QM0 18 11 16 13 0 v o a 1965 62 AMP DELCOTRON Key Description Group Key Description Group 1 Bracket capacitor 2 319 17 Gasket delcotron ball bearing retaining 2 Holder delcotron brush also see holder unit 2 291 plate drive end 2 307 3 Frame delcotron slip ring end 2 297 18 Plate delcotron ball bearing retaining 4 Nut delcotron drive end frame attaching 2 316 plate drive end 2 307 5 Diode package delcotron positive 2 319 19 Washer delcotron ball bearing retainer plate lock 2 307 6 Diode package delcoTron negative 2 319 20 Ring bearing retainer 9 2 307 7 Stator assembly delcotron 2 310 21 Bushing delcotron hinge drive end 2 305 8 Nut delcotron armature drive end lock 2 280 22 Bearing delcoTron rotor shaft rear end 2 298 9 Washer delcotron armature drive end lock 2 280 23 Spring delcotron brush 2 313 10 Collar delcotron ball bearing spacer drive end outside 2 307 24 Screw delcotron ball bearing retainer plate attaching 2 307 11 Terminal package delcotron battery 2 313 25 Collar delcotron ball bearing spacer drive end inside 2 307 12 Frame delcotron drive end 2305 26 Rotor assembly 2 279 13 Washer de cotron ball bearing felt 2 307 27 Ring assembly delcotron rotor shaft slip 2 279 14 Heat sink assemb y delcotron negative 2 319 yg Brush package delcotron 2 285 15 Heat sink aaambly delcotron positive 2 319 29 Bushing delcotron heat sink insulator 2 319 16 Bearing delcotron drive end 2 306
