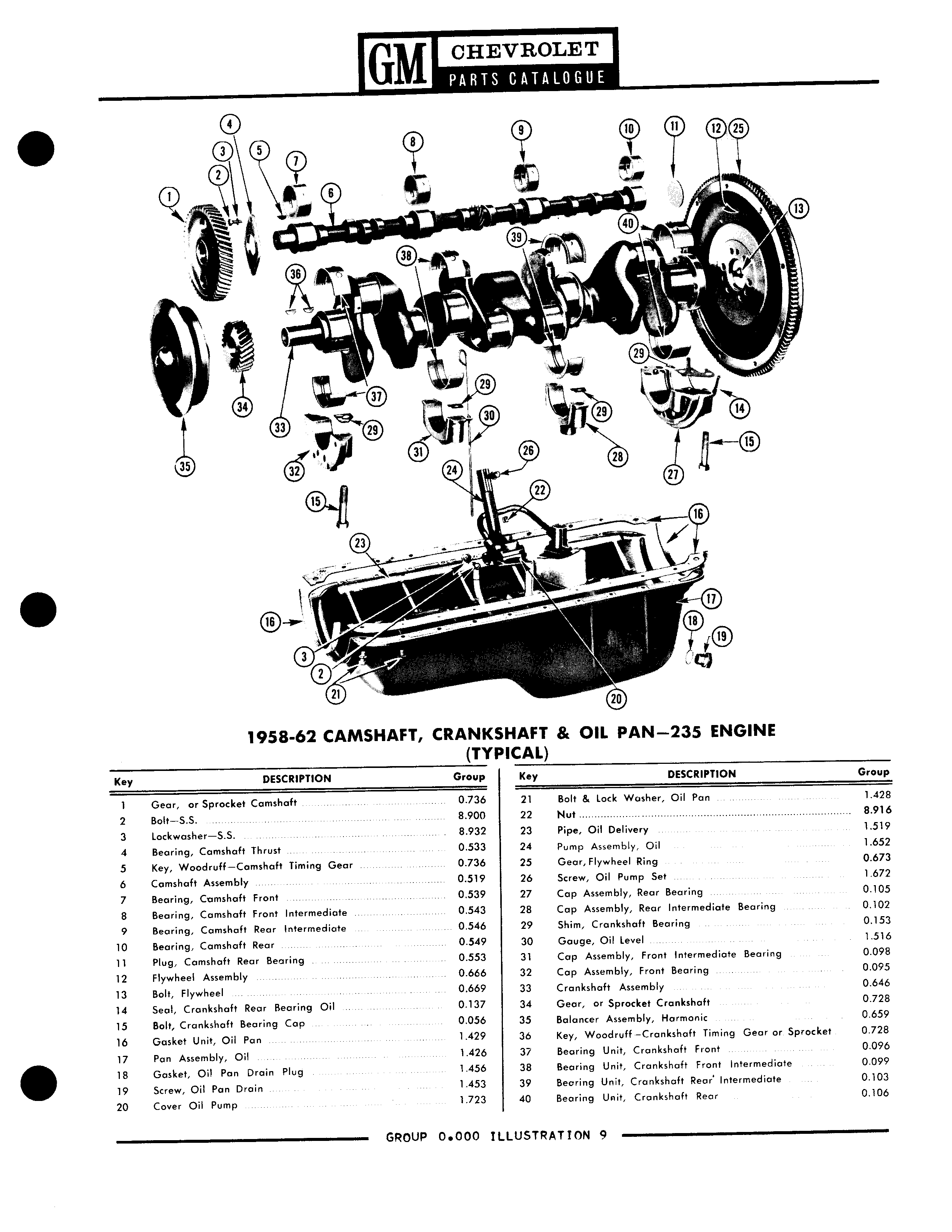

GM CHEVROLET v 9 10 il 12 25 5 B 1 1 6 39 40 1r 38 O 36 29 34 37 iI 29 I 33 30 29 v 31 15 35 32 24 1 26 28 15 22 16 d 11 18 3 21 20 1958 62 CAMSHAFT CRANKSHAFT OIL PAN 235 ENGINE TYPICAL Key DESCRIPTION Group Key DESCRIPTION Group 1 Gear or Sprocket Camshaft 0 736 21 Bolt Lock Washer Oil Pan 1 428 2 Bolt S S 8 900 22 Nut 8 916 3 Lockwasher S S 8 932 23 Pipe Oil Delivery 1 519 4 Bearing Camshaft Thrust 0 533 24 Pump Assembly Oil 1 652 5 Key Woodruff Camshaft Timing Gear 0 736 25 Gear Flywheel Ring 0 673 b Camshaft Assembly 0 519 26 Screw Oil Pump Set 1 672 7 Bearing Camshaft Front 0 539 27 Cap Assembly Rear Bearing 0 105 8 Bearing Camshaft Front Intermediate 0 543 28 Cap Assembly Rear Intermediate Bearing 0 102 9 Bearing Camshaft Rear Intermediate 0 546 29 Shim Crankshaft Bearing 0 153 10 Bearing Camshaft Rear 0 549 30 Gauge Oil Level 1 516 11 Plug Camshaft Rear Bearing 0 553 31 Cap Assembly Front Intermediate Bearing 0 098 12 Flywheel Assembly 0 666 32 Cap Assembly Front Bearing 0 095 13 Bolt Flywheel 0 669 33 Crankshaft Assembly 0 646 14 Seal Crankshaft Rear Bearing Oil 0 137 34 Gear or Sprocket Crankshaft 0 728 15 Bolt Crankshaft Bearing Cap 0 056 35 Balancer Assembly Harmonic 0 659 16 Gasket Unit Oil Pan 1 429 36 Key Woodruff Crankshaft Timing Gear or Sprocket 0 728 17 Pan Assembly Oil 1 426 37 Bearing Unit Crankshaft Front 0 096 18 Gasket Oil Pan Drain Plug 1 456 38 Bearing Unit Crankshaft Front Intermediate 0 099 79 Screw Oil Pan Drain 1 453 39 Bearing Unit Crankshaft Rear Intermediate 0 103 20 Cover Oil Pump 1 723 40 Bearing Unit Crankshaft Rear 0 106 r onoo n nnn m t mcTOeTrnu o
