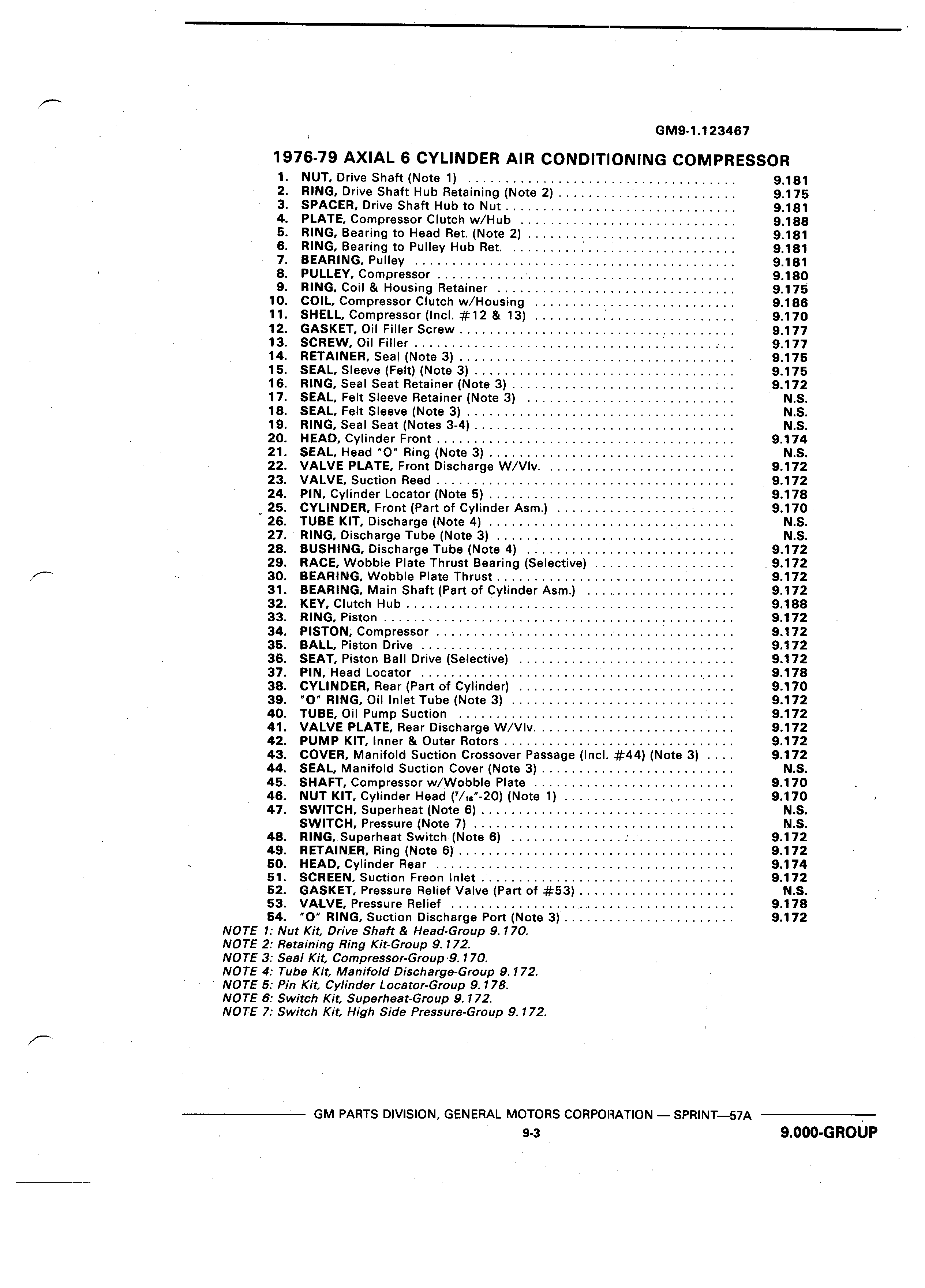

A GM9 1 123467 1976 79 AXIAL 6 CYLINDER AIR CONDIT lONING COMPRESSOR 1 NUT Drive Shaft Note 1 9 181 2 RING Drive Shaft Hub Retaining Note 2 P 9 175 3 SPACER Drive Shaft Hub to Nut 9 181 V 4 PLATE Compressor Clutch w Hub 9 188 5 RING Bearing to Head Ret Note 2 9 181 I 6 RING Bearing to Pulley Hub Ret V 9 181 7 BEARING Pulley 9 181 I 8 PULLEY Compressor 9 180 9 RING Coil Housing Retainer 9 175 10 COIL Compressor Clutch w Housing 9 186 11 SHELL Compressor Incl 12 13 9 170 12 GASKET Oil Filler Screw 9 177 13 SCREW Oil Filler 9 177 V 14 RETAINER Seal Note 3 9 175 15 SEAL Sleeve Felt Note 3 9 175 16 RING Seal Seat Retainer Note 3 9 172 17 SEAL Felt Sleeve Retainer Note 3 I N S 18 SEAL Felt Sleeve Note 3 N S 19 RING Seal Seat Notes 3 4 N S 20 HEAD Cylinder Front 9 174 21 SEAL Head O Ring Note 3 N S 22 VALVE PLATE Front Discharge W Vlv 9 172 23 VALVE Suction Reed 9 172 24 PIN Cylinder Locator Note 5 9 178 A 25 CYLINDER Front Part of Cylinder Asm 9 170 26 TUBE KIT Discharge Note 4 N S 27 RING Discharge Tube Note 3 N S 28 BUSHING Discharge Tube Note 4 9 172 29 RACE Wobble Plate Thrust Bearing Selective 9 172 V 30 BEARING Wobble Plate Thrust Q 9 172 31 BEARING Main Shaft Part of Cylinder Asm 9 172 32 KEY Clutch Hub 9 188 33 RING Piston 9 172 34 PISTON Compressor V Q 9 172 35 BALL Piston Drive 9 172 36 SEAT Piston Ball Drive Selective 9 172 37 PIN Head Locator 9 178 38 CYLINDER Rear Part of Cylinder 9 170 39 O RING Oil Inlet Tube Note 3 9 172 I 40 TUBE Oil Pump Suction 9 172 41 VALVE PLATE Rear Discharge W Vlv 9 172 42 PUMP KIT Inner Outer Rotors r 9 172 V 43 COVER Manifold Suction Crossover Passage Incl 44 Note 3 9 172 44 SEAL Manifold Suction Cover Note 3 N S 45 SHAFT Compressor w Wobble Plate 9 170 46 NUT KIT Cylinder Head i 20 Note 1 9 170 V 47 SWITCH Superheat Note 6 N S SWITCH Pressure Note 7 N S 48 RING Superheat Switch Note 6 9 172 49 RETAINER Ring Note 6 9 172 50 HEAD Cylinder Rear 9 174 51 SCREEN Suction Freon Inlet 9 172 52 GASKET Pressure Relief Valve Part of 53 N S T 53 VALVE Pressure Relief 9 178 I 54 O RING Suction Discharge Port Note 3 9 172 NOTE 1 Nut Kit Drive Shaft Head Group 9 170 NOTE 2 Retaining Ring Kit Group 9 172 NOTE 3 Seal Kit Compressor Group 9 170 NOTE 4 Tube Kit Manifold Discharge Group 9 172 V NOTE 5 Pin Kit Cylinder Locator Group 9 178 NOTE 6 Switch Kit Superheat Group 9 172 NOTE 7 Switch Kit High Side Pressure Group 9 172 GM PARTS DIVISION GENERAL MOTORS CORPORATION SPR NT 57A 1 s 3 9 000 GROUP
