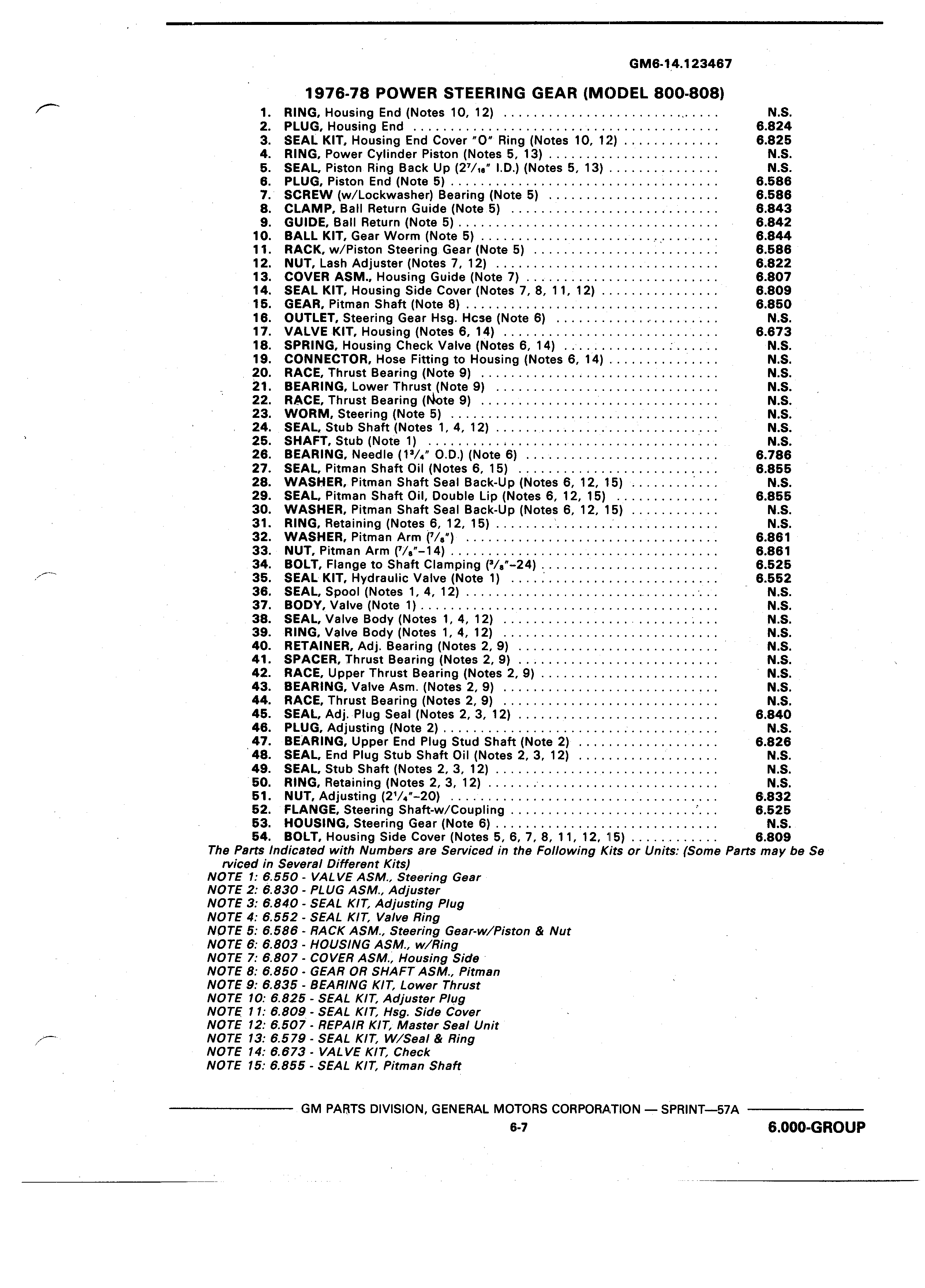

GM6 14 123467 1976 78 POWER STEERING GEAR MODEL 800 808 1 RING Housing End Notes 10 12 N S 2 PLUG Housing End 6 824 3 SEAL KIT Housing End Cover O Ring Notes 10 12 6 825 4 RING Power Cylinder Piston Notes 5 13 N S 5 SEAL Piston Ring Back Up 2 I D Notes 5 13 N S 6 PLUG Piston End Note 5 6 586 7 SCREW w Lockwasher Bearing Note 5 6 586 A 8 CLAMP Ball Return Guide Note 5 6 843 9 GUIDE Ball Return Note 5 6 842 10 BALL KIT Gear Worm Note 5 6 844 11 RACK w Piston Steering Gear Note 5 6 586 12 NUT Lash Adjuster Notes 7 12 6 822 13 COVER ASM Housing Guide Note 7 6 807 14 SEAL KIT Housing Side Cover Notes 7 8 1 1 12 6 809 15 GEAR Pitman Shaft Note 8 6 850 16 OUTLET Steering Gear Hsg Hose Note 6 N S 17 VALVE KIT Housing Notes 6 14 6 673 18 SPRING Housing Check Valve Notes 6 14 N S 19 CONNECTOR Hose Fitting to Housing Notes 6 14 N S 20 RACE Thrust Bearing Note 9 N S i 21 BEARING Lower Thrust Note 9 N S V 22 RACE Thrust Bearing Note 9 N S 23 WORM Steering Note 5 N S 24 SEAL Stub Shaft Notes 1 4 12 N S 25 SHAFT Stub Note 1 N S 26 BEARING Needle 1 4 0 D Note 6 6 786 i 27 SEAL Pitman Shaft Oil Notes 6 15 6 855 28 WASHER Pitman Shaft Seal Back Up Notes 6 12 15 N S 29 SEAL Pitman Shaft Oil Double Lip Notes 6 12 15 6 855 30 WASHER Pitman Shaft Seal Back Up Notes 6 12 15 N S 31 RING Retaining Notes 6 12 15 N S 32 WASHER Pitman Arm 6 861 33 NUT Pitman Arm 14 6 861 34 BOLT Flange to Shaft Clamping 24 6 525 35 SEAL KIT Hydraulic Valve Note 1 6 552 36 SEAL Spool Notes 1 4 12 4 V N S 37 BODY Valve Note 1 N S 38 SEAL Valve Body Notes 1 4 12 N S 39 RING Valve Body Notes 1 4 12 N S 40 RETAINER Adj Bearing Notes 2 9 I N S 41 SPACER Thrust Bearing Notes 2 9 N S 42 RACE Upper Thrust Bearing Notes 2 9 N S 43 BEARING Valve Asm Notes 2 9 N S 44 RACE Thrust Bearing Notes 2 9 N S 45 SEAL Adj Plug Seal Notes 2 3 12 6 840 46 PLUG Adjusting Note 2 N S 47 BEARING Upper End Plug Stud Shaft Note 2 6 826 48 SEAL End Plug Stub Shaft Oil Notes 2 3 12 N S 49 SEAL Stub Shaft Notes 2 3 12 N S 50 RING Retaining Notes 2 3 12 N S 51 NUT Adjusting 2 20 6 832 52 FLANGE Steering Shaft w Coupling 6 525 53 HOUSING Steering Gear Note 6 N S 54 BOLT Housing Side Cover Notes 5 6 7 8 11 12 15 6 809 The Parts Indicated with Numbers are Serviced in the Following Kits or Units Some Parts may be Se rviced in Several Different Kits A NOTE 1 6 550 VAL VE ASM Steering Gear NOTE 2 6 830 PLUG ASM Adjuster NOTE 3 6 84 0 SEAL KIIZ Adjusting Plug NOTE 4 6 552 SEAL KITZ Valve Ring NOTE 5 6 586 RACK ASM Steering Gear w Piston Nut NOTE 6 6 803 HOUSING ASM w Ring NOTE 7 6 807 COVER ASM Housing Side NOTE 8 6 850 GEAR OR SHAFT ASM Pitman NOTE 9 6 835 BEARING KIT Lower Thrust NOTE 10 6 825 SEAL Kl7j Adjuster Plug NOTE 11 6 809 SEAL KITZ Hsg Side Cover NOTE 12 6 507 REPAIR Kllj Master Seal Unit NOTE 13 6 579 SEAL Kl7j W Seal Ring NOTE 14 6 673 VALVE K TZ Check NOTE 15 6 855 SEAL Kl7j Pitman Shaft GM PARTS DIVISION GENERAL MOTORS CORPORATION SPRINT 57A 6 7 6 000 GROUP
