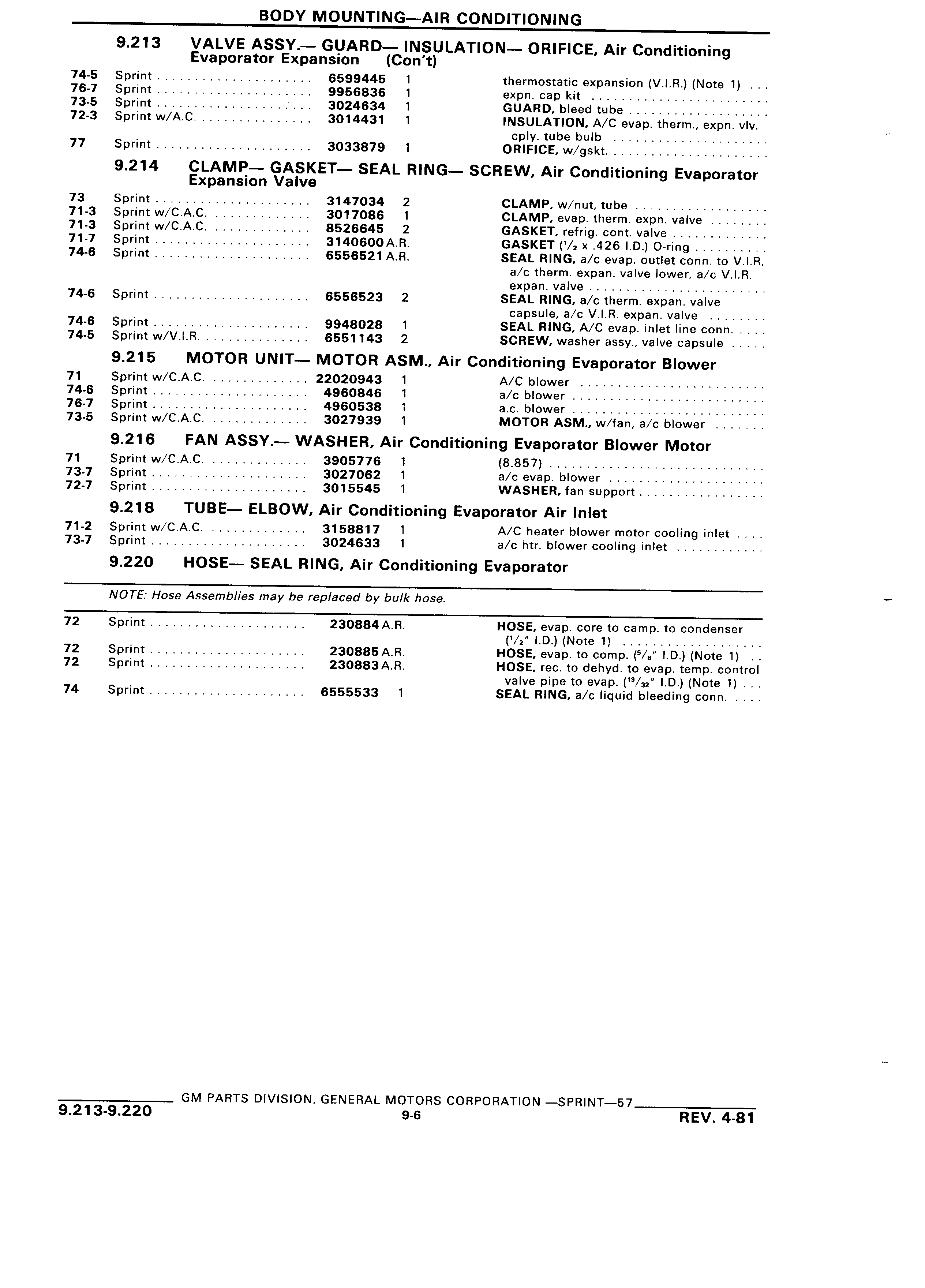

BODY MOUNTING AIR CONDITIONING 9 213 VALVE ASSY GUARD INSULATION ORIFICE Air Conditioning Evaporator Expansion Con t 74 5 Sprint 6599445 1 thermostatic expansion V l R Note 1 76 7 Sprint 9956836 1 expn cap kit 73 5 Sprint 3024634 1 GUARD bleed tube 72 3 Sprint w A C 3014431 1 INSULATION A C evap therm expn vlv cply tube bulb 77 Sprint 3033879 1 ORIFICE w gskt 9 214 CLAMFQ GASKET SEAL RING SCREW Air Conditioning Evaporator Expansion Valve 73 Sprint 3147034 2 CLAMP w nut tube 71 3 Sprint w C A C 3017086 1 CLAMP evap therm expn valve 71 3 Sprint w C A C 8526645 2 GASKET refrig cont valve 71 7 Sprint 3140600A R GASKET 2 x 426 I D O ring 74 6 Sprint 6556521 A R SEAL RING a c evap outlet conn to V R a c therm expan valve lower a c V l R expan valve 74 6 Sprint 6556523 2 SEAL RING a c therm expan valve capsule a c V l R expan valve 74 6 Sprint 9948028 1 SEAL RING A C evap inlet line conn 74 5 Sprint w V I R 6551143 2 SCREW washer assy valve capsule 9 215 MOTOR UNIT MOTOR ASM Air Conditioning Evaporator Blower 71 Sprint w C A C 22020943 1 A C blower 74 6 Sprint 4960846 1 a c blower 76 7 Sprint 4960538 1 a c blower 73 5 Sprint w C A C 3027939 1 MOTOR ASM w fan a c blower 9 216 FAN ASSY WASHER Air Conditioning Evaporator Blower Motor 71 Sprint w C A C 3905776 1 8 857 73 7 Sprint 3027062 1 a c evap blower 72 7 Sprint 3015545 1 WASHER fan support 9 218 TUBE ELBOW Air Conditioning Evaporator Air Inlet 71 2 Sprint w C A C 3158817 1 A C heater blower motor cooling inlet 73 7 Sprint 3024633 1 a c htr blower cooling inlet 9 220 HOSE SEAL RING Air Conditioning Evaporator NOTE Hose Assemblies may be replaced by bulk hose 72 Sprint 230884A R HOSE evap core to camp to condenser I D Note 1 72 Sprint 230885 A R HOSE evap to comp 5 B l D Note 1 72 Sprint 230883A R HOSE rec to dehyd to evap temp control valve pipe to evap gz I D Note 1 74 Sprint 6555533 1 SEAL RING a c liquid bleeding conn i GM PARTS DIVISION GENERAL MOTORS CORPORATION SPRlNT 57 9 21 3 9 220 9 6 REV 4 81
