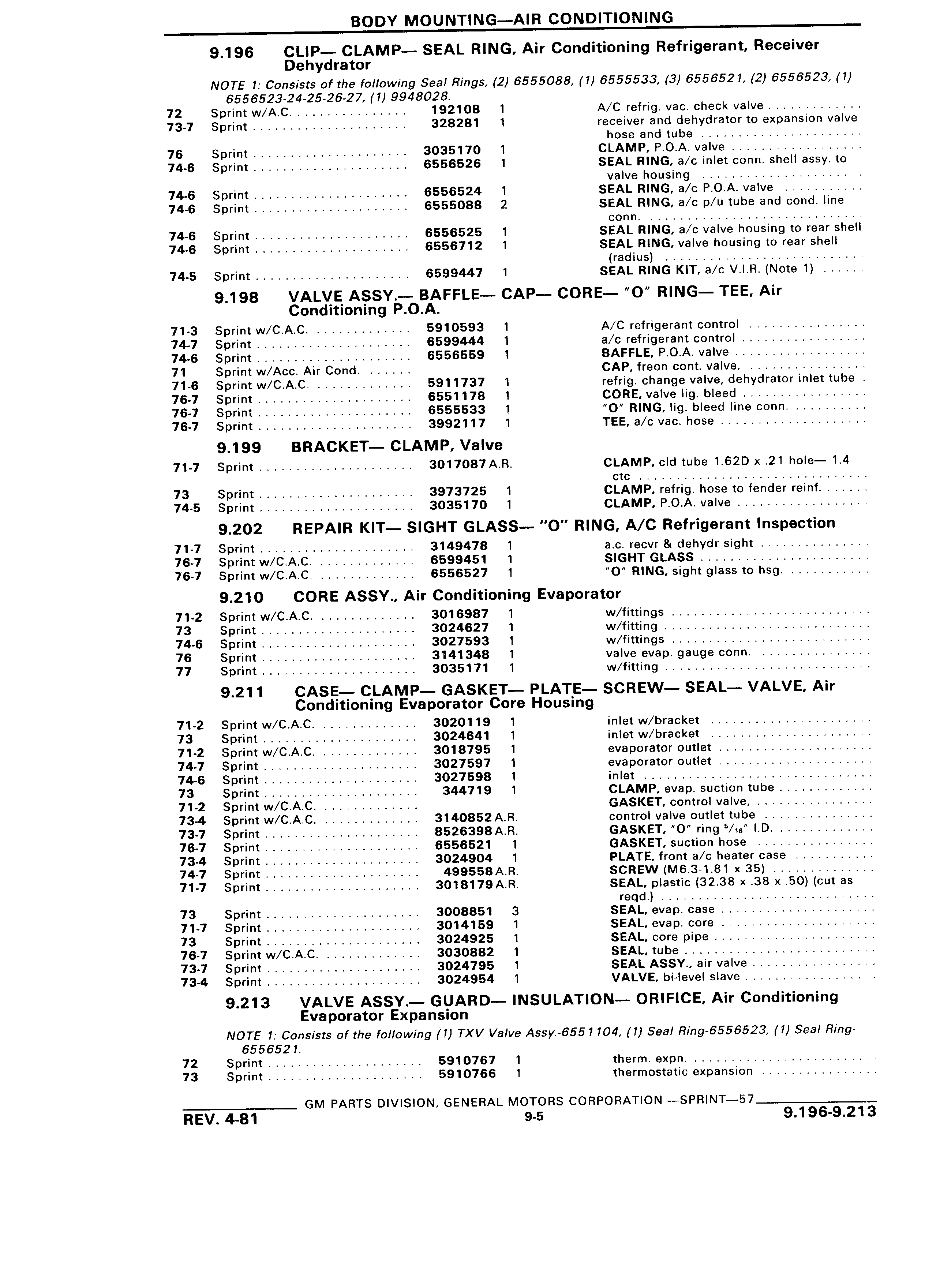

BODY MOUNTING AIR CONDITIONING 9 196 CLIP CLAMP SEAL RING Air Conditioning Refrigerant Receiver Dehydrator NOTE 1 Consists of the fol owing Seal Rings 2 6555088 1 6555533 3 6556521 2 6556523 1 6556523 24 25 26 27 1 9948028 712 Sprint w A C 192108 1 A C refrig vac check valve 73 7 Sprint 328281 1 receiver and dehydrator to expansion valve hose and tube 76 Sprint 3035170 1 CLAMP P O A valve 74 6 Sprint 6556526 1 SEAL RING a c inlet conn shell assy to valve housing 74 6 Sprint 6556524 1 SEAL RING a c P O A valve 74 6 Sprint 6555088 2 SEAL RING a c p u tube and cond line conn 74 6 Sprint 6556525 1 SEAL RING a c valve housing to rear shell 74 6 Sprint 6556712 1 SEAL RING valve housing to rear shell radius 7 4 5 Sprint 6599447 1 SEAL RING KIT a cc V l R Note 1 9 198 VALVE ASSY BAFFLE CAP CORE O RING I EE Air Conditioning P O A 71 3 Sprint w C A C 5910593 1 A C refrigerant control 74 7 Sprint 6599444 1 a c refrigerant control 74 6 Sprint 6556559 I BAFFLE P O A valve 71 Sprint w Acc Air Cond CAP freon cont valve 71 6 Sprint w C A C 5911737 1 refrig change valve dehydrator inlet tube 76 7 Sprint 6551178 1 CORE valve lig bleed 76 7 Sprint 6555533 1 O RING lig bleedl line conn 76 7 Sprint 3992117 1 TEE a c vac hose 9 199 BRACKET CILAMP Valve 71 7 Sprint 3017087 A R CLAMP cld tube 1 62D x 21 hole 1 4 ctc 73 Sprint 3973725 1 CLAMP refrig hose to fender reinf 74 5 Sprint 3035170 1 CLAMP P O A valve 9 202 REPAIR KIT SIGHT GLASS O RING A C Refrigerant Inspection 71 7 Sprint 3149478 1 a c recvr gl dehydr sight 76 7 Sprint w C A C 6599451 1 SIGH T GLASS 76 7 Sprint w C A C 6556527 1 O RING sight glass to hsg 9 210 CORE ASSY Air Conditioning Evaporator 71 2 Sprint w C A C 3016987 1 w fittings 73 Sprint 3024627 I w fitting 74 6 Sprint 3027593 1 w fittings 76 Sprint 3141348 1 valve evap gauge conn 77 Sprint 3035171 1 w fitting 9 21 1 CASE C LAN P GASKET PLAT E SCREW SEAI VALVE Air Conditioning Izvaporator Core Housing 71 2 Sprint w C A C 3020119 1 inlet w bracket 73 Sprint 3024641 1 inlet w bracket 71 2 Sprint w C A C 3018795 1 evaporator outlet 74 7 Sprint 3027597 1 evaporator outlet 74 6 Sprint 3027598 1 inlet 73 Sprint 344719 1 CLAMP evap suction tube 71 2 Sprint w C A C GASKET control valve 73 4 Sprint w C A C 3140852 A R control valve outlet tube 73 7 Sprint 8526398 A R GASKET O ring 5 IG I D 76 7 Sprint 6556521 I GASKET suction hose 73 4 Sprint 3024904 1 PLATE front a c heater case 74 7 Sprint 499558A R SCREW ll l6 3 1 81 x 35 71 7 Sprint 3018179 A R SEAL plastic 32 38 x 38 x 50 cut as reqd 73 Sprint 3008851 3 SEAL evaip case 71 7 Sprint 3014159 1 SEAL evap core 73 Sprint 3024925 1 SEAL core pipe 76 7 Sprint w C A C 3030882 l SEAL tube 73 7 Sprint 3024795 1 SEAL ASSY air valve 73 4 Sprint 3024954 1 VALVE bi level slave 9 213 VALVE ASSY GLIARD INSULATION ORIFICE Air Conditioning Evaporator Expansion NOTE 1 Consists of the fo lovving 1 TXV Va ve Assy 6551 104 1 Seal Ring 6556523 1 Seal Ring 6556521 72 Sprint 5910767 1 therm expn 73 Sprint 5910766 1 thermostatic expansion GM PARTS DIVISION GENERAL MOTORS CORPORATION SPRINT 57 REV 4 81 9 5 9 196 9 21 3
