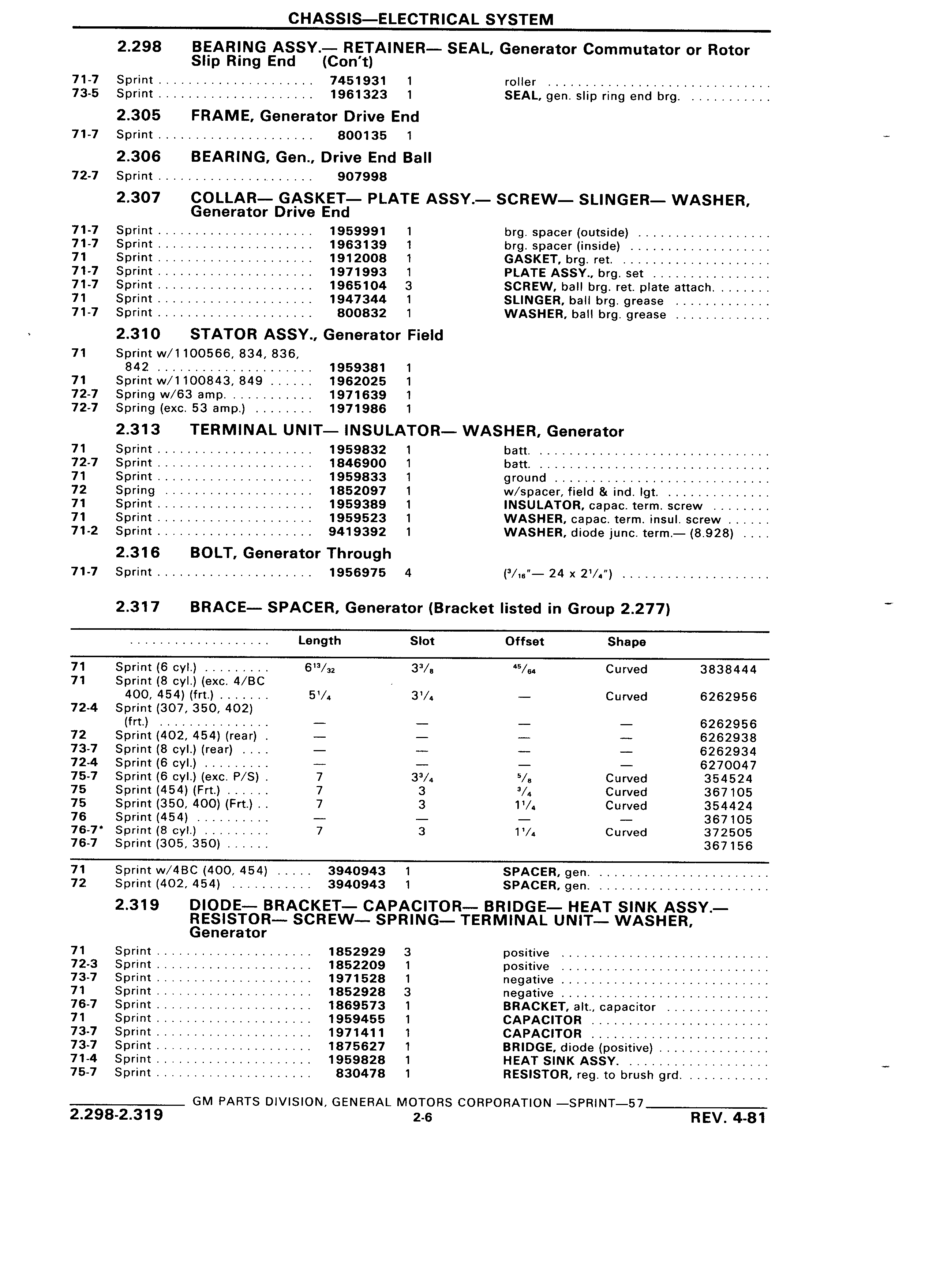

CHASSIS ELECTRICAL SYSTEM 2 298 BEARING ASSY RETAINER SEAL Generator Commutator or Rotor Slip Ring End Con t 71 7 Sprint 7451931 1 roller 73 5 Sprint 1961323 1 SEAL gen slip ring end brg 2 305 FRAME Generator Drive End 71 7 Sprint 800135 1 2 306 BEARING Gen Drive End Ball 72 7 Sprint 907998 2 307 COLLAR GASKET PLATE ASSY SCREW SLINGER WASHER Generator Drive End 71 7 Sprint 1959991 1 brg spacer outside 71 7 Sprint 1963139 1 brg spacer inside 71 Sprint 1912008 1 GASKET brg ret 71 7 Sprint 1971993 1 PLATE ASSY brg set 71 7 Sprint 1965104 3 SCREW ball brg ret plate attach 71 Sprint 1947344 1 SLINGER ball brg grease 71 7 Sprint 800832 1 WASHER ball brg grease 2 310 STATOR ASSY Generator Field 71 Sprint w 1 100566 834 836 842 1959381 1 71 Sprint w 1100843 849 1962025 1 72 7 Spring w 63 amp 1971639 1 72 7 Spring exc 53 amp 1971986 1 2 313 TERMINAL UNIT INSULATOR WASHER Generator 71 Sprint 1959832 1 batt 72 7 Sprint 1846900 1 batt 71 Sprint 1959833 1 ground 72 Spring 1852097 1 w spacer field ind lgt 71 Sprint 1959389 1 INSULATOR capac term screw 71 Sprint 1959523 I WASHER capac term insul screw 71 2 Sprint 9419392 1 WASHER diode junc term 8 928 2 316 BOLT Generator Through 71 7 Sprint 1956975 4 is 24 x 2 2 317 BRACE SPACER Generator Bracket listed in Group 2 277 Length Slot Offset Shape 71 Sprint 6 cyl 6 32 3 8 5 84 Curved 3838444 71 Sprint 8 cyl exc 4 BC 400 454 frt 5 4 3 4 Curved 6262956 72 4 Sprint 307 350 402 frt 6262956 72 Sprint 402 454 rear 6262938 73 7 Sprint 8 cyl rear 6262934 72 4 Sprint 6 cyl 6270047 75 7 Sprint 6 cyl exc P S 7 3 4 5 8 Curved 354524 75 Sprint 454 Frt 7 3 4 Curved 367105 75 Sprint 350 400 Frt 7 3 1 I Curved 354424 76 Sprint 454 367105 76 7 Sprint 8 cyl 7 3 1 4 Curved 372505 76 7 Sprint 305 350 367156 71 Sprint w 4BC 400 454 3940943 1 SPACER gen 72 Sprint 402 454 3940943 1 SPACER gen 2 319 DIODE BRACKET CAPACITOR BRIDGE HEAT SINK ASSY RESISTOR SCREW SPRING TERMINAL UNIT WASHER Generator 71 Sprint 1852929 3 positive 72 3 Sprint 1852209 1 positive 73 7 Sprint 1971528 1 negative 71 Sprint 1852928 3 negative 76 7 Sprint 1869573 1 BRACKET alt capacitor 71 Sprint 1959455 1 CAPACITOR 73 7 Sprint 1971411 1 CAPACITOR 73 7 Sprint 1875627 1 BRIDGE diode positive 71 4 Sprint 1959828 1 HEAT SINK ASSY 75 7 Sprint 830478 1 RESISTOR reg to brush grd GM PARTS DIVISION GENERAL MOTORS CORPORATION SPRINT 57 2 298 2 319 2 6 REV 4 81
