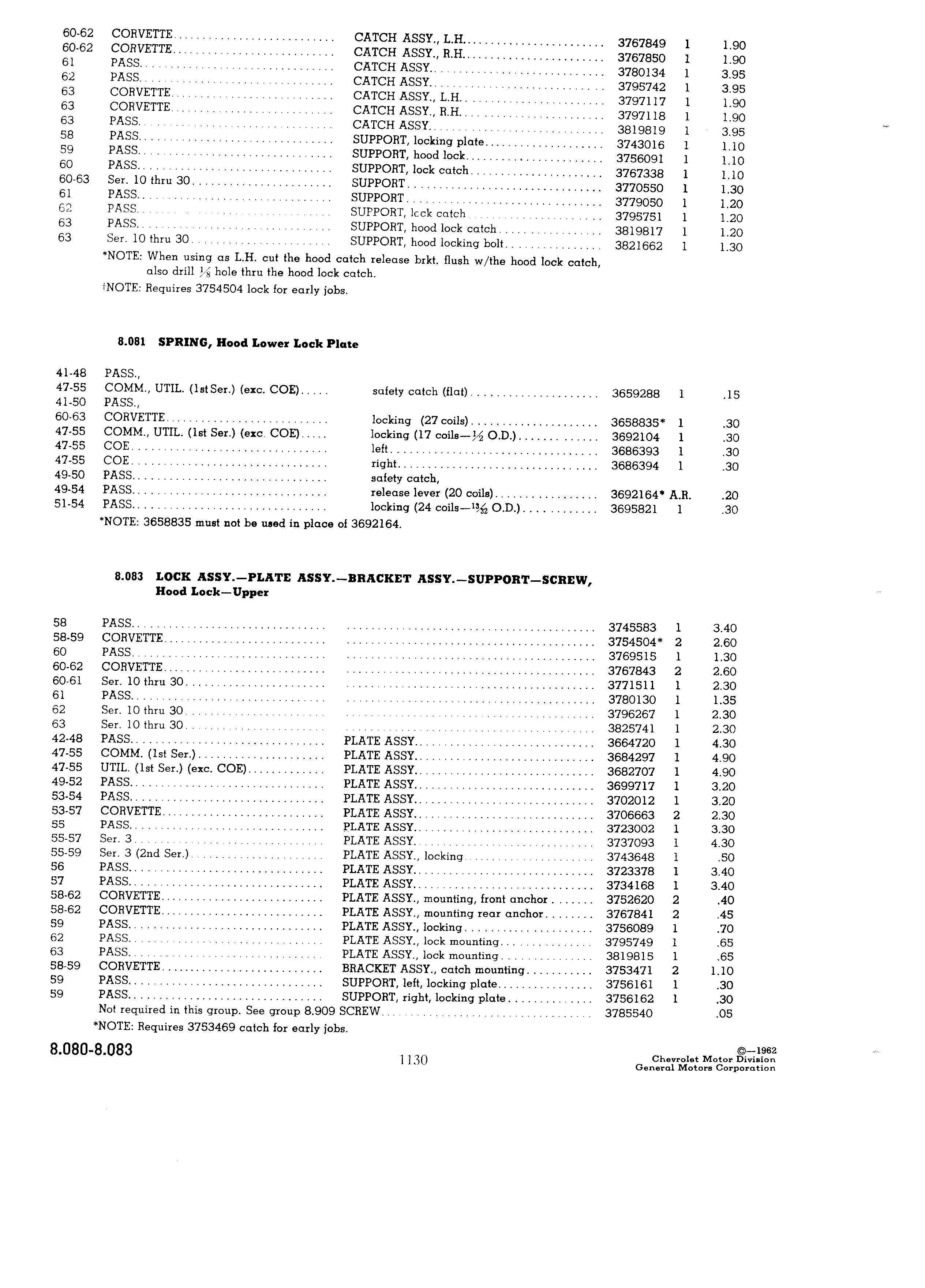

60 62 CORVETTE 4 CATCH ASSY L H 3767849 1 1 90 60 62 CORVETTE 4 4 CATCH ASSY R H 3767850 1 1 90 61 PASS CATCH ASSY 3780134 1 3 95 62 PASS CATCH ASSY 3795742 1 3 95 63 CORVETTE CATCH ASSY L H 3797117 1 1 90 63 CORVETTE CATCH ASSY R H 3797118 1 1 90 63 PASS CATCH ASSY 3819819 1 3 95 58 PASS SUPPORT locking plate 3743016 1 1 10 59 PASS SUPPORT hood lock 3756091 1 1 10 60 PASS SUPPORT lock catch 3767338 1 1 10 60 63 Ser 10 thru 30 SUPPORT 3770550 1 1 30 61 PASS SUPPORT 3779050 1 1 20 62 PASS SUPPORT lcck catch 3795751 1 1 20 63 PASS SUPPORT hood lock catch 3819817 1 1 20 63 Ser 10 thru 30 SUPPORT hood locking bolt 3821662 1 1 30 NOTE When using as L H cut the hood catch release brkt flush w the hood lock catch also drill L hole thru the hood lock catch lNOTE Requires 3754504 lock for early jobs 8 081 SPRING Hood Lowe Lock Plate 41 48 PASS 47 55 COMM UTIL lst Ser exc COE safety catch flat 3659288 1 15 41 50 PASS 60 63 CORVETTE locking 27 coils 3658835 1 30 47 55 COMM UTIL lst Ser exc COE locking 17 coils O D 3692104 1 30 47 55 COE left 3686393 1 30 47 55 COE right 3686394 1 30 49 50 PASS safety catch 49 54 PASS release lever 20 coils 3692164 A R 20 51 54 PASS locking 24 coils l O D 3695821 1 30 NOTE 3658835 must not be used in place of 3692164 8 083 LOCK ASSY PLATE ASSY BRACKET SSY SUPPORT SCREW Hood Lock Upper 58 PASS 3745583 1 3 40 58 59 CORVETTE 3754504 2 2 60 60 PASS 3769515 1 1 30 60 62 CORVETTE 3767843 2 2 60 60 61 Ser 10 thru 30 3771511 1 2 30 61 PASS 3780130 1 1 35 62 Ser 10 thru 30 M 3796267 1 2 30 63 Ser 10 thru 30 3825741 1 2 30 42 48 PASS PLATE ASSY 3664720 1 4 30 47 55 COMM lst Ser PLATE ASSY 3684297 1 4 90 47 55 UTIL lst Ser exc COE PLATE ASSY 3682707 1 4 90 49 52 PASS PLATE ASSY 3699717 1 3 20 53 54 PASS PLATE ASSY 3702012 1 3 20 53 57 CORVETTE PLATE ASSY 3706663 2 2 30 55 PASS PLATE ASSY 3723002 1 3 30 55 57 Ser 3 PLATE ASSY 3737093 1 4 30 55 59 Ser 3 2nd Ser PLATE ASSY locking 3743648 1 50 56 PASS PLATE ASSY 3723378 1 3 40 57 PASS PLATE ASSY 3734168 1 3 40 58 62 CORVETTE PLATE ASSY mounting front anchor 3752620 2 40 58 62 CORVETTE PLATE ASSY mounting rear anchor 3767841 2 45 59 PASS PLATE ASSY locking 3756089 1 70 62 PASS PLATE ASSY lock mounting 3795749 1 65 63 PASS PLATE ASSY lock mounting 3819815 1 65 58 59 CORVETTE BRACKET ASSY catch mounting 3753471 2 1 10 59 PASS SUPPORT left locking plate 3756161 1 30 59 PASS SUPPORT right locking plate 3756162 1 30 Not required in this group See group 8 909 SCREW 3785540 05 NOTE Requires 3753469 catch for early jobs 8 080 8 083 I 0 i i Mm SLE Qi General Motors Corporation
