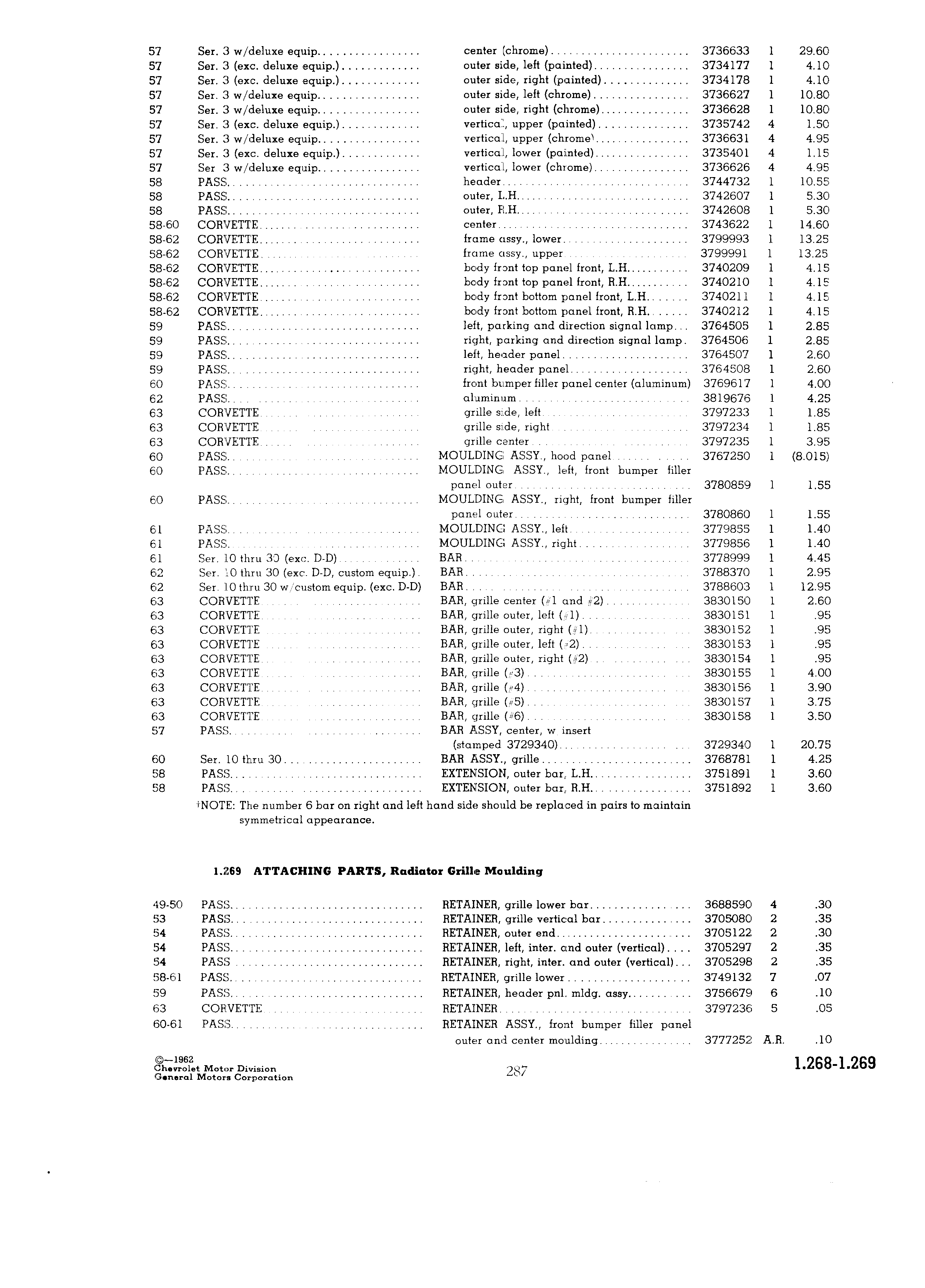

57 Ser 3 w deluxe equip center chrome 3736633 1 29 60 57 Ser 3 exc deluxe equip outer side left painted 3734177 1 4 10 57 Ser 3 exc deluxe equip outer side right painted 3734178 1 4 10 57 Ser 3 w deluxe equip cuter side left chrome 3736627 1 10 80 57 Ser 3 w deluxe equip outer side right chrome 3736628 1 10 80 57 Ser 3 exc deluxe equip vertical upper painted 3735742 4 1 50 57 Ser 3 w deluxe equip vertical upper chrome 3736631 4 4 95 57 Ser 3 exc deluxe equip r vertical lower painted 3735401 4 1 15 57 Ser 3 w deluxe equip vertical lower chrome 3736626 4 4 95 58 PASS header 3744732 1 10 55 58 PASS outer I H 3742607 1 5 30 58 PASS outer R I I 3742608 1 5 30 58 60 CORVETTE center 3743622 1 14 60 58 62 CORVETTE frame assy lower 3799993 1 13 25 58 62 CORVETTE frame cissy upper 3799991 1 13 25 58 62 CORVETTE body front tcp panel front LH 3740209 1 4 15 58 62 CORVETTE body front top panel front R I I 3740210 1 4 15 58 62 CORVETTE body front bottom panel front LH 3740211 1 4 15 58 62 CORVETTE body front bottom panel front R H 3740212 1 4 15 59 PASS left parking and direction signal lamp 3764505 1 2 85 59 PASS right parking and direction signal lamp 3764506 1 2 85 59 PASS left header panel 3764507 1 2 60 59 PASS right header panel 3764508 1 2 60 60 PASS front bumper filler panel center aluminum 3769617 1 4 00 62 PASS aluminum 3819676 1 4 25 63 CORVETTE grille s de left 3797233 1 1 85 63 CORVETTE grille side right 3797234 1 1 85 63 CORVET l E grille center 3797235 1 3 95 60 PASS MOULDINGQ ASSY hood panel 3767250 1 8 015 60 PASS MOULZDING ASSY left front bumper filler panel outer 3780859 1 1 55 60 PASS MOULCDING ASSY right front bumper filler panel outer 3780860 1 1 55 61 PASS MOULDING ASSY left 3779855 1 1 40 61 PASS MOULDING ASSY right 3779856 1 1 40 61 Ser 1 0 thru 30 exc D D BAR 3778999 1 4 45 62 Ser 10 thru 30 exc D D custom equip BAR 3788370 1 2 95 62 Ser 0 thru 30 w custom equip exc D D BAR 3788603 1 12 95 63 CORVETTE BAR grille center 1 and 3830150 1 2 60 63 CORVETTE BAR grille outer left 1 3830151 1 95 63 CORVETTE BAR grille outer right al 3830152 1 95 63 CORVETTE BAR grille outer left 2 3830153 1 95 63 CORVETTE BAR grille outer right 2 3830154 1 95 63 CORVETTE BAR grille M3 3830155 1 4 00 63 CORVETTE BAR grille e4 3830156 1 3 90 63 CORVETTE BAR grille 5 3830157 1 3 75 63 CORVETTE BAR grille 6 3830158 1 3 50 57 PASS BAR ASSY center w insert stamped 3729340 3729340 1 20 75 60 Ser 10 thru 30 BAR ASSY grille 3768781 1 4 25 58 PASS EXTENSION outer bar L H 3751891 1 3 60 58 PASS EXTENSION cuter bar R I I 3751892 1 3 60 i NOTE The number 6 bar on right and left hand side should be replaced in pairs to maintain symmetrical appearance 1 11569 ATTACHING PARTS Radiator Grille Moulding 49 50 PASS RETAINER grille lower bar 3688590 4 30 53 PASS RETAINER grille verticcal bar 3705080 2 35 54 PASS RETAINER outer end 3705122 2 30 54 PASS RETAINER left inter and outer vertical 3705297 2 35 54 PASS RETAINER right inter and outer vertical 3705298 2 35 58 61 PASS RETAINER grille lower 3749132 7 07 59 PASS RETAINER header pnl mldg assy 3756679 6 10 63 CORVETTE RETAINER 3797236 5 05 60 61 PASS RETAINER ASSY front bumper filler panel outer and center moulding 3777252 A R 10 l T 1l E t Motuzir Division aonoral Nlotors Corporation
