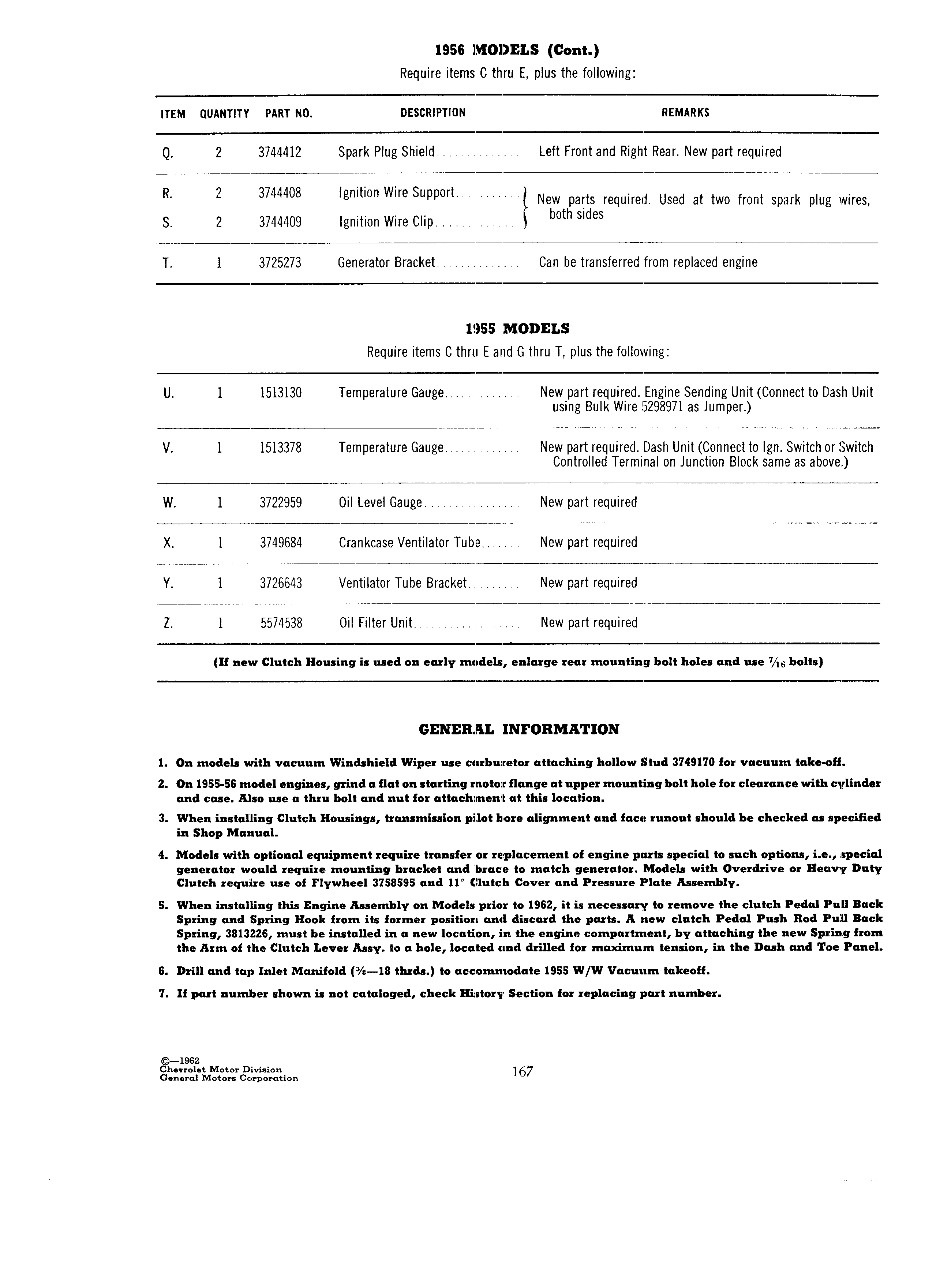

1956 MODELS Cont Require items C thru E plus the following ITEM QUANTITY PART N0 DESCRIPTION REMARKS Q 2 3744412 Spark Plug Shield t r t Left Front and Right Rear New part required R 2 3744408 Igmtmn Wwe Support l r New parts required Used at two front spark plug wires s 2 3744409 ignition wire Clip b 9965 T 1 3725273 Generator Bracket Can be transferred from replaced engine 1955 MODELS Require items C thru E and G thru T plus the following U 1 1513130 Temperature Gauge New part required Engine Sending Unit Connect to Dash Unit using Bulk Wire 5298971 as Jumper V 1 1513378 Temperature Gauge New part required Dash Unit Connect to lgn Switch or Switch Controlled Terminal on Junction Block same as above W 1 3722959 Oil Level Gauge New part required X 1 3749684 Crankcase Ventilator Tube New part required Y 1 3726643 Ventilator Tube Bracket New part required Z 1 5574538 Oil Filter Unit New part required If new Clutch Housing is used on early models enlarge rear mounting bolt holes and use TA6 bolts GENERAL INFORMATION 1 On models with vacuum Windshield Wiper use curbuiretor attaching hollow Stud 3749170 for vacuum take off 2 On 1955 56 model engines grind a flat on starting rnotoir flange at upper mounting bolt hole for clearance with cylinder and case Also use a thru bolt and nut for attachirnenll at this location 3 When installing Clutch Housings transmission pillot lmore alignment and face runout should be checked as specified in Shop Manual 4 Models with optional equipment require transfer or replacement of engine parts special to such options i e special generator would require mounting bracket and Zbrace to match generator Models with Overdrive or Heavy Duty Clutch require use of Flywheel 3758595 and 11 Clutch Cover and Pressure Plate Assemblly 5 When installing this Engine Assembly on Models prior to 1962 it is necessary to remove tlhe clutch Pedal Pull Back Spring and Spring Hook from its former position and discard the parts A new clutch Pedal Push Rod Pull Back Spring 3813226 must be installed in a new location in the engine compartment by attaching the new Spring from the Arm of the Clutch Lever Assy to a hole located and drilled for maximum tension in the Dash and Toe Panel 6 Drill and tap Inlet Manifold 18 thrds to accommodate 1955 W W Vacuum takeoff 7 If part number shown is not cataloged check History Section for replacing part number c T1g6 2 M G i 1Fhott r rC x 3 ion 1
