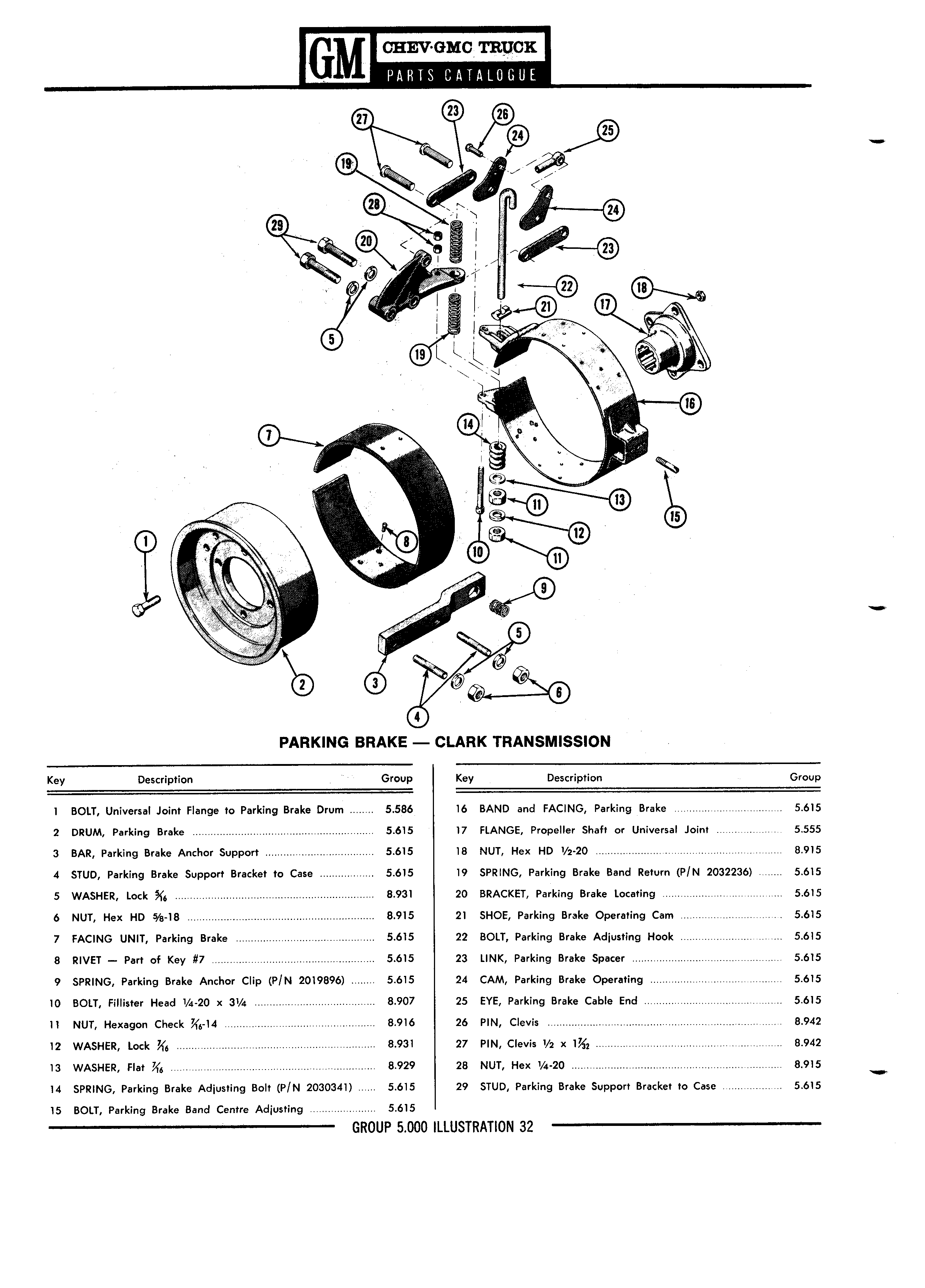

GM mv Mc mucx PARIS CATALOGUE m t Q I f ff v V y Q I 2 II P c A C 1 I V I 1 I Vbvj U Q 1 A 4 v g y f I I Y W J L g I A I j i V 0 0 vvL V Av V 2 4 wi 5 0 8 I 6 PARKING BRAKE CLARK TRANSMISSION Key Description Group Key Description Group 1 BOLT Universal Joint Flange to Parking Brake Drum 5 586 16 BAND and FACING Parking Brake 4 5 615 2 DRUM Parking Brake 5 615 17 FLANGE Propeller Shaft or Universal Joint 5 555 3 BAR Parking Brake Anchor Support 5 615 18 NUT Hex HD I 2 20 8 915 4 STUD Parking Brake Support Bracket to Case 5 615 19 SPRING Parking Brake Band Return P N 2032236 5 615 5 WASHER Lock 6 8 931 20 BRACKET Parking Brake Locating 5 615 6 NUT Hex HD 5 18 8 915 21 SHOE Parking Brake Operating Cam 5 615 7 FACING UNIT Parking Brake 5 615 22 BOLT Parking Brake Adiusting Hook 5 615 8 RIVET Part of Key 7 5 615 23 LINK Parking Brake Spacer 5 615 9 SPRING Parking Brake Anchor Clip P N 2019896 5 615 24 CAM Parking Brake Operating 5 615 10 BOLT Fillister Head 20 x 31 4 8 907 25 EYE Parking Brake Cable End 5 615 11 NUT Hexagon Check 6 14 8 916 26 PIN Clevis 8 942 12 WASHER Lock ZT 8 931 27 PIN claws 1 2 x 1 8 942 is WASHER Flat Z 8 929 28 NUT Hex 1 4 20 8 915 Y 14 SPRING Parking Brake Adiusting Bolt P N 2030341 5 615 29 STUD Parking Brake Support Bracket to Case 5 615 15 BOLT Parking Brake Band Centre Adjusting 5 615 GROUP 5000 ILLUSTRATION 32
