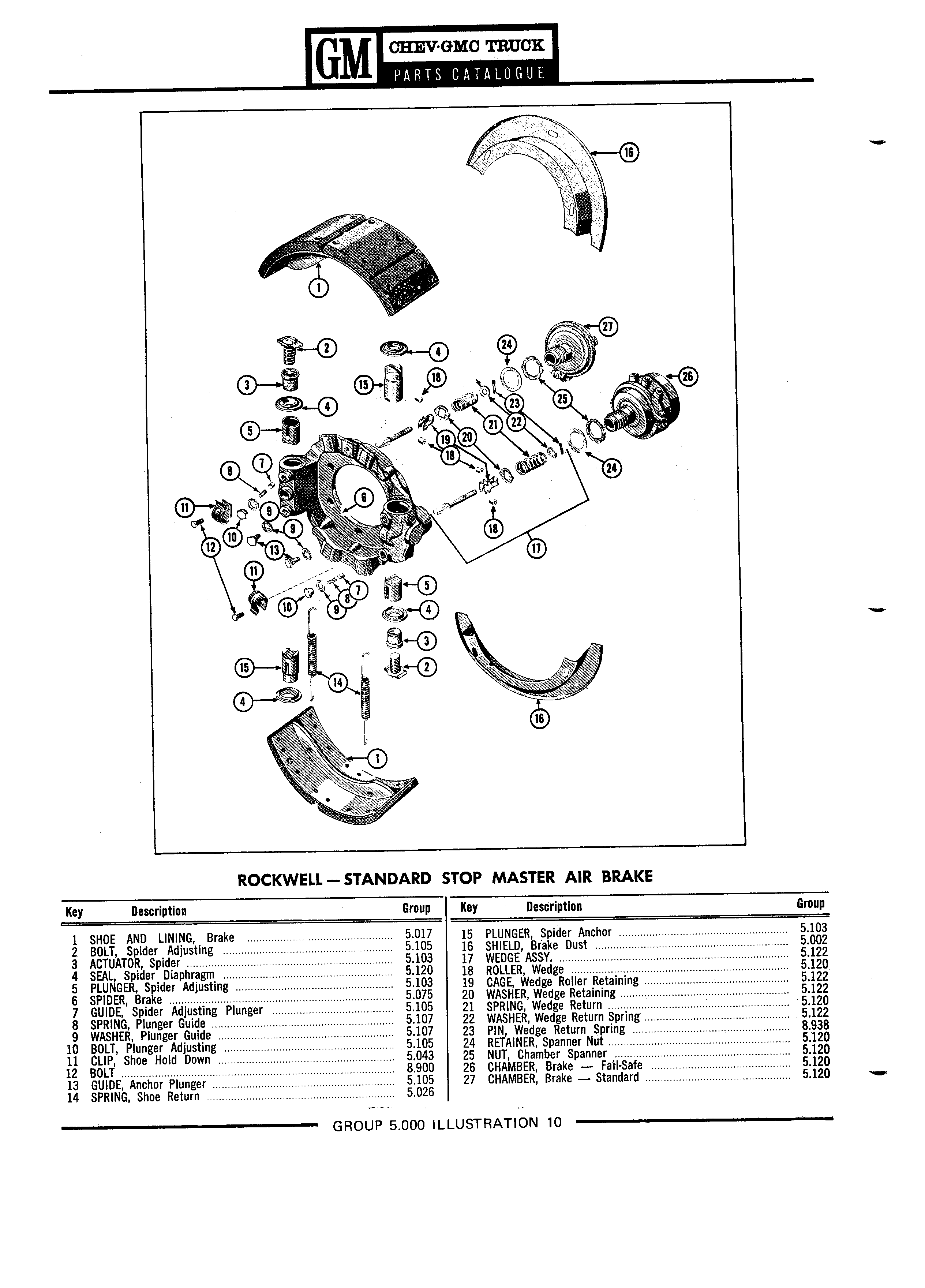

cmw Gmc TRUCK PARTS CATALOGUE 6 AAAAAA 9 gg S q04 Q I gsi 01 6 Q2 G A I I sn Q L s x4 6 e g eii y lr m I 3 W EG y QP 6 6 9 I ag Z w q I e SS I no S aln ROCKWELL STANDARD STOP MASTER AIR BRAKE Key Description Group Key Description Group 1 SHOE AND LINlNG Brake 5 017 15 PLUNGER Spider Anchor 5 103 2 BOLT Sr i Ier A iust ne T TT T1 1 1 11 T T 1 5 105 16 suiaun Br ake oust r r r r rr r r 5 002 3 ACTUATOR Spider 5 103 17 WEDGE ASSY 5 122 4 SEAL Spider Diaphragm 5 120 18 ROLLER Wedge 5 120 5 PLUNGER Spider Adjusting 5 103 19 CAGE Wedge Roller Retaining 5 122 6 SPIDER Brake 5 075 20 WASHER Wedge Retaining 5 122 7 GUIDE Spider Adjusting Plunger 5 105 21 SPRING Wedge Return 5 120 8 SPRING Plunger Guide 5 107 22 WASHER Wedge Return Spring 5 122 9 WASHER Plunger Guide 5 107 23 PIN Wedge Return Spring 8 938 10 BOLT Plunger Adjusting 5 105 24 RETAINER Spanner Nut 5 120 11 CLIP Shoe Hold Down 5 043 25 NUT Chamber Spanner 5 120 12 BOLT 8 900 26 CHAMBER Brake Fail Safe 5 120 13 GUIDE Anchor Plunger 5 105 27 CHAMBER Brake Standard 5 120 14 SPRING Shoe Return 5 026 GROUP 5 000 ILLUSTRATION 10
