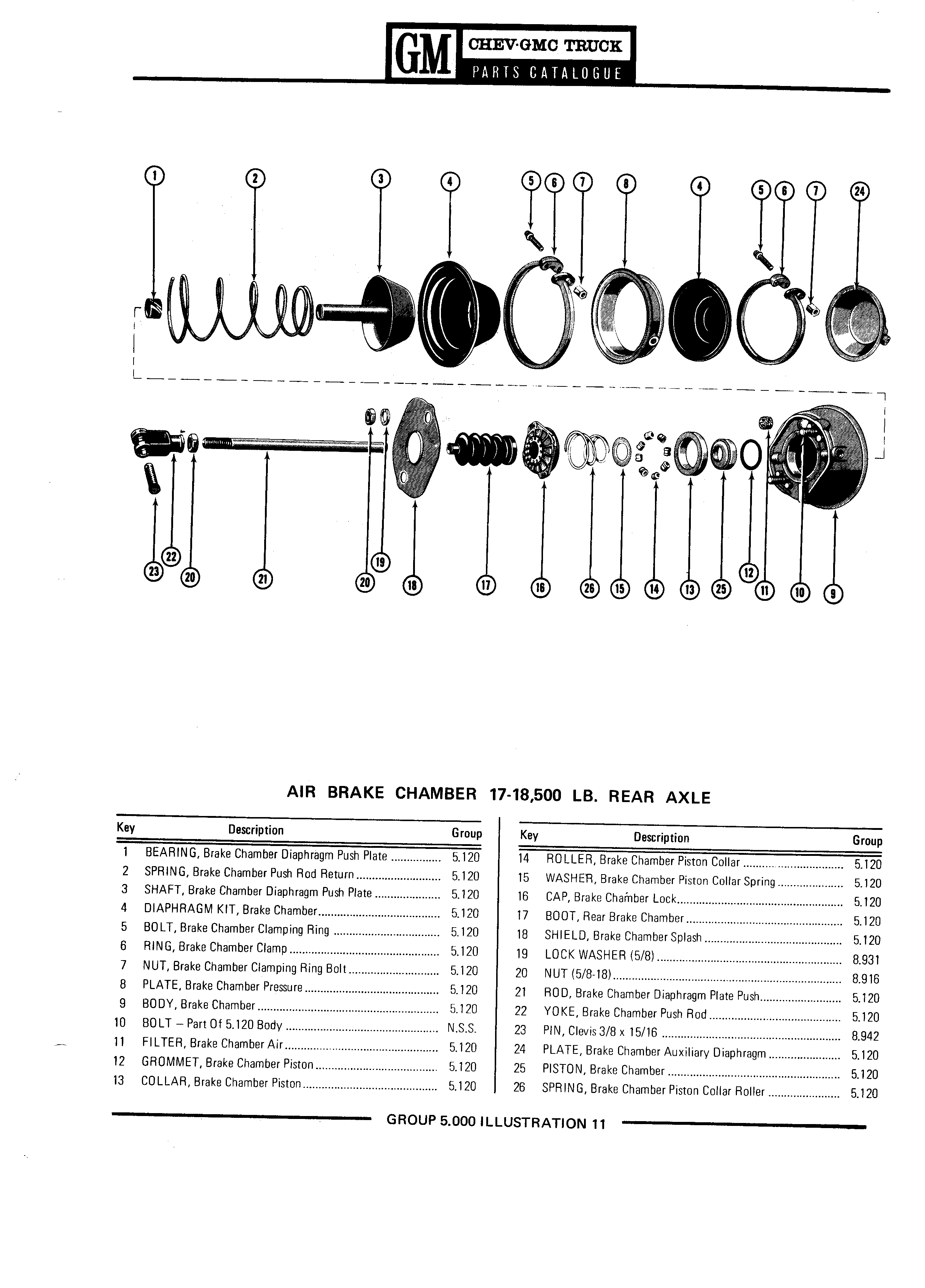

GM cx mvomc mocx PARTS CATALOGUE I V hm l ff JUL F U g gg yy TA A v r 7 v a L j 0 0 7 I A e Q A AA I l I fg 9 e O J 4Z Q my ri A I K L QL L L L V AIR BRAKE CHAMBER 17 18 500 LB REAR AXLE Key Description Group Key Description Group 1 BEARING Brake Chamber Diaphragm Push Plate r 5 120 14 ROLLER Brake Chamber Piston Collar r 5 120 2 SPRING Brake Chamber Push Rod Return 5 120 15 WASHER Brake Chamber Piston Collar Spring r 5 120 3 SHAFT Brake Chamber Diaphragm Push Plate 5 120 16 CAP Brake Chamber Lock 5 120 4 DIAPHRAGM KIT Brake Chamber 5 120 17 BOOT Rear Brake Chamber r 5 120 5 BOLT Brake Chamber Clamping Ring r 5 120 18 SHIELD Brake ChamberSplash r 5 120 6 RING Brake Chamber Clamp 5 120 19 LOCK WASHER 5 8 8 931 7 NUT Brake Chamber Clamping Ring Bolt 5 120 20 NUT 5 8 18 8 916 8 PLATE Brake Chamber Pressure 5 120 21 ROD Brake Chamber Diaphragm Plate Push 5 120 9 BODY Brake Chamber 5 120 22 YO KE Brake Chamber Push Rod 5 120 10 BOLT PartOf 5 120 Body N S S 23 PIN Clevis 3 8 x 15 16 8 942 11 FILTER Brake ChamberAir 5 120 24 PLATE Brake Chamber Auxiliary Diaphragm 5 120 12 GROMII IET Brake Chamber Piston 5 120 25 PISTON Brake Chamber 5 120 13 COLLAR Brake Chamber Piston 5 120 26 SPRING Brake Chamber Piston Collar Roller 5 120
