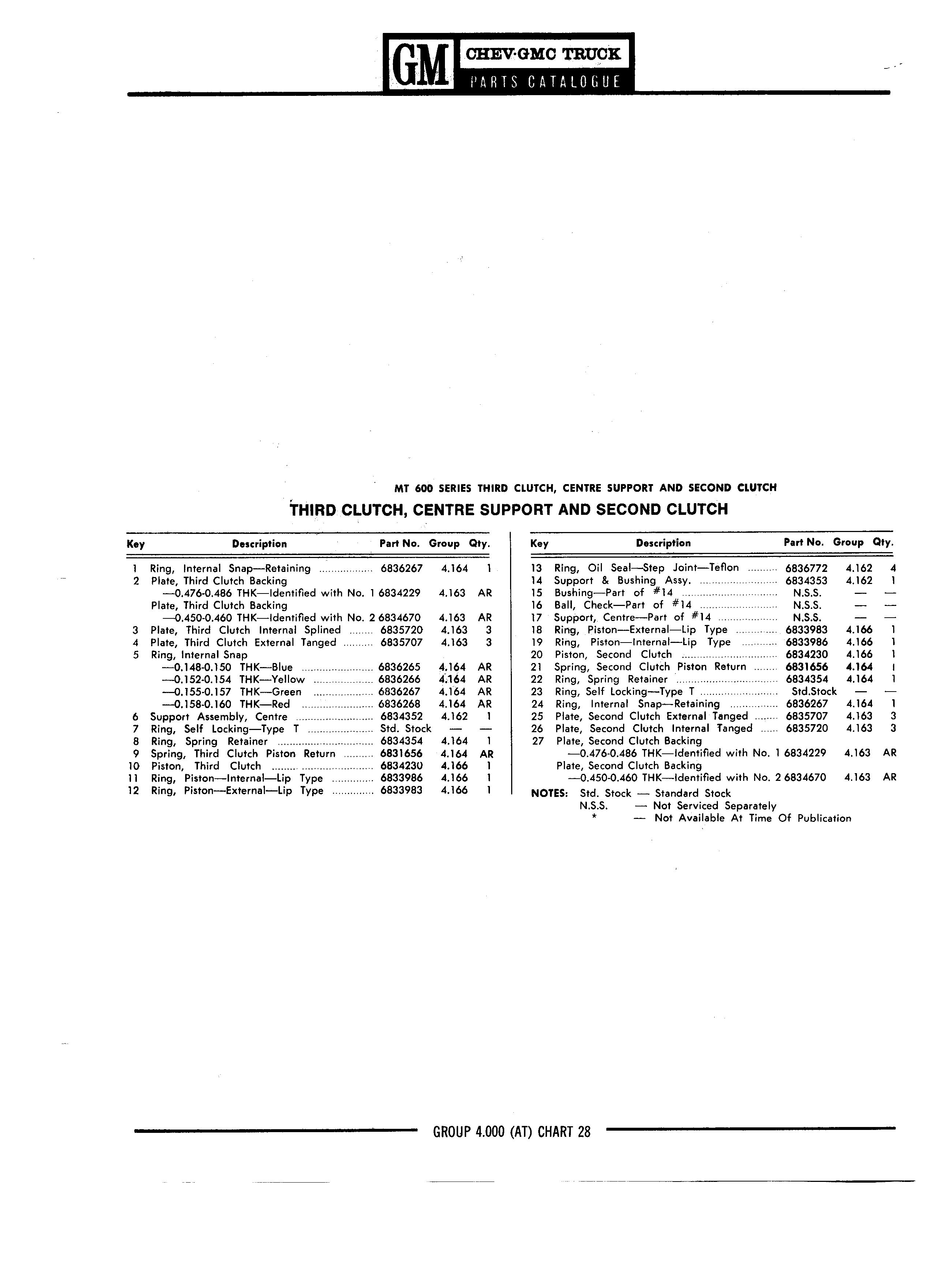

cxmvemc muox A I PARTS CATALOGUE S MT 600 SERIES THIRD CLUTCH CENTRE SUPPORT AND SECOND CLUTCH THIRD CLUTCH CENTRE SUPPORT AND SECOND CLUTCH Key Description U Part No Group Qty Key Description Part No Group Qty 1 Ring internal Snap Retaining 6836267 4 164 1 13 Ring Oil Seal Step Joint Tef1on 6836772 4 162 4 W 2 Plate Third Clutch Backing 14 Support St Bushing Assy 6834353 4 162 1 0 476 0 486 THK dentified with No 1 6834229 4 163 AR 15 Bushing Part of 14 N S Plate Third Clutch Backing 16 Ball Check Part of 14 N 0 450 O 460 THK ldentit1ed with No 2 6834670 4 163 AR 17 Support Centre Part of 14 N 3 Plate Third Clutch Internal Splined 6835720 4 163 3 18 Ring Piston Externa Lip Type 6833983 4 166 1 4 Plate Third Clutch External Tanged 6835707 4 163 3 19 Ring Piston Internal Lip Type 6833986 4 166 1 5 Ring Internal Snap 20 Piston Second Clutch 6834230 4 166 1 0 148 0 150 THK Blue 6836265 4 164 AR 21 Spring Second Clutch Piston Return 6831656 4 164 I 0 152 0 154 THK Yel ow 6836266 4 164 AR 22 Ring Spring Retainer 6834354 4 164 1 0 155 0 157 THl Green 6836267 4 164 AR 23 Ring Self Locking Type T Std Stock 0 158 0 16O THK Red 6836268 4 164 AR 24 Ring Internal Snap Retaining 6836267 4 164 1 6 Support Assembly Centre 6834352 4 162 1 25 Plate Second Clutch External Tanged 6835707 4 163 3 7 Ring Self Locking Type T Std Stock 26 Plate Second Clutch Internal Tanged 6835720 4 163 3 8 Ring Spring Retainer 6834354 4 164 1 27 Plate Second Clutch Backing 9 Spring Third Clutch Piston Return 6831656 4 164 AR O 476 O 486 THK ldentified with No 16834229 4 163 AR 10 Piston Third Clutch 6834230 4 166 1 Plate Second Clutch Backing 11 Ring Piston lnternal Lip Type 6833986 4 166 1 O 450 0 460 THK ldentif1ed with No 2 6834670 4 163 AR 12 Ring Piston External Lip Type 6833983 4 166 1 NOTES Std Stock Standard Smck N S S Not Serviced Separately Not Available At Time Of Publication GROUP 4 000 AT CHART 28
