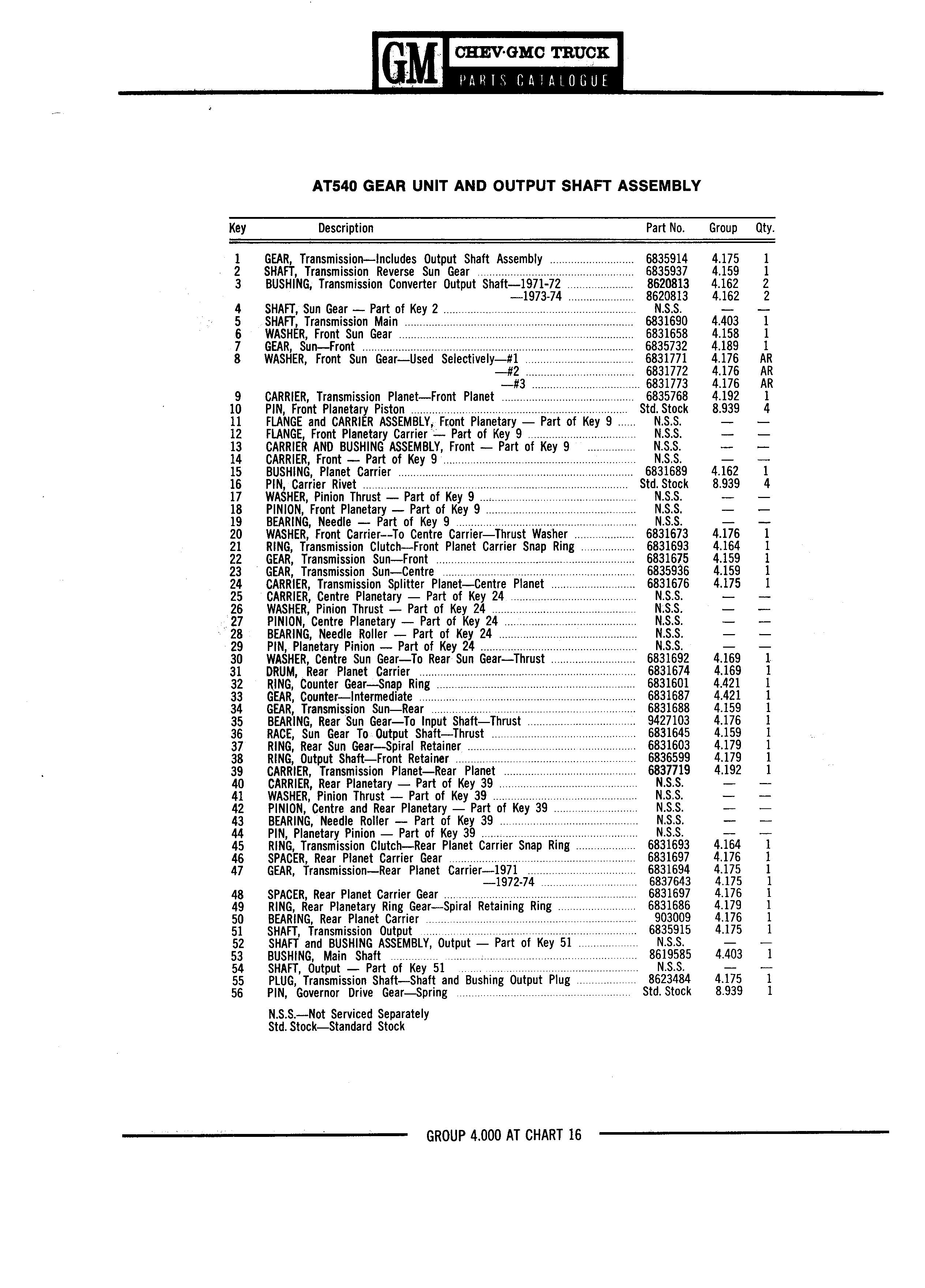

cmw suc mucx V I ARIf IZAlAI 00UE AT540 GEAR UNIT AND OUTPUT SHAFT ASSEMBLY Key Description Part No Group Gty 1 GEAR Transmission Includes Output Shaft Assembly u 4 u 6835914 4 175 1 I 2 SHAFT Transmission Reverse Sun Gear rr 4 u ru 4 r 6835937 4 159 1 3 BUSHING Transmission Convener Output Shaft 1971 72 8620813 4 162 2 1973 74 8620813 4 162 2 4 SHAFT Sun Gear Part of Key 2 N S S 5 SHAFT Transmission Main 4 6831690 4 403 1 6 WASHER Front Sun Gear 4 S 6831658 4 158 1 7 GEAR Sun Front s 6835732 4 189 1 8 WASHER Front Sun Gear Used Selectively 1 4 6831771 4 176 AR 2 6831772 4 176 AR 3 4 6831773 4 176 AR 9 CARRIER Transmission Planet Front Planet 6835768 4 192 1 10 PIN Front Planetary Piston Std Stock 8 939 4 11 FLANGE and CARRIER ASSEMBLY Front Planetary Part of Key 9 N S S 12 FLANGE Front Planetary Carrier 3 Part of Key 9 N S S 13 CARRIER AND BUSHING ASSEMBLY Front Part of Key 9 N S S 14 CARRIER Front Part of Key 9 N S S 15 BUSHING Planet Carrier 4 6831689 4 162 1 16 PIN Carrier Rivet 4 4 Std Stock 8 939 4 17 WASHER Pinion Thrust Part of Key 9 N S S 18 PINION Front Planetary Part of Key 9 4 4 N S S 19 BEARING Needle Part of Key 9 N S S 20 WASHER Front Carrier To Centre Carrier Thrust Washer 6831673 4 176 1 21 RING Transmission Clutch Front Planet Carrier Snap Ring 6831693 4 164 1 22 GEAR Transmission Sun Front 6831675 4 159 1 23 GEAR Transmission Sun Centre 6835936 4 159 1 24 CARRIER Transmission Splitter Planet Centre Planet 6831676 4 175 1 25 CARRIER Centre Planetary Part of Key 24 N S S 26 WASHER Pinion Thrust Part of Key 24 N S S 27 PINION Centre Planetary Part of Key 24 N S S 28 BEARING Needle Roller Part of Key 24 N S S 29 PIN Planetary Pinion Part of Key 24 N S S 30 WASHER Centre Sun Gear To Rear Sun Gear Thrust 6831692 4 169 1 31 DRUM Rear Planet Carrier 6831674 4 169 1 32 RING Counter Gear Snap Ring 6831601 4 421 1 33 GEAR Counter ntermediate 6831687 4 421 1 34 GEAR Transmission Sun Rear 6831688 4 159 1 35 BEARING Rear Sun Gear To Input Shaft Thrust 9427103 4 176 1 36 RACE Sun Gear To Output Shaft Thrust 6831645 4 159 1 37 RING Rear Sun Gear Spiral Retainer 6831603 4 179 1 38 RING Output Shaft Front Retainer 6836599 4 179 1 39 CARRIER Transmission Planet Rear Planet 6837719 4 192 1 40 CARRIER Rear Planetary Part of Key 39 N S S 41 WASHER Pinion Thrust Part of Key 39 N S S 42 PINION Centre and Rear Planetary Part of Key 39 N S S 43 BEARING Needle Roller Part of Key 39 N S S 44 PIN Planetary Pinion Part of Key 39 N S S 45 RING Transmission Clutch Rear Planet Carrier Snap Ring 6831693 4 164 1 46 SPACER Rear Planet Carrier Gear 6831697 4 176 1 47 GEAR Transmission Rear Planet Carrier 1971 6831694 4 175 1 1972 74 6837643 4 175 1 48 SPACER Rear Planet Carrier Gear 6831697 4 176 1 49 RING Rear Planetary Ring Gear Spiral Retaining Ring 6831686 4 179 1 50 BEARING Rear Planet Carrier 903009 4 176 1 51 SHAFT Transmission Output 6835915 4 175 1 52 SHAFT and BUSHING ASSEMBLY Output Part of Key 51 N S S 53 BUSHING Main Shaft 8619585 4 403 1 54 SHAFT Output Part of Key 51 N S S 55 PLUG Transmission Shaft Shaft and Bushing Output Plug 8623484 4 175 1 56 PIN Governor Drive Gear Spring Std Stock 8 939 1 N S S Not Serviced Separately Std Stock Standard Stock GROUP 4 000 AT CHART IG
