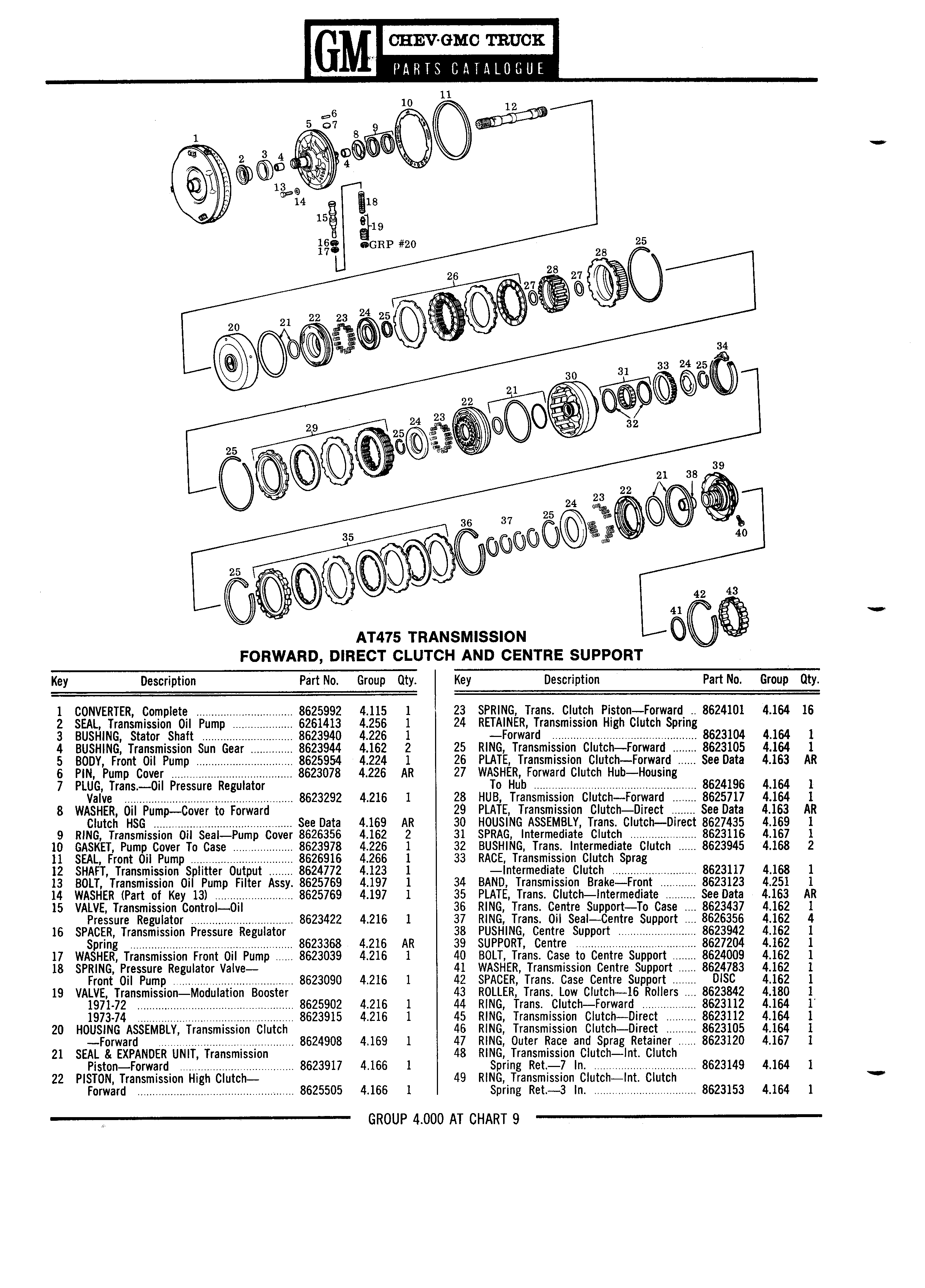

cmav Gmc Tmrcx A PARTS CATALOGUE 6 10 H 12 T g T a s soo 4 I I F 0 4 mv I 2 ea 14 Em 15 gw gg scrap 20 28 25 26 2 r 26 I wi if ie 21 22 23 25 I ts 2 D m e W T TT w I 34 A 30 31 aa 24 2 22 f 5 24 23 9 Q 25 32 lil 1 g 25 T N BII T A A I 21 as 9 Y 22 e IETTTS I 24 Q wl 4l 36 37 25 I E 35 eww 5 II i 5 4 t AT475 TRANSMISSION FORWARD DIRECT CLUTCH AND CENTRE SUPPORT Key Description PartNo Group Oty Key Description Part No Group Qty 1 CONVERTER Complete 8625992 4 115 1 23 SPRING Trans Clutch Piston Forward 8624101 4 164 16 2 SEAL Transmission Oil Pump 6261413 4 256 1 24 RETAINER Transmission High Clutch Spring 3 BUSHING Stator Shaft 8623940 4 226 1 Forward 8623104 4 164 1 4 BUSHING Transmission Sun Gear 8623944 4 162 2 25 RING Transmission Clutch Forward 8623105 4 164 1 5 BODY Front Oil Pump 8625954 4 224 1 26 PLATE Transmission Clutch Forward See Data 4 163 AR 6 PIN Pump Cover 8623078 4 226 AR 27 WASHER Forward Clutch Hub Housing 7 PLUG Trans Oil Pressure Regulator To Hub 8624196 4 164 1 Valve 8623292 4 216 1 28 HUB Transmission Clutch Forward 8625717 4 164 1 8 WASHER Oil Pump Cover to Forward 29 PLATE Transmission Clutch Direct See Data 4 163 AR Clutch HSG See Data 4 169 AR 30 HOUSING ASSEMBLY Trans Clutch Direct 8627435 4 169 1 9 RING Transmission Oil Seal Pump Cover 8626356 4 162 2 31 SPRAG Intermediate Clutch 8623116 4 167 1 10 GASKET Pump Cover To Case 8623978 4 226 1 32 BUSHING Trans Intermediate Clutch 8623945 4 168 2 11 SEAL Front Oil Pump 8626916 4 266 1 33 RACE Transmission Clutch Sprag 12 SHAFT Transmission Splitter Output 8624772 4 123 1 Intermediate Clutch 8623117 4 168 1 13 BOLT Transmission Oil Pump Filter Assy 8625769 4 197 1 34 BAND Transmission Brake Front 8623123 4 251 1 14 WASHER Part of Key 13 8625769 4 197 1 35 PLATE Trans Clutch Intermediate See Data 4 163 AR 15 VALVE Transmission Control Oil 36 RING Trans Centre Support To Case 8623437 4 162 1 Pressure Regulator 8623422 4 216 1 37 RING Trans Oil Seal Centre Support 8626356 4 162 4 16 SPACER Transmission Pressure Regulator 38 PUSHING Centre Support 8623942 4 162 1 Spring 8623368 4 216 AR 39 SUPPORT Centre 8627204 4 162 1 17 WASHER Transmission Front Oil Pump 8623039 4 216 1 40 BOLT Trans Case to Centre Support 8624009 4 162 1 18 SPRING Pressure Regulator Valve 41 WASHER Transmission Centre Support 8624783 4 162 1 Front Oil Pump 8623090 4 216 1 42 SPACER Trans Case Centre Support DISC 4 162 1 19 VALVE Transmission ModuIation Booster 43 ROLLER Trans Low Clutch 16 Rollers 8623842 4 180 1 1971 72 8625902 4 216 1 44 RING Trans Clutch Forward 8623112 4 164 1 1973 74 8623915 4 216 1 45 RING Transmission Clutch Direct 8623112 4 164 1 20 HOUSING ASSEMBLY Transmission Clutch 46 RING Transmission Clutch Direct 8623105 4 164 1 Forward 8624908 4 169 1 47 RING Outer Race and Sprag Retainer 8623120 4 167 1 21 SEAL EXPANDER UNIT Transmission 48 RING Transmission Clutch Int Clutch Piston Forward 8623917 4 166 1 Spring Ret 7 In 8623149 4 164 1 22 PISTON Transmission High Clutch 49 RING Transmission Clutch Int Clutch Forward 8625505 4 166 1 Spring Ret 3 In 8623153 4 164 1 GROUP 4 000 AT CHART 9
