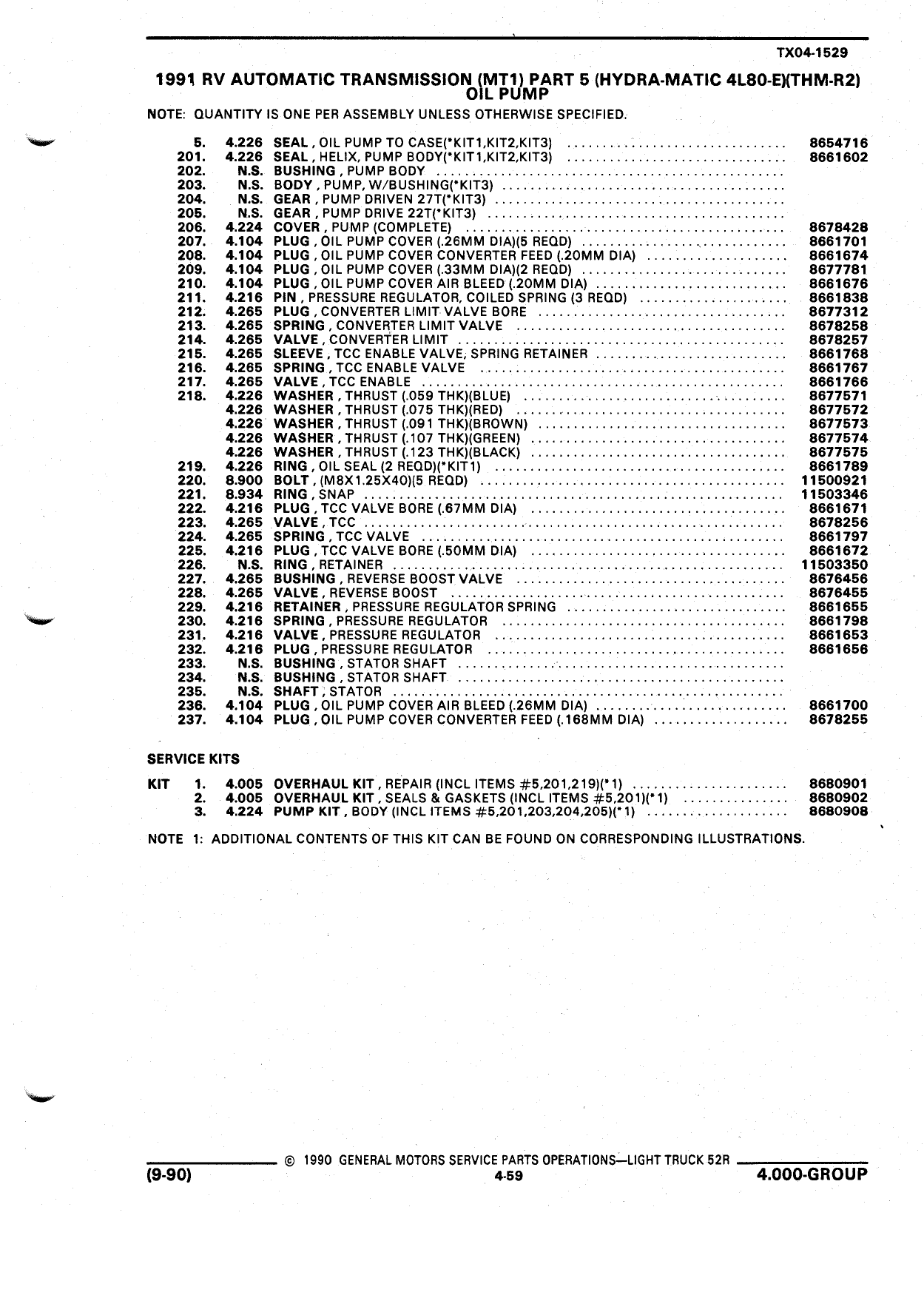

TX04 1529 1991 RV AUTOMATIC TRANSMISSIOI I M U T ART 5 HYDRA MATIC 4L80 E THM R2 NOTE OUANTITV IS ONE PER ASSEMBLY UNLESS OTHERWISE SPECIFIED nnr 5 4 226 SEAL OIL PUMP TO CASE I lT1 I IT2 I IT3l 8654718 201 4 226 SEAL HELIX PUMP BODV I IT1 KIT2 KIT3 8661602 202 N S BUSHING PUMP BODY 203 N S BODY PUMP W BUSH NG KIT3 204 N S GEAR PUMP DRIVEN 27T I T3 205 N S GEAR PUMP DRIVE 22T K T3 206 4 224 COVER PUMP COMPLETE 8678428 207 4 104 PLUG OIL PUMP COVER 25MM DIA 5 REOD 8861701 208 4 104 PLUG OIL PUMP COVER CONVERTER FEED 20MM DIA 8661674 209 4 104 PLUG OIL PUMP COVER 33MM DIA 2 REOD 8677781 2 0 4 104 PLUG O L PUMP COVER AIR BLEED 20MM DIA 8681676 211 4 216 PIN PRESSURE REGULATOR COILED SPRING 3 REOD 8661838 212 4 265 PLUG CONVERTER LIMIT VALVE BORE 8677312 213 4 285 SPRING CONVERTER LIMIT VALVE 8678258 214 4 265 VALVE CONVERTER LIMIT 8678257 215 4 265 SLEEVE TCC ENABLE VALVE SPRING RETAINER 8661768 216 4 265 SPRING TCC ENABLE VALVE 8661767 217 4 265 VALVE TCC ENABLE 866 766 218 4 226 WASHER THRUST 059 THK BLUE 9677571 4 226 WASHER THRUST 075 THK RED 8677572 4 226 WASHER THRUST 091 THK BROWN 8677573 4 226 WASHER THRUST 107 THK GREEN 8677574 4 226 WASHER THRUST 123 THK BLACK 8677575 219 4 226 RING OIL SEAL 2 REOD KIT1 8661789 220 8 900 BOLT M8X1 25X40 5 REOD 1I 500921 221 8 934 RING SNAP 1I 503346 222 4 216 PLUG TCC VALVE BORE 67MM DIA 8661671 223 4 265 VALVE TCC 8678256 224 4 265 SPRING TCC VALVE 8661797 225 4 216 PLUG TCC VALVE BORE 50MM DIA 8661672 226 N S RING RETAINER 11503350 227 4 265 BUSHING REVERSE BOOST VALVE 8676456 228 4 265 VALVE REVERSE BOOST 8676455 229 4 216 RETAINER PRESSURE REGULATOR SPRING 8661655 6 230 4 216 SPRING PRESSURE REGULATOR 8661798 231 4 216 VALVE PRESSURE REGULATOR 8661653 232 4 216 PLUG PRESSURE REGULATOR 8661656 233 N S BUSHING STATOR SHAFT 234 N S BUSHING STATOR SHAFT 235 N S SHAFT STATOR 236 4 104 PLUG OIL PUMP COVER AIR BLEED 26MM DIA 8661700 237 4 104 PLUG OIL PUMP COVER CONVERTER FEED 188MM DIA 8678255 SERVICE KITS KIT 1 4 005 OVERHAUL KIT REPAIR INCL ITEMS 5 201 219 1 8660901 2 4 005 OVERHAUL KIT SEALS GASKETS INCL ITEMS 5 201 1 8660902 3 4 224 PUMP KIT BODY INCL ITEMS 5 2OI 203 204 205 I 1 8680908 NOTE I ADDITIONAL CONTENTS OF THIS KIT CAN BE FOUND ON CORRESPONDING ILLUSTRATIONS Y 1990 GENERAL MOTORS SERVICE PARTS 0PERATIONS LIGHT TRUCK 5ZR 9 90 59 4 000 GROUP
