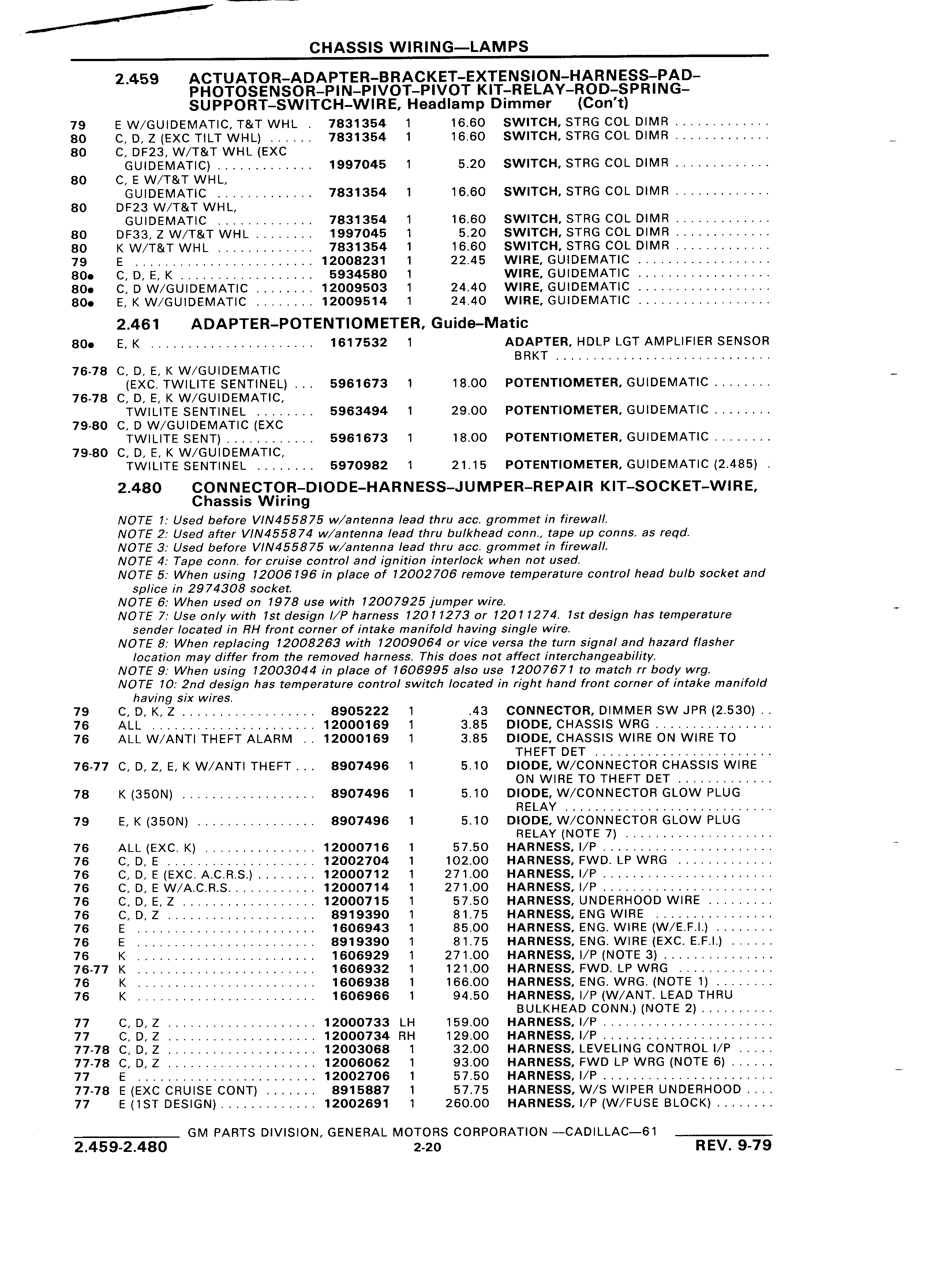

CHASSIS WIR NG LAMPS 2 459 ACTUATOR ADAPTER BRACKET EXTENS ON HARNESS PAD PHOTOSENSOR PIN PIVOT PIVOT KIT RELAY ROD SPR NG SUPPORT SWITCH WIRE Headlamp Dimmer C0n t 79 E W GUIDEMATIC T T WHL 7831354 1 16 60 SWITCH STRG COL DIMR 80 C D Z EXC TILT WHL 7831354 1 16 60 SWITCH STRG COL DIMR M 80 C DF23 W T T WHL EXC GUIDEMATIC 1997045 1 5 20 SWITCH STRG COL DIMR 80 C E W T T WHL GUIDEMATIC 7831354 1 16 60 SWITCH STRG COL DIMR 80 DF23 W T T WHL GUIDEMATIC 7831354 1 16 60 SWITCH STRG COL DIMR 80 DF33 Z W T T WHL 1997045 1 5 20 SWITCH STRG COL DIMR 80 K W T T WHL 7831354 1 16 60 SWITCH STRG COL DIMR 79 E 12008231 1 22 45 WIRE GUIDEMATIC 80 C D E K 5934580 1 WIRE GUIDEMATIC 80 C D W GUIDEMATIC 12009503 1 24 40 WIRE GUIDEMATIC 80 E K W GUIDEMATIC 12009514 1 24 40 WIRE GUIDEMATIC 2 461 ADAPTER POTENTIOMETER Guide Matic 80 E K 1617532 1 ADAPTER HDLP LGT AMPLIFIER SENSOR BRKT 76 78 C D E K W GUIDEMATIC EXC TWILITE SENTINEL 5961673 1 18 00 POTENTIOMETER GUIDEMATIC 76 78 C D E K W GUIDEMATIC TWILITE SENTINEL 5963494 1 29 00 POTENTIOMETER GUIDEMATIC 79 80 C D W GUIDEMATIC EXC TWILITE SENT 5961673 1 18 00 POTENTIOMETER GUIDEMATIC 79 80 C D E K W GUIDEMATIC TWILITE SENTINEL 5970982 1 21 15 POTENTIOMETER GUIDEMATIC 2 485 2 480 CONNECTOR DIODE HARNESS JUMPER REPAIR KIT SOCKET WIRE Chassis Wiring NOTE 7 Used before VlN 455875 w antenna lead thru acc grommet in firewall NOTE 2 Used after V N 455874 w antenna lead thru bulkhead conn tape up conns as reqd NOTE 3 Used before VlN 455875 w antenna lead thru acc grommet in firewall NOTE 4 Tape conn for cruise control and ignition interlock when not used NOTE 5 When using 12006196 in place of 12002706 remove temperature control head bulb socket and sp ice in 2974308 socket NOTE 6 When used on 1978 use with 12007925 jumper wire NOTE 7 Use only with 1st design l P harness 12011273 or 1201 1274 1st design has temperature 4 sender located in HH front corner of intake manifold having single wire NOTE 8 When replacing 12008263 with 12009064 or vice versa the turn signal and hazard flasher location may differ from the removed harness This does not affect interchangeability NOTE 9 When using 12003044 in place of 1606995 also use 12007671 to match rr body wrg NOTE 10 2nd design has temperature control switch located in right hand front corner of intake manifold having six wires 79 C D K Z 8905222 1 43 CONNECTOR DIMMER SW JPR 2 530 76 ALL 12000169 1 3 85 DIODE CHASSIS WRG 76 ALL W ANTI THEFT ALARM 12000169 1 3 85 DIODE CHASSIS WIRE ON WIRE TO THEFT DET 76 77 C D Z E K W ANTI THEFT 8907496 1 5 10 DIODE W CONNECTOR CHASSIS WIRE ON WIRE TO THEFT DET 78 K 350N 8907496 1 5 10 DIODE W CONNECTOR GLOW PLUG RELAY 79 E K 350N 8907496 1 5 10 DIODE W CONNECTOR GLOW PLUG RELAY NOTE 7 76 ALL EXC K 12000716 1 57 50 HARNESS I P 76 C D E 12002704 1 102 00 HARNESS FWD LP WRG 76 C D E EXC A C R S 12000712 1 271 00 HARNESS I P 76 C D E W A C R S 12000714 1 271 00 HARNESS I P 76 C D E Z 12000715 1 57 50 HARNESS UNDERHOOD WIRE 76 C D Z 8919390 1 81 75 HARNESS ENG WIRE 76 E 1606943 1 85 00 HARNESS ENG WIRE W E F I 76 E 8919390 1 81 75 HARNESS ENG WIRE EXC E F I 76 K 1606929 1 271 00 HARNESS I P NOTE 3 76 77 K 1606932 1 121 00 HARNESS FWD LP WRG 76 K 1606938 1 166 00 HARNESS ENG WRG NOTE 1 76 K 1606966 1 94 50 HARNESS I P W ANT LEAD THRU BULKHEAD CONN NOTE 2 77 C D Z 12000733 LH 159 00 HARNESS I P 77 C D Z 12000734 RH 129 00 HARNESS I P 77 78 C D Z 12003068 1 32 00 HARNESS LEVELING CONTROL I P 77 78 C D Z 12006062 1 93 00 HARNESS FWD LP WRG NOTE 6 77 E 12002706 1 57 50 HARNESS I P 7 77 78 E EXC CRUISE CONT 8915887 1 57 75 HARNESS W S WIPER UNDERHOOD 77 E 1ST DESIGN 12002691 1 260 00 HARNESS I P W FUSE BLOCK t GM PARTS DIVISION GENERAL MOTORS CORPORATION CADILLAC 61 2 459 2 480 2 20 REV 9 79
