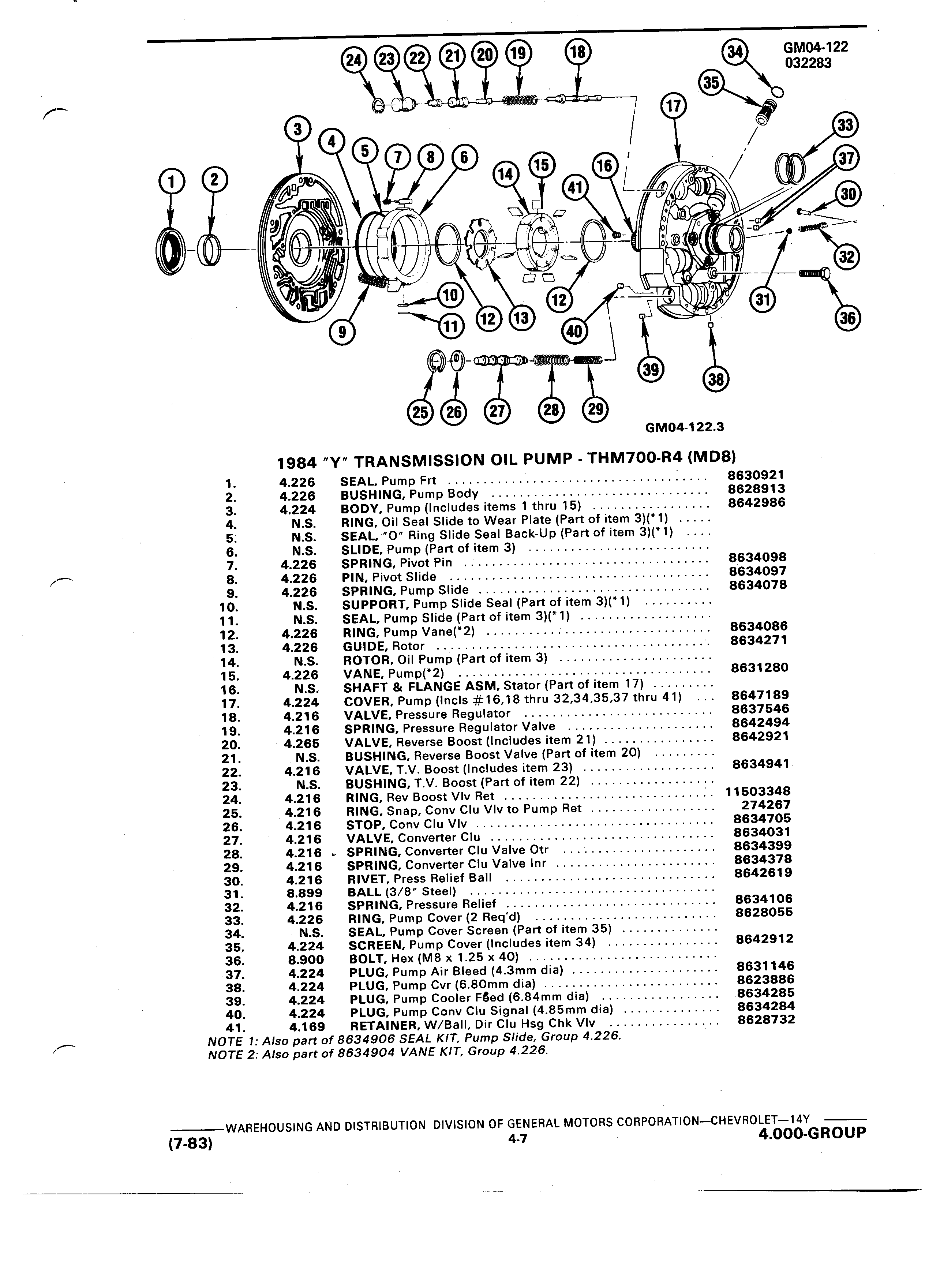

O GMM 032283 Qi all 19 Q i III i I n i I i I 6ooo I Q I Q 4 mf I ii I F I l I I T H 3 l Qi V it OI 1 I j ll llll TI I v U IDEM I 9 Ip A 9 Q 0 II I Ibi iIi Iyyl GM04 122 3 1984 Y TRANSMISSION OIL PUMP THM700 R4 MD8 1 4 226 SEAL Pump Frt 8630921 2 4 226 BUSHING Pump Body 8628913 3 4 224 BODY Pump Includes items 1 thru 15 8642986 4 N S RING Oil Seal Slide to Wear Plate Part of item 3 1 5 N S SEAL O Ring Slide Seal Back Up Part of item 3 1 6 N S SLIDE Pump Part of item 3 7 4 226 SPRING Pivot Pin 8634098 r 8 4 226 PIN Pivot Slide 8634097 9 4 226 SPRING Pump Slide 8634078 10 N S SUPPORT Pump Slide Seal Part of item 3 1 11 N S SEAL Pump Slide Part of item 3 1 12 4 226 RING Pump Vane 2 8634086 1 3 4 226 GUIDE Rotor 8634271 A 14 N S ROTOR Oil Pump Part of item 3 15 4 226 VANE Pump 2 8631280 16 N S SHAFT FLANGE ASM Stator Part of item 17 17 4 224 COVER Pump lncls 16 18 thru 32 34 35 37 thru 41 8647189 18 4 216 VALVE Pressure Regulator 8637546 19 4 216 SPRING Pressure Regulator Valve 8642494 20 4 265 VALVE Reverse Boost Includes item 21 8642921 21 N S BUSHING Reverse Boost Valve Part of item 20 22 4 216 VALVE T V Boost Includes item 23 8634941 23 N S BUSHING T V Boost Part of item 22 24 4 216 RING Rev Boost Vlv Ret Q 1 1503348 25 4 216 RING Snap Conv Clu Vlv to Pump Ret 274267 26 4 216 STOP Conv Clu Vlv 8634705 27 4 216 VALVE Converter Clu 8634031 28 4 216 SPRING Converter Clu Valve Otr 8634399 29 4 216 SPRING Converter Clu Valve lnr 8634378 30 4 216 RIVET Press Relief Ball 8642619 31 8 899 BALL 3 8 Steel 32 4 216 SPRING Pressure Relief 8634106 33 4 226 RING Pump Cover 2 Req d 8628055 34 N S SEAL Pump Cover Screen Part of item 35 35 4 224 SCREEN Pump Cover Includes item 34 8642912 36 8 900 BOLT Hex M8 x 1 25 x 40 37 4 224 PLUG Pump Air Bleed 4 3mm dia 8631146 38 4 224 PLUG Pump Cvr 6 80mm dia 8623886 39 4 224 PLUG Pump Cooler F ed 6 84mm dia 8634285 40 4 224 PLUG Pump Conv Clu Signal 4 85mm dia 8634284 41 4 169 RETAINER W Ball Dir Clu Hsg Chk Vlv 8628732 NOTE 1 Also part of 8634906 SEAL KIT Pump Slide Group 4 226 NOTE 2 Also part of 8634904 VANE K T Group 4 226 WAREHOUSlNG AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION cI IEVROLET 14Y 7 83 4 7 4 000 GROUP
