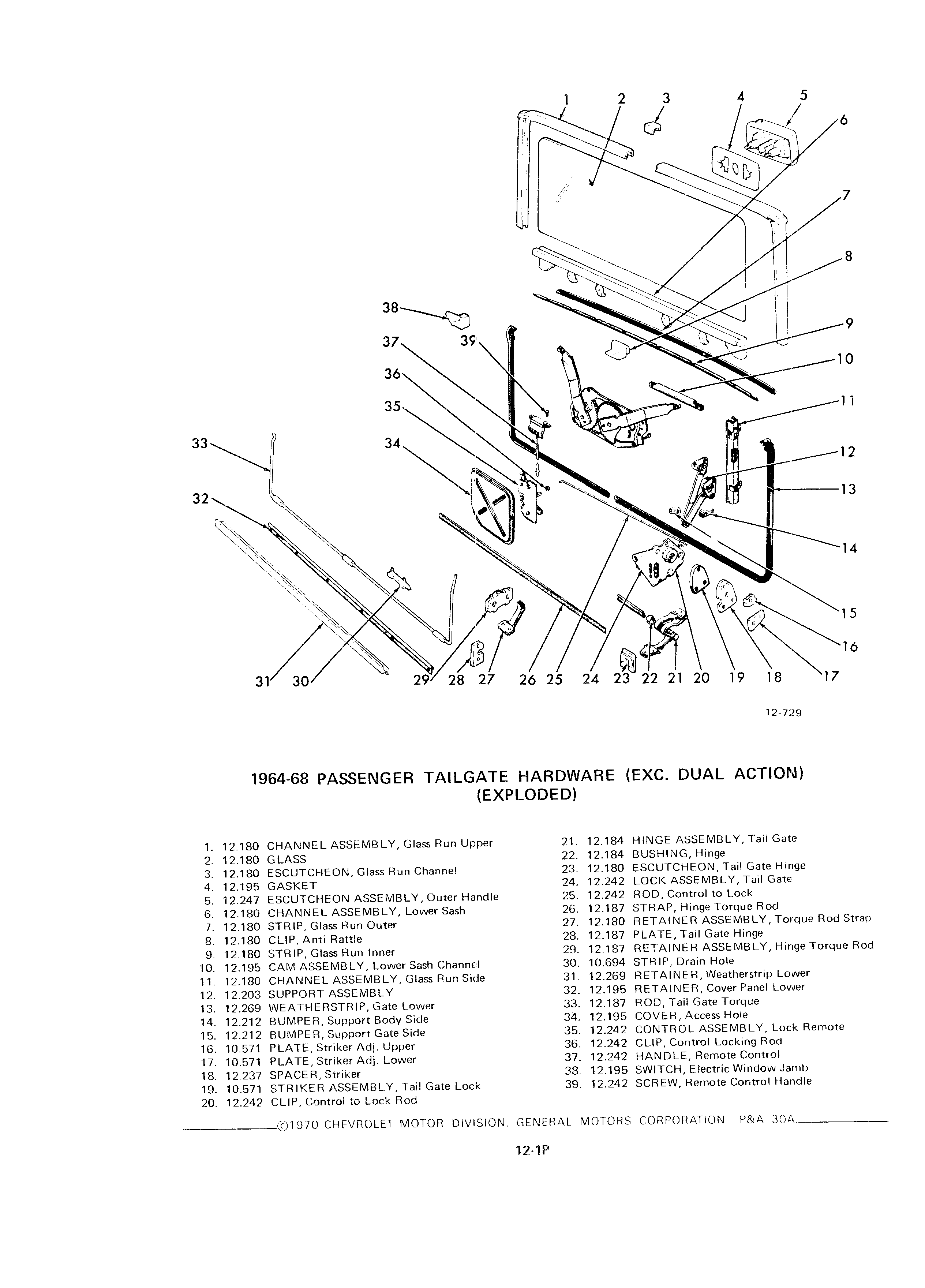

I 2 3 4 5 cf EN RX 8 QQQQ i IY I 1 38 R I i es I I 9 37 l L i P 10 3 i 35 S e R Q 3 34 Sw 1 E 1 32 K ll i 14 i S rar I Q 0 A I r I5 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1277 29 1964 68 PASSENGER TAILGATE HARDWARE EXC DUAL ACTION EX PLODED 1 12 180 CHANNEL ASSEMBLY Glass Run Upper 21 12 184 HINGE ASSEMBLY Tail Gate 2 12 180 GLASS 22 12 184 BOSRING Hinge 3 12 180 ESCUTCHEON Glass Run Channel 23 12 180 ESCUTCHEON Tail Gate Hinge 4 12 195 GASKET 24 12 242 LOCK ASSEMBLY Tail Gate 5 12 247 ESCUTCHEON ASSEMBLY Outer Handle 25 12 242 ROD Control to Lock 6 12 180 CHANNEL ASSEMBLY Lower Sash 26 12 187 STRAP Hinge Torque Rod 7 12 180 STRIP Glass Run Outer 27 12 180 RETAINER ASSEMBLY Torque Rod Strap 8 12 180 CLIP Anti Rattle 28 12 187 PLATE Tail Gate Hinge 9 12 180 STRIP Glass Run Inner 29 12 187 RETAINER ASSEMBLY Hinge Torque Rod 10 12 195 CAM ASSEMBLY Lower Sash Channel 30 10 694 STRIP Drain Hole 11 12 180 CHANNEL ASSEMBLY Glass Run Side 31 12 269 RETAINER Weatherstrip Lower 12 12 203 SUPPORT ASSEMBLY 32 12 195 RETAINER Cover Panel Lower 13 12 269 WEATHERSTRIP Gate Lower 33 12 187 ROD Tail Gate Torque 14 12 212 BUMPER Support Body Side 34 12 195 COVER Access Hole 15 12 212 BUMPER Support Gate Side 35 12 242 CONTROL ASSEMBLY Lock Remote 16 10 571 PLATE Striker Adj Upper 36 12 242 CLIP Control Locking Rod 17 10 571 PLATE Striker Adi Lower 37 12 242 HANDLE Remote Control 18 12 237 SPACER Striker 38 12 195 SWITCH Electric Window Jamb 19 10 571 STRIKER ASSEMBLY Tail Gate Lock 39 12 242 SCREW Remote Control Handle 20 12 242 CLIP Control to Lock Rod 197O CHEVROLET MOTOR Dl lSlOl l GENERAL MOTORS CORPORATION RSA 3OA 12 1P
