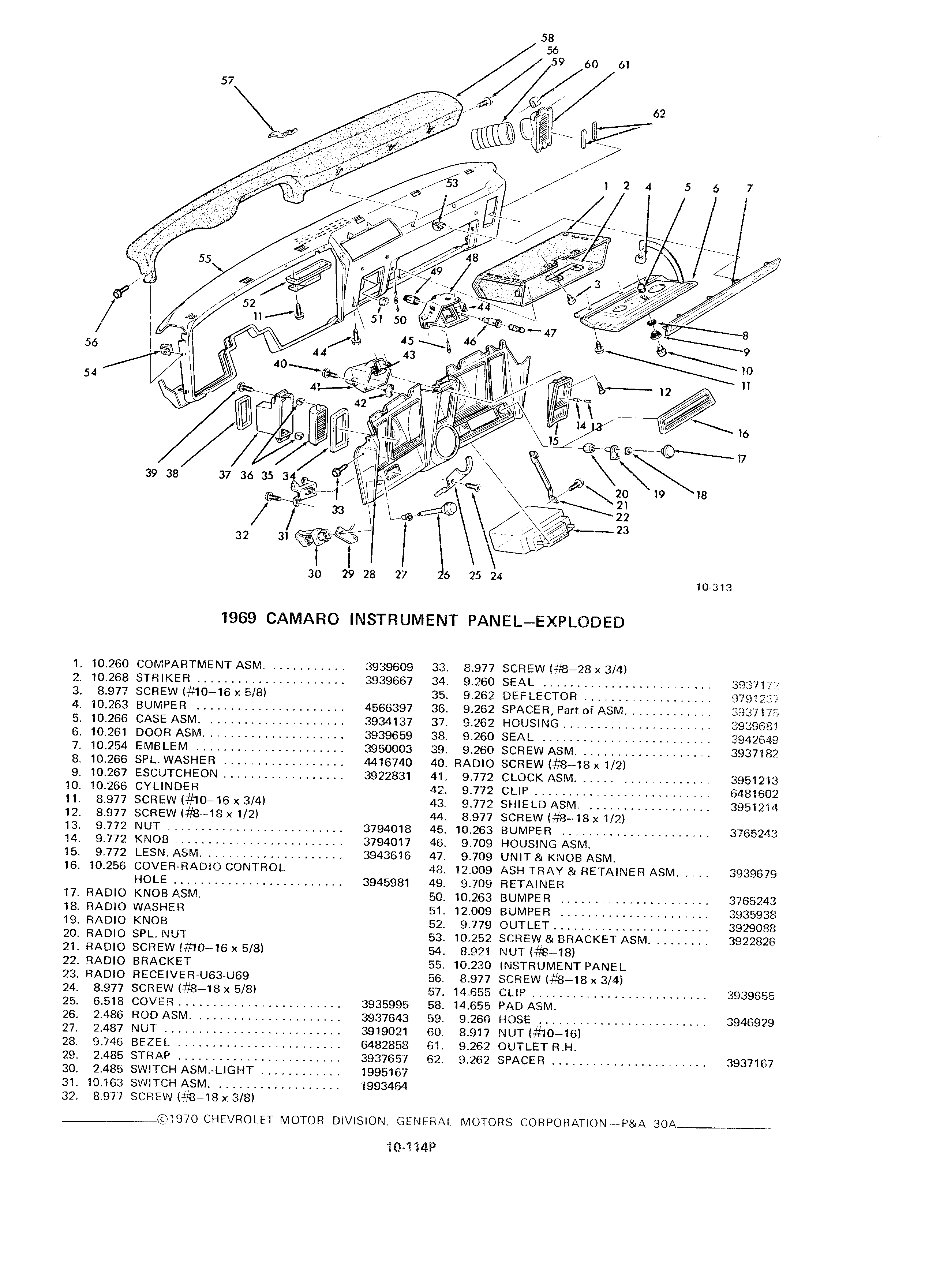

58 56 59 60 61 57 A r i gr iy 62 V V2 gy I 2 4 5 5 7 M ij V W 7 7 9O ff J2 l I 2 4 3 1 V g 55 i Q l V I Q 6y l IRG L J 4 52 gx Im I 5 h L r rr f 5 5 2 3 W 7 C5 47 T77 a 56 r Q 4 rg 2 46 l yw T I 4L i vw jg II 42 K W k E hy 1 T I4 Y 6 WS J I5 I 5 U 39 38 37 36 as 34 N2 E f IT Q7 1 O 19 I8 I I I v 23 30 29 28 27 6 25 24 10 313 1969 CAMARO INSTRUMENT PANEL EXPLODED 1 10 260 COMPARTMENT ASM 3939609 33 8 977 SCREW 98 28x3 4 2 10 268 STRIKER 3939667 34 9 260 SEAL 3937172 3 8 977 SCREW 10 16 x 5 8 35 9 262 DEF LECTOR 9791237 4 10 263 BUMPER 4566397 36 9 262 SPACER Part of ASM E93 I75 5 10 266 CASE ASM 3934137 37 9 262 HOUSING 3939681 6 10 261 DOOR ASM 3939659 38 9 260 SEAL 3942649 7 10 254 EMBLEM 3950003 39 9 260 SCREW ASM 3937182 8 10 266 SPL WASHER 4416740 40 RADIO SCREW 1 8 18x 1 2 9 10 267 ESCUTCHEON 3922831 41 9 772 CLOCK ASM 3951213 10 10 266 CYLINDER 42 9 772 CLIP 6481602 11 8 977 SCREW T I0 16x 3 4 43 9 772 SHIELD ASM 3951214 12 8 977 SCREW 8 18 x 1 2 44 8 977 SCREW ii 8 18x 1 2 13 9 772 NUT 3794018 45 10 263 BUMPER 3765243 14 9 772 KNOB 3794017 46 9 709 HOUSING ASM 15 9 772 LESN ASM 3943616 47 9 709 UNIT KNOB ASM 16 10 256 COVER RADIO CONTROL 48 12 009 ASH TRAY RETAINER ASM 3939679 HOLE 3945981 49 9 709 RETAINER 17 RADIO KNOB ASM 50 10 263 BUMPER 3765243 18 RADIO WASHER 51 12 009 BUMPER 3935938 19 RADIO KNOB 52 9 779 OUTLET 3929088 20 RADIO SPL NUT 53 10 252 SCREW BRACKET ASM 3922826 21 RADIO SCREW 10 16 x 5 8 54 8 921 NUT 3 18 22 RADIO BRACKET 55 10 230 INSTRUMENT PANEL 23 RADIO RECEIVER U63 U69 56 8 977 SCREW 8 18x 3 4 24 8 977 SCREW 8 18x 5 8 57 14 655 CLIP 3939655 25 6 518 COVER 3935995 58 14 655 PAD ASM 26 2 486 ROD ASM 3937643 59 9 260 HOSE 3946929 27 2 487 NUT 3919021 60 8 917 NUT 10 16 28 9 746 BEZEL 6482858 61 9 262 OUTLET R H 29 2 485 STRAP 3937657 62 9 262 SPACER 3937167 30 2 485 SWITCH ASM LIGHT 1995167 31 10 163 SWITCH ASM 1993464 32 8 977 SCREW i 8 18 x 3 8 1970 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 3OA t 10 114P
