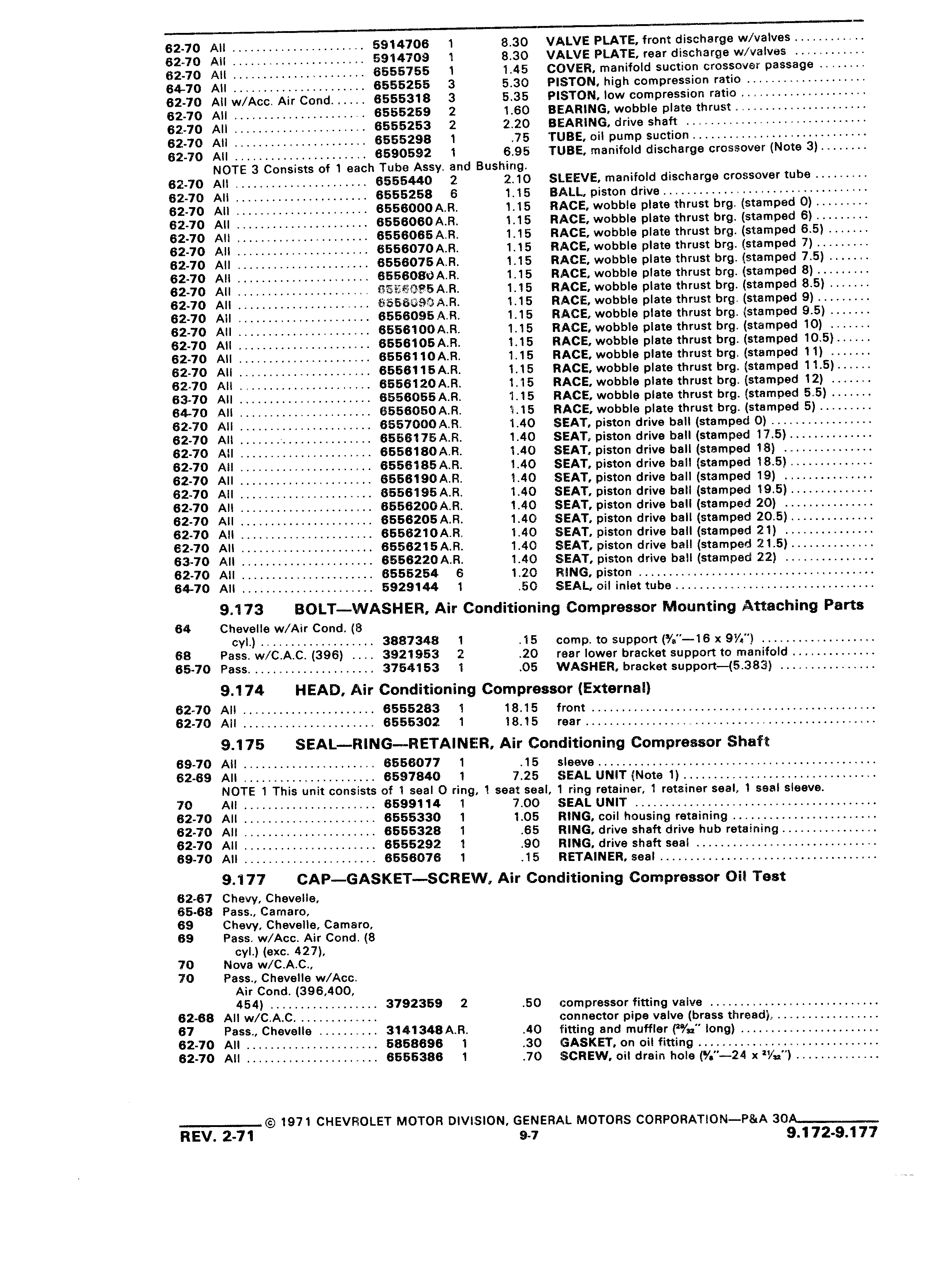

62 70 All V 5914706 1 8 30 VALVE PLATE front discharge w valves 62 70 All 5914709 1 8 30 VALVE PLATE rear discharge w valves 62 70 All 8555755 1 1 45 COVER manifold suction crossover passage 64 70 All A 6555255 3 5 30 PISTON high compression ratio 62 70 All w Acc Air Cond 6555318 3 5 35 PISTON low compression ratio 62 70 All 6555259 2 1 60 BEARING wobble plate thrust 62 70 All 6555253 2 2 20 BEARING drive shaft 62 70 All 6555298 1 75 TUBE oil pump suction 62 70 All 6590592 1 6 95 TUBE manifold discharge crossover Note 3 NOTE 3 Consists of 1 each Tube Assy and Bushing 62 70 All 6555440 2 2 10 SLEEVE manifold discharge crossover tube 62 70 All 6555258 6 1 15 BALL piston drive 62 70 All 6556000 A R 1 15 RACE wobble plate thrust brg stamped 0 62 70 All 6556060 A R 1 15 RACE wobble plate thrust brg stamped 6 62 70 All 6556065 A R 1 15 RACE wobble plate thrust brg stamped 6 5 62 70 All 6556070 A R 1 15 RACE wobble plate thrust brg stamped 7 62 70 All 6556075 A R 1 15 RACE wobble plate thrust brg stamped 7 5 62 70 All 6556080 A R 1 15 RACE wobble plate thrust brg stamped 8 62 70 All 6556085 A R 1 15 RACE wobble plate thrust brg stamped 8 5 62 70 All 6556090 A R 1 15 RACE wobble plate thrust brg stamped 9 62 70 All 6556095 A R 1 15 RACE wobble plate thrust brg stamped 9 5 62 70 All 6556100 LR 1 15 RACE wobble plate thrust brg stamped 10 62 70 All 6556105 A R 1 15 RACE wobble plate thrust brg stamped 10 5 62 70 All 6556110 A R 1 15 RACE wobble plate thrust brg stamped 11 62 70 All 65561 15A R 1 15 RACE wobble plate thrust brg stamped 11 5 62 70 All 6556120 A R 1 15 RACE wobble plate thrust brg stamped 12 63 70 All 6556055 A R 1 15 RACE wobble plate thrust brg stamped 5 5 64 70 All 6556050 A R 1 15 RACE wobble plate thrust brg stamped 5 62 70 All 6557000 A R 1 40 SEAT piston drive ball stamped 0 62 70 All 6556175 A R 1 40 SEAT piston drive ball stamped 17 5 62 70 Ail 65561BOA Fl 1 40 SEAT piston drive ball stamped 18 62 70 All 6556185 A R 1 40 SEAT piston drive ball stamped 18 5 62 70 All 6556190 A R 1 40 SEAT piston drive ball stamped 19 62 70 All 6556195 A R 1 40 SEAT piston drive ball stamped 19 5 62 70 All 6556200 A R 1 40 SEAT piston drive ball stamped 20 62 70 All 6556205 A R 1 40 SEAT piston drive ball stamped 20 5 62 70 All 6556210 A R 1 40 SEAT piston drive ball stamped 21 62 70 All 6556215 A R 1 40 SEAT piston drive ball stamped 21 5 63 70 All 6556220 A R 1 40 SEAT piston drive ball stamped 22 62 70 All 6555254 6 1 20 RING piston 64 70 All 5929144 1 50 SEAL oil inlet tube 9 173 BOLT WASHER Air Conditioning Compressor Mounting Attaching Parts 64 Chevelle w Air Cond B cyl 3887348 1 15 comp to support 16 x 9l 68 Pass w C A C 396 3921953 2 20 rear lower bracket support to manifold 65 70 Pass 3754153 1 05 WASHER bracket support 5 383 9 174 HEAD Air Conditioning Compressor External 62 70 All 6555283 1 18 15 front 62 70 All 6555302 1 18 15 rear 9 175 SEAL RING RETAINER Air Conditioning Compressor Shaft 69 70 All 6556077 1 15 sleeve 62 69 All 6597840 1 7 25 SEAL UNIT Note 1 NOTE 1 This unit consists of 1 seal O ring 1 seat seal 1 ring retainer 1 retainer seal 1 seal sleeve 70 All 65991 14 1 7 00 SEAL UNIT 62 70 All 6555330 1 1 05 RING coil housing retaining 62 70 All 6555328 1 65 RING drive shaft drive hub retaining 62 70 All 6555292 1 90 RING drive shaft seal 69 70 All 6556076 1 15 RETAINER seal 9 177 CAP GASKET SCRE N Air Conditioning Compressor Oil Test 62 67 Chevy Chevelle 65 68 Pass Camaro 69 Chevy Chevelle Camaro 69 Pass w Acc Air Cond 8 cyl exc 427 70 Nova w C A C 70 Pass Chevelle w Acc Air Cond 396 400 454 3792359 2 50 compressor fitting valve 62 68 All w C A C connector pipe valve brass thread 67 Pass Chevelle 3141348 A R 40 liitting and muffler long 62 70 All 5858696 1 30 GASKET on oil fitting 62 70 All 6555386 1 70 SCREW oil drain hole Y 24 x Wu 1971 CHEVROLET MOTOR DIVIISION GENERAL MOTORS CORPORATlON P A 30A REV 2 71 9 7 9 1 72 9 177
