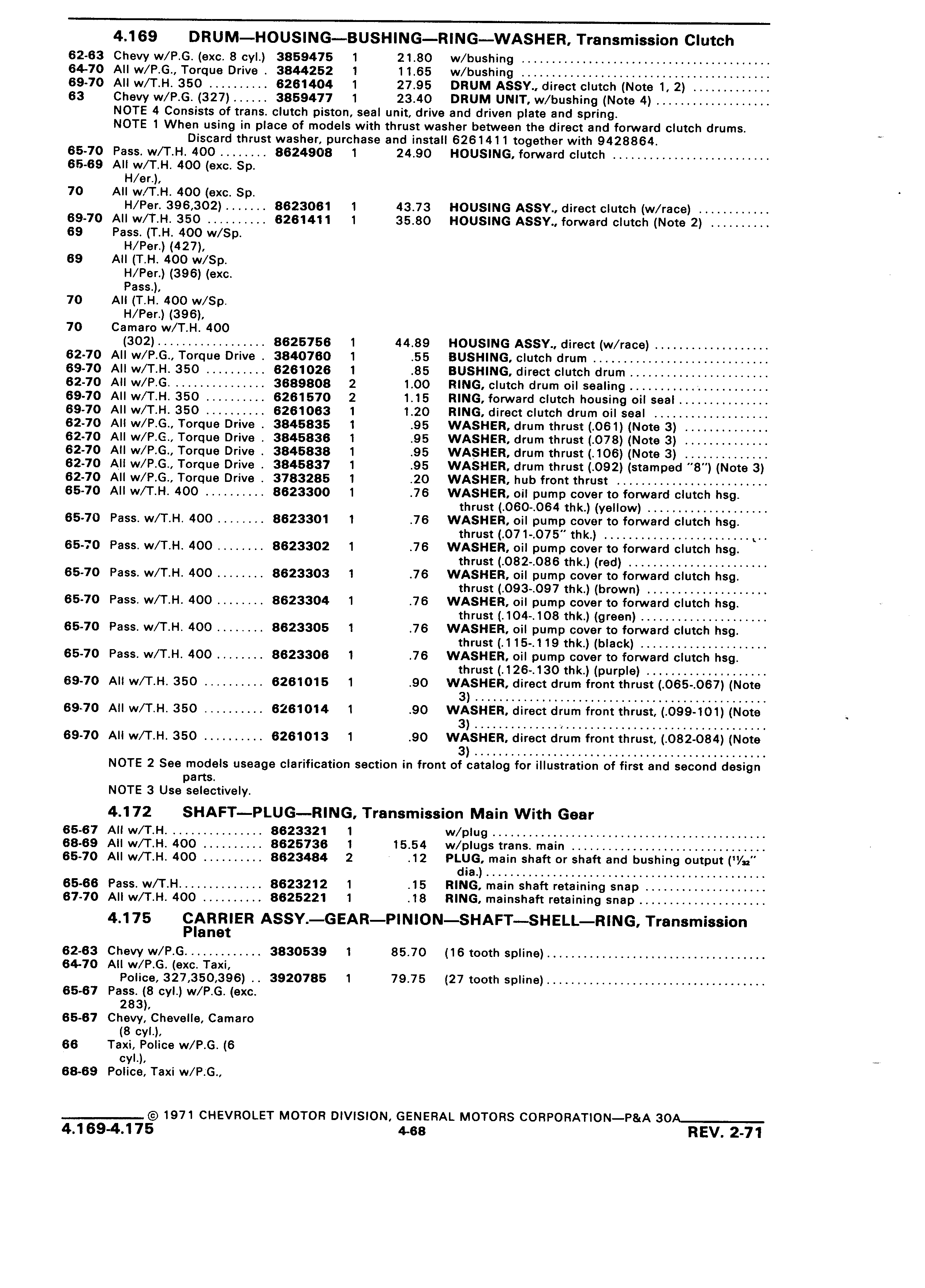

4 169 DRUM HOUSING BUSHING RlNG WASHER Transmission Clutch 62 63 Chevy w P G exc 8 cyl 3859475 1 21 80 w bushing 64 70 All w P G Torque Drive 3844252 1 11 65 w bushing 69 70 All w T H 350 6261404 1 27 95 DRUM ASSY direct clutch Note 1 2 63 Chevy w P G 327 3859477 1 23 40 DRUM UNIT w bushing Note 4 NOTE 4 Consists of trans clutch piston seal unit drive and driven plate and spring NOTE 1 When using in place of models with thrust washer between the direct and forward clutch drums W Discard thrust washer purchase and install 6261411 together with 9428864 65 70 Pass w T H 400 8624908 1 24 90 HOUSING forward clutch 65 69 All w T H 400 exc Sp H er 70 All w T H 400 exc Sp H Per 396 302 8623061 1 43 73 HOUSING ASSY direct clutch w race 69 70 All w T H 350 6261411 1 35 80 HOUSING ASSY forward clutch Note 2 69 Pass T H 400 w Sp H Per 427 69 All T H 400 w Sp H Per 396 exc Pass 70 All T H 400 w Sp H Per 396 70 Camaro w T H 400 302 8625756 1 44 89 HOUSING ASSY direct w race 62 70 All w P G Torque Drive 3840760 1 55 BUSHING clutch drum 69 70 All w T H 350 6261026 1 85 BUSHING direct clutch drum 62 70 All w P G 3689808 2 1 00 RING clutch drum oil sealing 69 70 All w T H 350 6261570 2 1 15 RING forward clutch housing oil seal 69 70 All w T H 350 6261063 1 1 20 RING direct clutch drum oil seal 62 70 All w P G Torque Drive 3845835 1 95 WASHER drum thrust 061 Note 3 62 70 All w P G Torque Drive 3845836 1 95 WASHER drum thrust 078 Note 3 62 70 All w P G Torque Drive 3845838 1 95 WASHER drum thrust 106 Note 3 62 70 All w P G Torque Drive 3845837 1 95 WASHER drum thrust 092 stamped 8 Note 3 62 70 All w P G Torque Drive 3783285 1 20 WASHER hub front thrust 65 70 All w T H 400 8623300 1 76 WASHER oil pump cover to forward clutch hsg thrust 060 064 thk yellow 65 70 Pass w T H 400 8623301 1 76 WASHER oil pump cover to forward clutch hsg thrust 071 075 thk 65 70 Pass w T H 400 8623302 1 76 WASHER oil pump cover to forward clutch hsg thrust 082 086 thk red 65 70 Pass w T H 400 8623303 1 76 WASHER oil pump cover to forward clutch hsg thrust 093 097 thk brown 65 70 Pass w T H 400 8623304 1 76 WASHER oil pump cover to forward clutch hsg thrust 104 108 thk green 65 70 Pass w T H 400 8623305 1 76 WASHER oil pump cover to forward clutch hsg thrust 1 15 119 thk black 65 70 Pass w T H 400 8623306 1 76 WASHER oil pump cover to forward clutch hsg thrust 126 130 thk purple 69 70 All w T H 350 6261015 1 90 WASHER direct drum front thrust 065 067 Note 3 69 70 All w T H 350 6261014 1 90 WASHER direct drum front thrust 099 101 Note 3 69 70 All w T H 350 6261013 1 90 WASHER direct drum front thrust 082 084 Note 3 NOTE 2 See models useage clarification section in front of catalog for illustration of first and second design parts NOTE 3 Use selectively 4 172 SHAFT PLUG RlNG Transmission Main With Gear 65 67 All w T H 8623321 1 w plug 68 69 All w T H 400 8625736 1 15 54 w plugs trans main V 65 70 All w T H 400 8623484 2 12 PLUG main shaft or shaft and bushing output V dia 65 66 Pass w T H 8623212 1 15 RING main shaft retaining snap 67 70 All w T H 400 8625221 1 18 RING mainshaft retaining snap 4 175 CARRIER ASSY GEAR PINlON SHAFT SHELL RING Transmission Planet 62 63 Chevy w P G 3830539 1 85 70 16 tooth spline 64 70 All w P G exc Taxi Police 327 350 396 3920785 1 79 75 27 tooth spline 65 67 Pass 8 cyl w P G exc 283 65 67 Chevy Chevelle Camaro 8 cyl 66 Taxi Police w P G 6 cyl ri 68 69 Police Taxi w P G 1971 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATl0N P A 30A 1 4 1 69 4 175 4 68 REV 2 7 1
