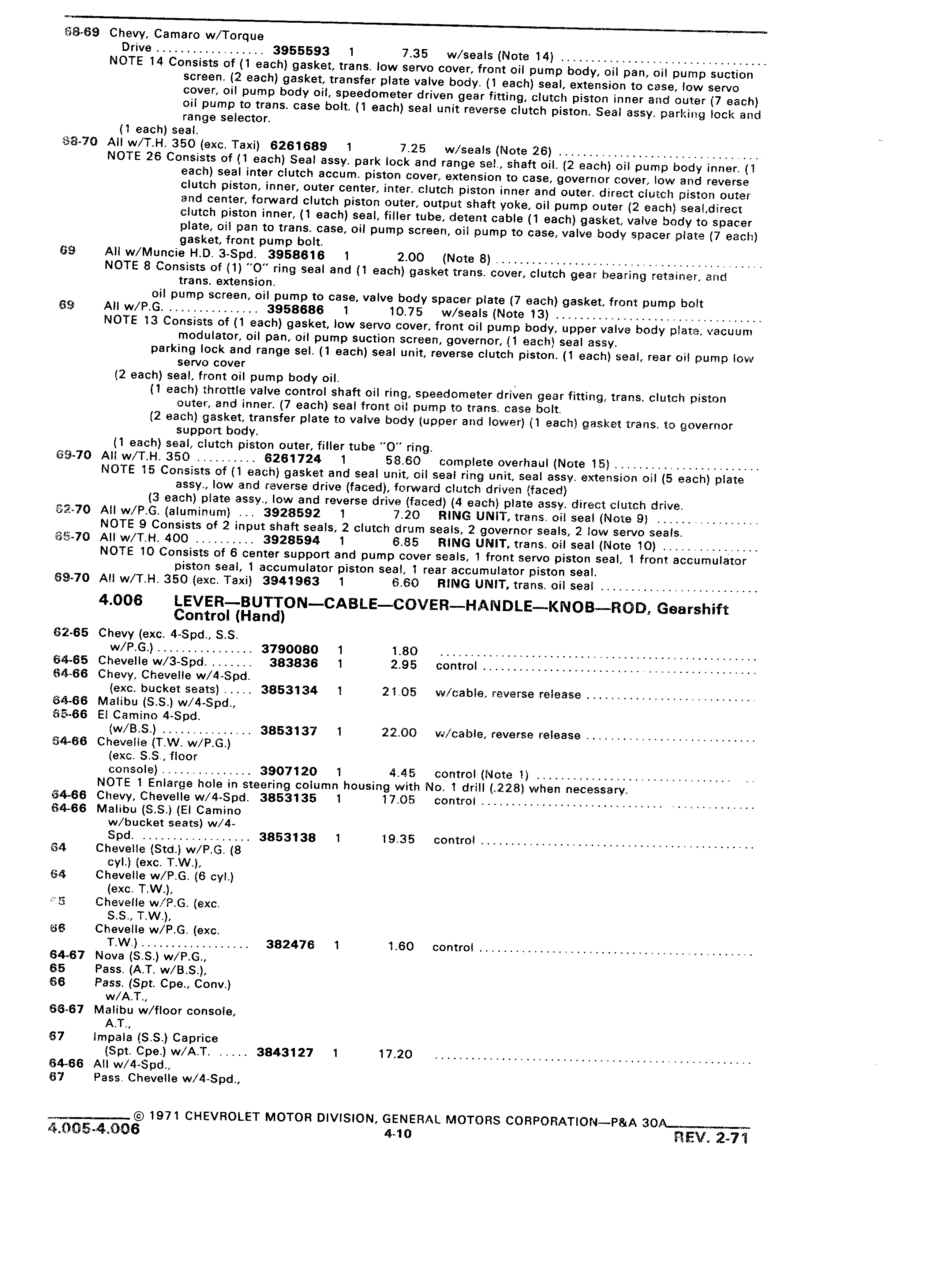

Drive 3955593 1 7 35 w seals Note 14 NOTE 14 Consists of 1 each gasket trans low servo cover front oil pump body oil pan oil pump suction screen 2 each gasket transfer plate valve body 1 each seal extension to case low servo cover oil pump body oil speedometer driven gear fitting clutch piston inner and outer 7 each oil pump to trans case bolt 1 each seal unit reverse clutch piston Seal assy parking lock and range selector 1 each seal r 68 70 All w T H 350 exc Taxi 6261689 1 7 25 w seals Note 26 NOTE 26 Consists of 1 each Seal assy park lock and range sel shaft oil 2 each oil pump body inner 1 each seal inter clutch accum piston cover extension to case governor cover low and reverse clutch piston inner outer center inter clutch piston inner and outer direct clutch piston outer and center forward clutch piston outer output shaft yoke oil pump outer 2 each sea direct clutch piston inner 1 each seal filler tube detent cable 1 each gasket valve body to spacer plate oil pan to trans case oil pump screen oil pump to case valve body spacer plate 7 each gasket front pump bolt 69 All w Muncie H D 3 Spd 3958616 1 2 00 Note 8 NOTE 8 Consists of 1 O ring seal and 1 each gasket trans cover clutch gear bearing retainer and trans extension oil pump screen oil pump to case valve body spacer plate 7 each gasket front pump bolt 69 All w P G 3958686 1 10 75 w seals Note 13 NOTE 13 Consists of 1 each gasket low servo cover front oil pump body upper valve body plate vacuum modulator oil pan oil pump suction screen governor 1 each seal assy parking lock and range sel 1 each seal unit reverse clutch piston 1 each seal rear oil pump low servo cover 2 each seal front oil pump body oil 1 each throttle valve control shaft oil ring speedometer driven gear fitting trans clutch piston outer and inner 7 each seal front oil pump to trans case bolt 2 each gasket transfer plate to valve body upper and lower 1 each gasket trans to governor support body 1 each seal clutch piston outer filler tube O ring 66 70 All w T H 350 6261724 1 58 60 complete overhaul Note 15 NOTE 15 Consists of 1 each gasket and seal unit oil seal ring unit seal assy extension oil 5 each plate assy low and reverse drive faced forward clutch driven faced 3 each plate assy low and reverse drive faced 4 each plate assy direct clutch drive 52 70 All w P G aluminum 3928592 1 7 20 RING UNIT trans oil seal Note 9 NOTE 9 Consists of 2 input shaft seals 2 clutch drum seals 2 governor seals 2 low servo seals 65 70 All w T H 400 3928594 1 6 85 RING UNIT trans oil seal Note 10 NOTE 10 Consists of 6 center support and pump cover seals 1 front servo piston seal 1 front accumulator piston seal 1 accumulator piston seal 1 rear accumulator piston seal 59 70 All w T H 350 exc Taxi 3941963 1 6 60 RING UNIT trans oil seal 4 006 LEVER BUTTON CABLE COVER HANDLE KNOB ROD Gearshift Control Hand 62 65 Chevy exc 4 Spd S S w P G 3790080 1 1 80 64 65 Chevelle w 3 Spd 383836 1 2 95 control 64 66 Chevy Chevelle w 4 Spd exc bucket seats 3853134 1 2105 vv cable reverse release 64 66 Malibu 5 w 4 Spd 5 66 El Camino 4 Spd w B S 3853137 1 22 00 w cable reverse release 64 66 Chevelle T W w P G exc S S floor console 3907120 1 4 45 control Note 1 NOTE 1 Enlarge hole in steering column housing with No 1 drill 228 when necessary 64 66 Chevy Chevelle w 4 Spd 3853135 1 17 05 control 64 66 Malibu 5 El Camino w bucket seats w 4 Spd 3853138 1 19 35 control 54 Chevelle Std w P G 8 cyl exc T W 4 Chevelle w P G 6 cyl exc T W 5 Chevelle w P G exc S S T W 66 Chevelle w P G exc T W 382476 1 1 60 control 64 67 Nova S S w P G 65 Pass A T w B S 66 Pass Spt Cpe Conv w A T 66 67 Malibu w floor console A T 67 Impala S S Caprice Spt Cpe w A T 3843127 1 17 20 64 66 All w 4 Spd 67 Pass Chevelle w 4 Spd 1971 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORAT ON P A 30 i Q05 4 06 4 10 REV 2 71
