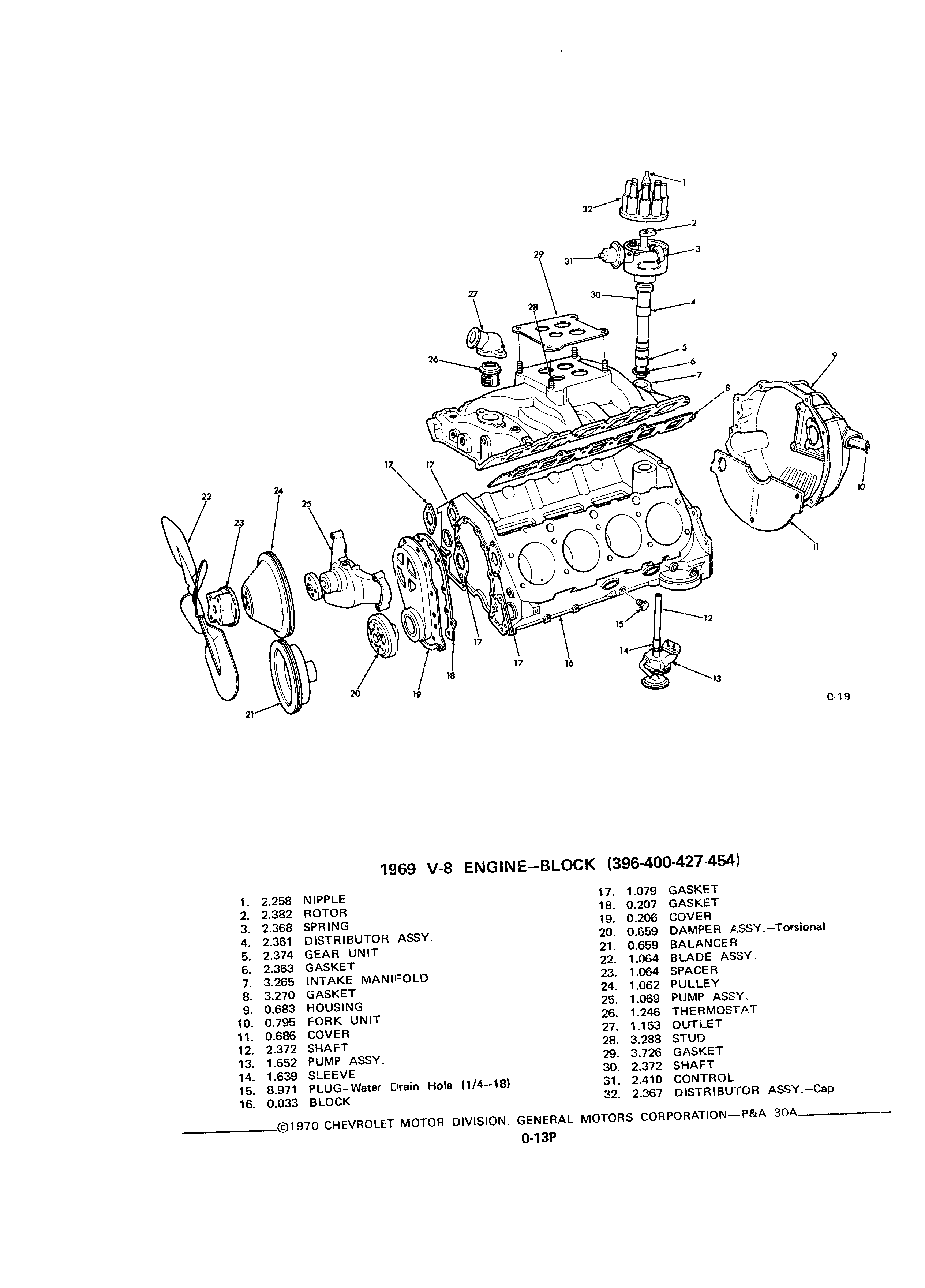

ri J I I 32 I7 2 ig i 27 30 i za E 4 0n I 6 i I 5 E A 7 7 I r Q ii s Q mm 0 0 IK W 2 g M Q 22 24 4 I no 25 O 0 23 Q 0 x I A F 1 M O 0 g Y 0 O A n n M do gk n 0 g I Im pkm 4 I5 I2 n I7 I4 I8 W M 20 9 2 I3 Q 0 19 1969 V 8 ENGlNE BLOCK 396 400 427 454 1 2 258 NIPPLE 17 1 079 GASKET 2 2 382 ROTOR 18 0 207 GASKET 3 2 368 SPRING 19 0 206 COVER 4 2 361 DISTRIBUTOR ASSY 20 0 659 DAMPER ASSY Tcrsional 5 2 374 GEAR UNIT 21 0 659 BALANCER 6 2 363 GASKET 22 1 064 BLADE ASSY 7 3 265 INTAKE MANIFOLD 23 1 064 SPACER 8 3 270 GASKET 24 1 062 PULLEY 9 0 683 HOUSING 25 1 069 PUMP ASSY 10 0 795 FORK UNIT 26 1 246 THERMOSTAT 11 0 686 COVER 27 1 153 OUTLET 12 2 372 SHAFT 28 3 288 STUD 13 1 652 PUMP ASSY 29 3 726 GASKET 14 1 639 SLEEVE 30 2 372 SHAFT 15 8 971 PLUG Water Drain Hole 1 4 18 31 2 410 CONTROL 16 0 033 BLOCK 32 2 367 DISTRIBUTOR ASSY Cap 197O CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 3OA 0 13P
