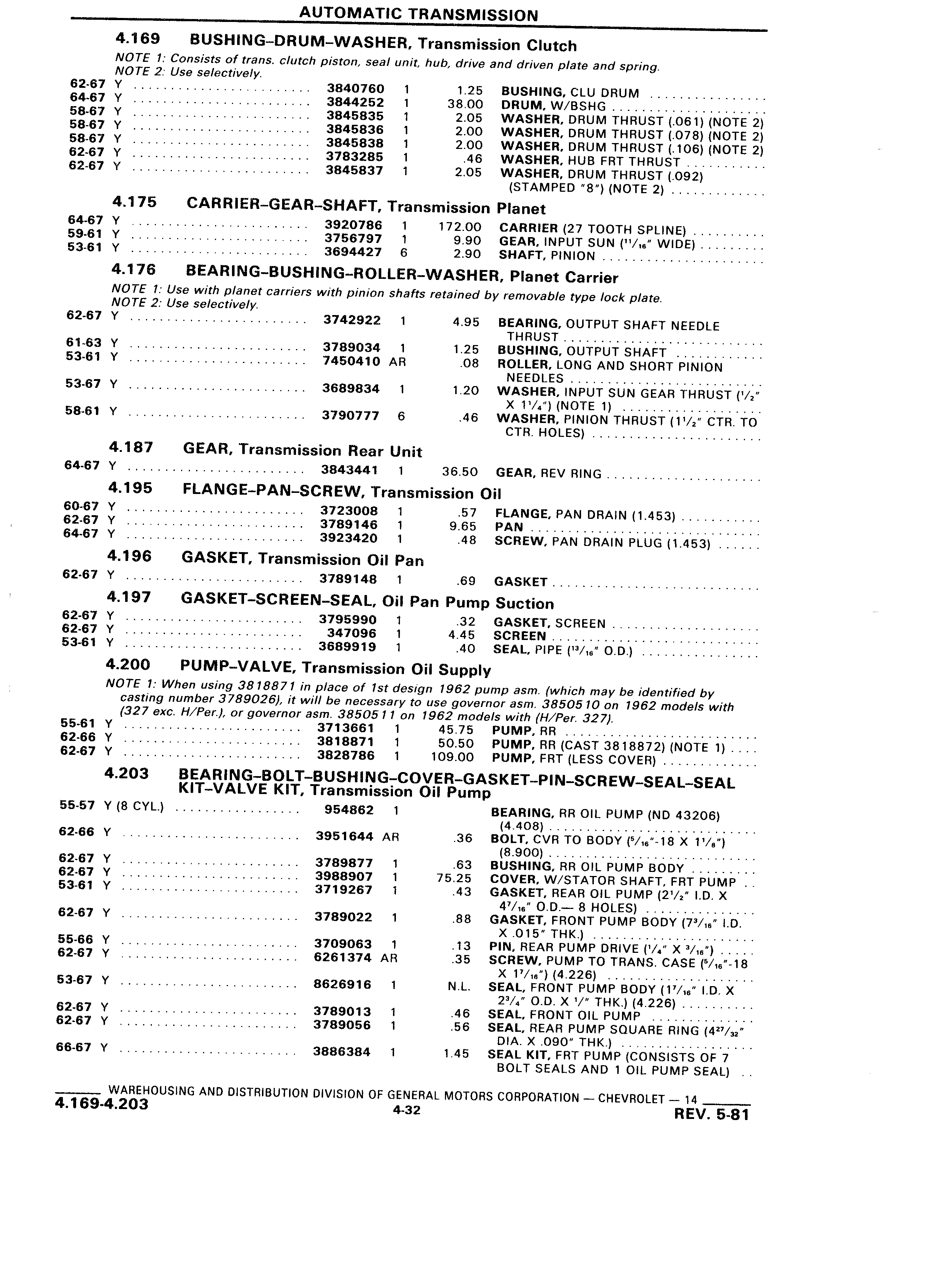

AUTOMATIC TRANSMISSION 4 169 BUSHING DRUM WASHER Transmission Clutch NOTE 1 Consists of trans clutch piston seal unit hub drive and driven plate and spring NOTE 2 Use selectively 62 67 Y 3840760 1 1 25 BUSHING CLU DRUM 64 67 Y 3844252 I 38 00 DRUM W BSHG 58 67 Y 3845835 1 2 05 WASHER DRUM THRUST 061 NOTE 2 58 67 Y 3845836 1 2 00 WASHER DRUM THRUST 078 NOTE 2 58 67 Y 3845838 1 2 00 WASHER DRUM THRUST 106 NOTE 2 62 67 Y 3783285 1 46 WASHER HUB FRT THRUST 62 67 Y 3845837 1 2 05 WASHER DRUM THRUST 092 STAMPED 8 NOTE 2 4 1 75 CARRIER GEAR SHAFT Transmission Planet 64 67 Y 3920786 1 172 00 CARRIER 27 TOOTH SPLINE 59 61 Y 3756797 1 9 90 GEAR INPUT SUN 6 WIDE 53 61 Y 3694427 6 2 90 SHAFT PINION 4 176 BEAR NG BUSHING ROLLER WASHER Planet Carrier NOTE 1 Use with planet carriers with pinion shafts retained by removable type lock plate NOTE 2 Use selectively 62 67 Y 3742922 1 4 95 BEARING OUTPUT SHAFT NEEDLE THRUST 61 63 Y 3789034 1 1 25 BUSHING OUTPUT SHAFT 53 61 Y 7450410 AR 08 ROLLER LONG AND SHORT PINION NEEDLES 53 67 Y 3689834 1 1 20 WASHER INPUT SUN GEAR THRUST z X 1 NOTE 1 58 61 Y 3790777 6 46 WASHER PINION THRUST 1 z CTR TO CTR HOLES 4 187 GEAR Transmission Rear Unit 64 67 Y 3843441 1 36 50 GEAR REV RING 4 195 FLANGE PAN SCREW Transmission Oil 60 67 Y 3723008 1 57 FLANGE PAN DRAIN 1 453 62 67 Y 3789146 1 9 65 PAN 64 67 Y 3923420 1 48 SCREW PAN DRAIN PLUG 1 453 4 196 GASKET Transmission Oil Pan 62 67 Y 3789148 1 69 GASKET 4 197 GASKET SCREEN SEAL Oil Pan Pump Suction 62 67 Y 3795990 1 32 GASKET SCREEN 62 67 Y 347096 1 4 45 SCREEN 53 61 Y 3689919 1 40 SEAL PIPE Is O D 4 200 PUMP VALVE Transmission Oil Supply NOTE 1 When using 3818871 in place of 1st design 1962 pump asm which may be identified by casting number 3789026 it will be necessary to use governor asm 3850510 on 1962 models with 327 exc H Per or governor asm 3850511 on 1962 models with H Per 327 55 61 Y 3713661 1 45 75 PUMP RR 62 66 Y 3818871 1 50 50 PUMP RR CAST 3818872 NOTE 1 62 67 Y 3828786 I 109 00 PUMP FRT LESS COVER 4 203 BEARING BOLT BUSHINGyCOV ER GASKET P N SCREW SEAL SEAL KIT VALVE KIT Transmission Oil Pump 55 57 Y 8 CYL 954862 1 BEARING RR OIL PUMP ND 43206 4 408 62 66 Y 3951644 AR 36 BOLT CVR TO BODY 5 Is 18 X 1 8 900 62 67 Y 3789877 1 63 BUSHING RR OIL PUMP BODY 62 67 Y 3988907 1 75 25 COVER W STATOR SHAFT FRT PUMP 53 61 Y 3719267 I 43 GASKET REAR OIL PUMP 2 z I D X 4 Is O D 8 HOLES 62 67 Y 3789022 1 88 GASKET FRONT PUMP BODY 7 Is I D X 015 THK 55 66 Y 3709063 1 13 PIN REAR PUMP DRIVE X IB 62 67 Y 6261374 AR 35 SCREW PUMP TO TRANS CASE 5 1 18 X I Is 4 226 53 67 Y 8626916 1 N L SEAL FRONT PUMP BODY 1 IS I D X 2 O D X THK 4 226 62 67 Y 3789013 1 46 SEAL FRONT OIL PUMP 62 67 Y 3789056 1 56 SEAL REAR PUMP SOUARE RING 4 az DIA X O90 THK 66 67 Y 3886384 1 1 45 SEAL KIT FRT PUMP CONSISTS OF 7 BOLT SEALS AND 1 OIL PUMP SEAL WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 14 4 169 4 203 4 32 REV 5 81
