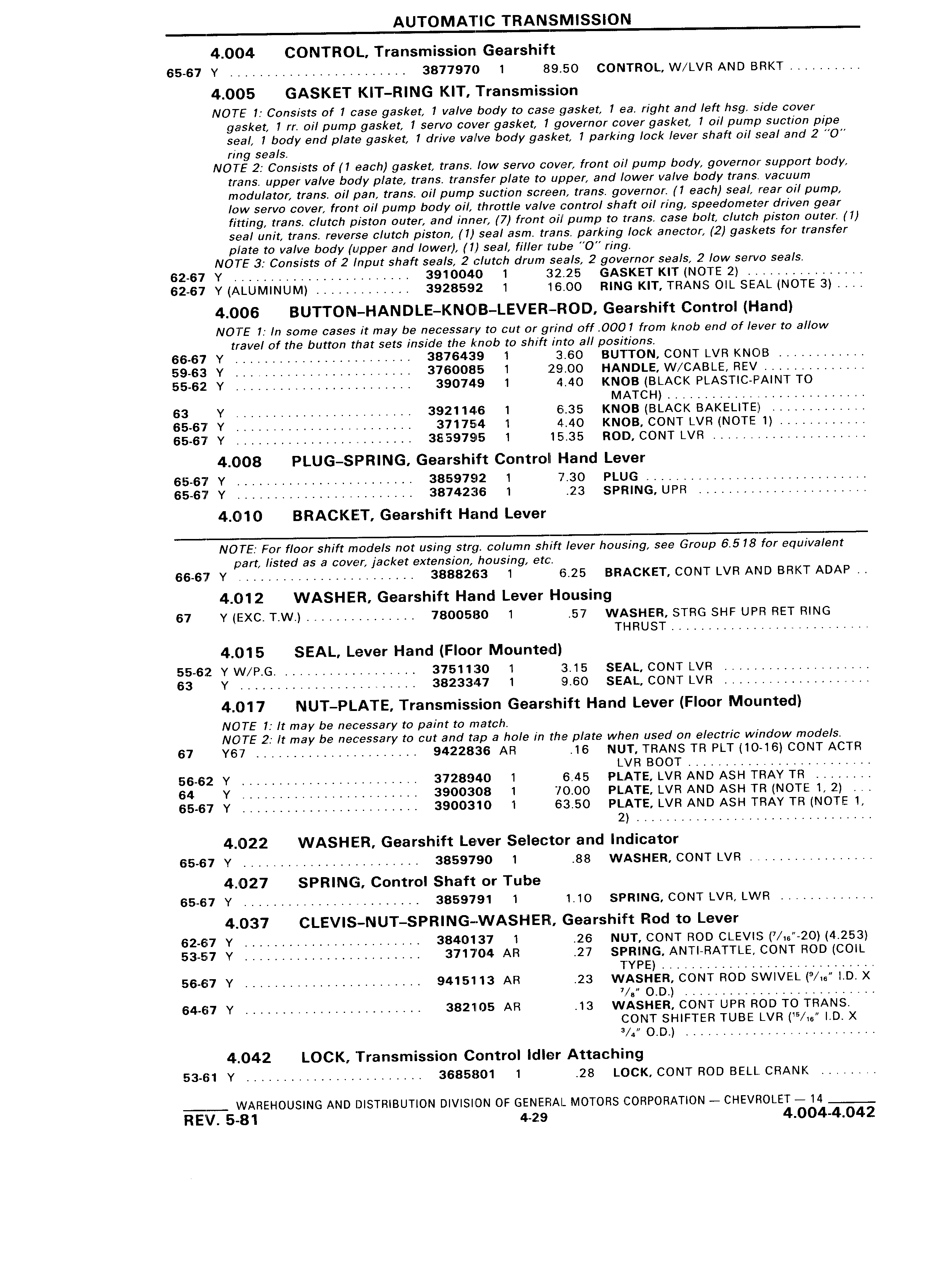

AUTOMATIC TRANSMISSION 4 004 CONTROL Transmission Gearshift 65 67 Y 387797 1 89 50 CONTROL W LVR AND BRKT 4 005 GASKET KIT RING KIT Transmission NOTE 1 Consists of 1 case gasket 1 valve body to case gasket 1 ea right and left hsg side cover gasket 1 rr oil pump gasket 1 servo cover gasket 1 governor cover gasket 1 oil pump suction pipe seal 1 body end plate gasket 1 drive valve body gasket 1 parking lock lever shaft oil seal and 2 O ring seals NOTE 2 Consists of 1 each gasket trans low servo cover front oil pump body governor support body trans upper valve body plate trans transfer plate to upper and lower valve body trans vacuum modulator trans oil pan trans oil pump suction screen trans governor 1 each seal rear oil pump low servo cover front oil pump body oil throttle valve control shaft oil ring speedometer driven gear fitting trans clutch piston outer and inner 7 front oil pump to trans case bolt clutch piston outer 1 seal unit trans reverse clutch piston 1 seal asm trans parking lock anector 2 gaskets for transfer pl ate to valve body upper and lower 1 seal filler tube O ring NOTE 3 Consists of 2 Input shaft seals 2 clutch drum seals 2 governor seals 2 low servo seals 62 67 Y 3910040 1 32 25 GASKET KIT NOTE 2 62 67 Y ALUMINUM 3928592 1 16 00 RING KIT TRANS OIL SEAL NOTE 3 4 006 BUTTON HANDLE KNOB LEVER ROD Gearshift Control Hand NOTE 1 ln some cases it may be necessary to cut or grind off 0001 from knob end of lever to allow travel of the button that sets inside the knob to shift into all positions 66 67 Y 3876439 1 3 60 BUTTON CONT LVR KNOB 59 63 Y 376008 5 1 129 00 HANDLE W CABLE REV 55 62 Y 39074 9 1 4 40 KNOB BLACK PLASTIC P A NT TO MATCH 63 Y 392114 6 1 6 35 KNOB BLACK BAKELITE 65 67 Y 371754 1 4 40 KNOB CONT LVR NOTE 1 65 67 Y 3859795 1 15 35 ROD CONT LVR 4 008 PLUG SPRING Gearshift Control Hand Lever 65 67 Y 3859792 1 7 30 PLUG 65 67 Y 3874236 1 23 SPRING UPR 4 010 BRACKET Gearshift Hand Lever NOTE For floor shift models not using strg column shi lever housing see Group 6 518 for equivalent part listed as a cover jacket extension housing etc 66 67 Y 3888263 1 6 25 BRACKET CONT LVR AND BRKT ADAP 4 012 WASHER Gearshift Hand Lever Housing 67 Y EXC T W 78005130 1 57 WASHER STRG SHF UPR RET RING THRUST 4 015 SEAL Lever Hand Floor Mounted 55 622 Y VV P G 37511230 1 J3 15 SEAL CONT LVR 63 Y 3823347 1 9 60 SEAL CONT LVR 4 017 NUT PLATE Transmission Gearshift Hand Lever Floor Mounted NOTE 1 lt may be nec essary to paint to match NOTE 2 It may be necessary to cut and tap a hole in the plate when used on electric window models 67 Y67 9422836 AR 16 NUT TRANS TR PLT 10 16 CONT ACTR LVR BOOT 56 62 Y 3728940 1 6 45 PLATE LVR AND ASH TRAY TR 64 Y 3900308 1 70 00 PLATE LVR AND ASH TR NOTE 1 2 65 67 Y 3900310 1 63 50 PLATE LVR AND ASH TRAY TR NOTE 1 2 4 022 WASHER Gearshift Lever Selector and Indicator 65 67 Y 3859790 1 88 WASHER CONT LVR 4 027 SPRING Control Shaft or Tube 65 67 Y 3859791 1 1 10 SPRING CONT LVR LVVR 4 037 CLEVIS NUT SPRING WASHERI Gearshift Rod to Lever 62 67 Y 3840137 1 26 NUT CONT ROD CLEVI 5 7 i6 20 4 253 53 557 Y 371704 AR 27 SPRING ANTI RATTLE CONT ROD COIL TYPE 56 67 Y 9415113 AR 23 WASHER CONT ROD SWIVEL S IE I D X 7 0 0 64 67 Y 3821105 AR 13 WASHER CONT UPR ROD TO TRANS CONT SHIFTER TUBE LVR 5 IG D X S 4 O D 4 042 LOCK Transmission Control Idler Attaching 53 61 Y 3685801 1 28 LOCK CONT ROD BELL CRANK WAREHOUSING AND DISTRIBUTION DIVISION OF GENEFIAI MOTORS CORPORATION CHEVROLET 14 REV 5 81 4 29 4 004 4 042
