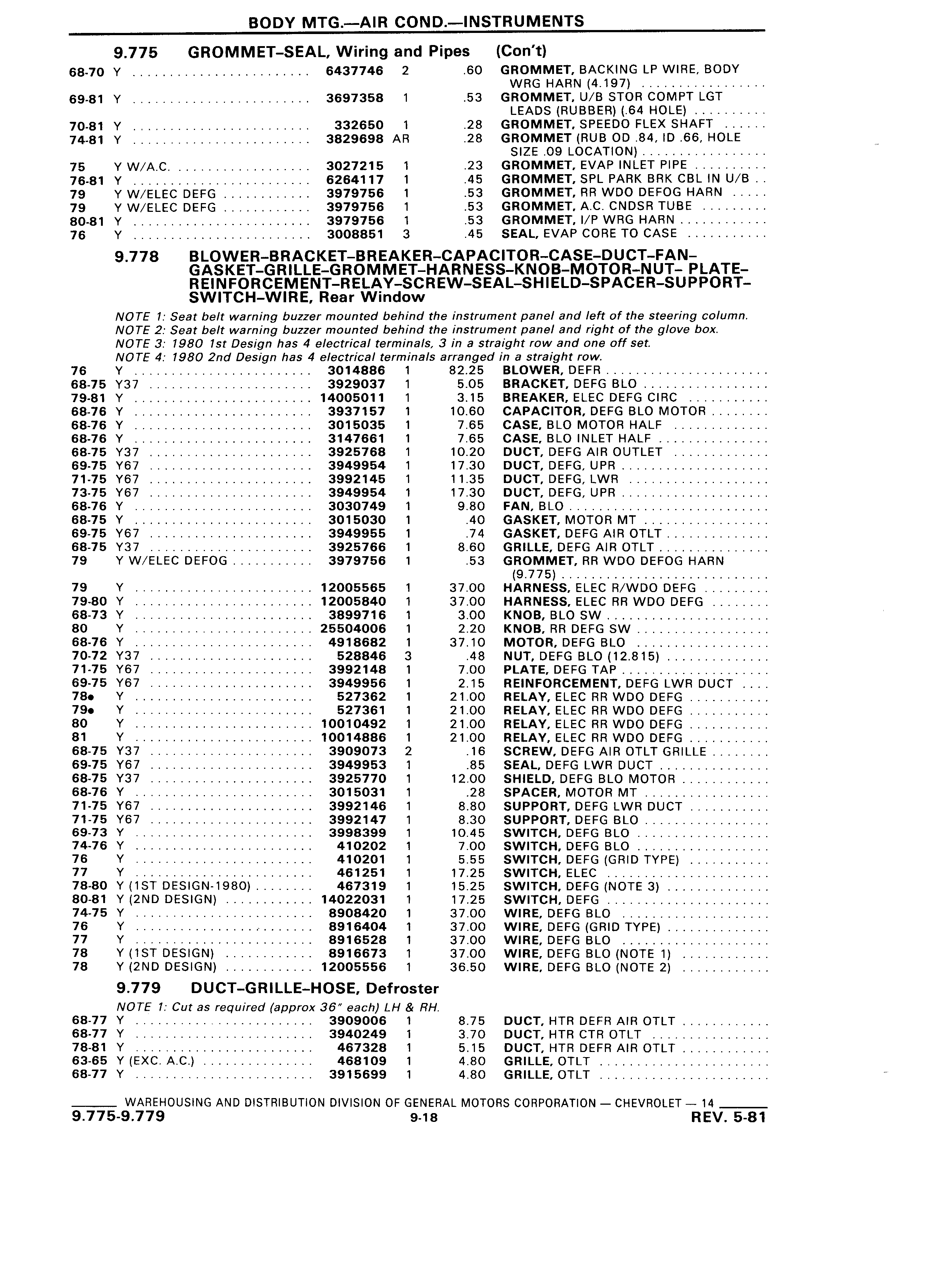

BODY MTG AIR COND lNSTRUMENTS 9 775 GROMMET SEAL Wiring and Pipes Con t 68 70 Y i 6437746 2 60 GROMMET BACKING LP WIRE BODY WRG HARN 4 197 69 81 Y 3697358 1 53 GROMMET U B STOR COMPT LGT LEADS RUBBER 64 HOLE 70 81 Y 332650 1 28 GROMMET SPEEDO FLEX SHAFT 74 81 Y 3829698 AR 28 GROMMET RUB OD 84 ID 66 HOLE SIZE 09 LOCATION 75 Y W A C 3027215 1 23 GROMMET EVAP INLET PIPE 76 81 Y 6264117 1 45 GROMMET SPL PARK BRK CBL IN U B 79 Y W ELEC DEFG 3979756 1 53 GROMMET RR WDO DEFOG HARN 79 Y W ELEC DEFG 3979756 1 53 GROMMET A C CNDSR TUBE 80 81 Y 3979756 1 53 GROMMET I P WRG HARN 76 Y 3008851 3 45 SEAL EVAP CORE TO CASE 9 778 BLOWER BRACKET BREAKER CAPACITOR CASE DUCT FAN GASKET GRILLE GROMMET HARNESS KNOB MOTOR NUT PLATE REINFORCEMENT RELAY SCREW SEAL SHIELD SPACER SUPPORT SWITCH WIRE Rear Window NOTE 1 Seat be t warning buzzer mounted behind the instrument panel and left ofthe steering column NOTE 2 Seat belt warning buzzer mounted behind the instrument panel and right of the glove box NOTE 3 1980 1st Design has 4 electrical terminals 3 in a straight row and one offset NOTE 4 1980 2nd Design has 4 electrical terminals arranged in a straight row 76 Y 3014886 1 82 25 BLOWER DEFR 68 75 Y37 3929037 1 5 05 BRACKET DEFG BLO 79 81 Y 14005011 1 3 15 BREAKER ELEC DEFG CIRC 68 76 Y 3937157 1 10 60 CAPACITOR DEFG BLO MOTOR 68 76 Y 3015035 1 7 65 CASE BLO MOTOR HALF 68 76 Y 3147661 1 7 65 CASE BLO INLET HALF 68 75 Y37 3925768 1 10 20 DUCT DEFG AIR OUTLET 69 75 Y67 3949954 1 17 30 DUCT DEFG UPR 71 75 Y67 3992145 1 11 35 DUCT DEFG LWR 73 75 Y67 3949954 1 17 30 DUCT DEFG UPR 68 76 Y 3030749 1 9 80 FAN BLO 68 75 Y 3015030 1 40 GASKET MOTOR MT 69 75 Y67 3949955 1 74 GASKET DEFG AIR OTLT 68 75 Y37 3925766 1 8 60 GRILLE DEFG AIR OTLT 79 Y W ELEC DEFOG 3979756 1 53 GROMMET RR WDO DEFOG HARN 9 775 79 Y 12005565 1 37 00 HARNESS ELEC R WDO DEFG 79 80 Y 12005840 1 37 00 HARNESS ELEC RR WDO DEFG 68 73 Y 3899716 1 3 00 KNOB BLO SW 80 Y 25504006 1 2 20 KNOB RR DEFG SW 68 76 Y 4918682 1 37 10 MOTOR DEFG BLO 70 72 Y37 528846 3 48 NUT DEFG BLO 12 815 71 75 Y67 3992148 1 7 00 PLATE DEFG TAP 69 75 Y67 3949956 1 2 15 REINFORCEMENT DEFG LWR DUCT 78 Y 527362 1 21 00 RELAY ELEC RR WDO DEFG 79 Y 527361 1 21 00 RELAY ELEC RR WDO DEFG 80 Y 10010492 1 21 00 RELAY ELEC RR WDO DEFG 81 Y 10014886 1 21 00 RELAY ELEC RR WDO DEFG 68 75 Y37 3909073 2 16 SCREW DEFG AIR OTLT GRILLE 69 75 Y67 3949953 1 85 SEAL DEFG LWR DUCT 68 75 Y37 3925770 1 12 00 SHIELD DEFG BLO MOTOR 68 76 Y 3015031 1 28 SPACER MOTOR MT 71 75 Y67 3992146 1 8 80 SUPPORT DEFG LWR DUCT 71 75 Y67 3992147 1 8 30 SUPPORT DEFG BLO 69 73 Y 3998399 1 10 45 SWITCH DEFG BLO 74 76 Y 410202 1 7 00 SWITCH DEFG BLO 76 Y 410201 1 5 55 SWITCH DEFG GRID TYPE 77 Y 461251 1 17 25 SWITCH ELEC 78 80 Y 1ST DESIGN 1980 467319 1 15 25 SWITCH DEFG NOTE 3 80 81 Y 2ND DESIGN 14022031 1 17 25 SWITCH DEFG 74 75 Y 8908420 1 37 00 WIRE DEFG BLO 76 Y 8 916404 1 37 00 WIRE DEFG GRID TYPE 77 Y 8916528 1 37 00 WIRE DEFG BLO 78 Y 1ST DESIGN 8916673 1 37 00 WIRE DEFG BLO NOTE 1 78 Y 2ND DESIGN 12005556 1 36 50 WIRE DEFG BLO NOTE 2 9 779 DUCT GRILLE HOSE Defroster NOTE 1 Cut as required approx 36 each LH RH 68 77 Y 3909006 1 8 75 DUCT HTR DEFR AIR OTLT 68 77 Y 3940249 1 3 70 DUCT HTR CTR OTLT 78 81 Y 467328 1 5 15 DUCT HTR DEFR AIR OTLT 63 65 Y EXC A C 468109 1 4 80 GRILLE OTLT 68 77 Y 3915699 1 4 80 GRILLE OTLT WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 14 9 775 9 779 9 18 REV 5 81
