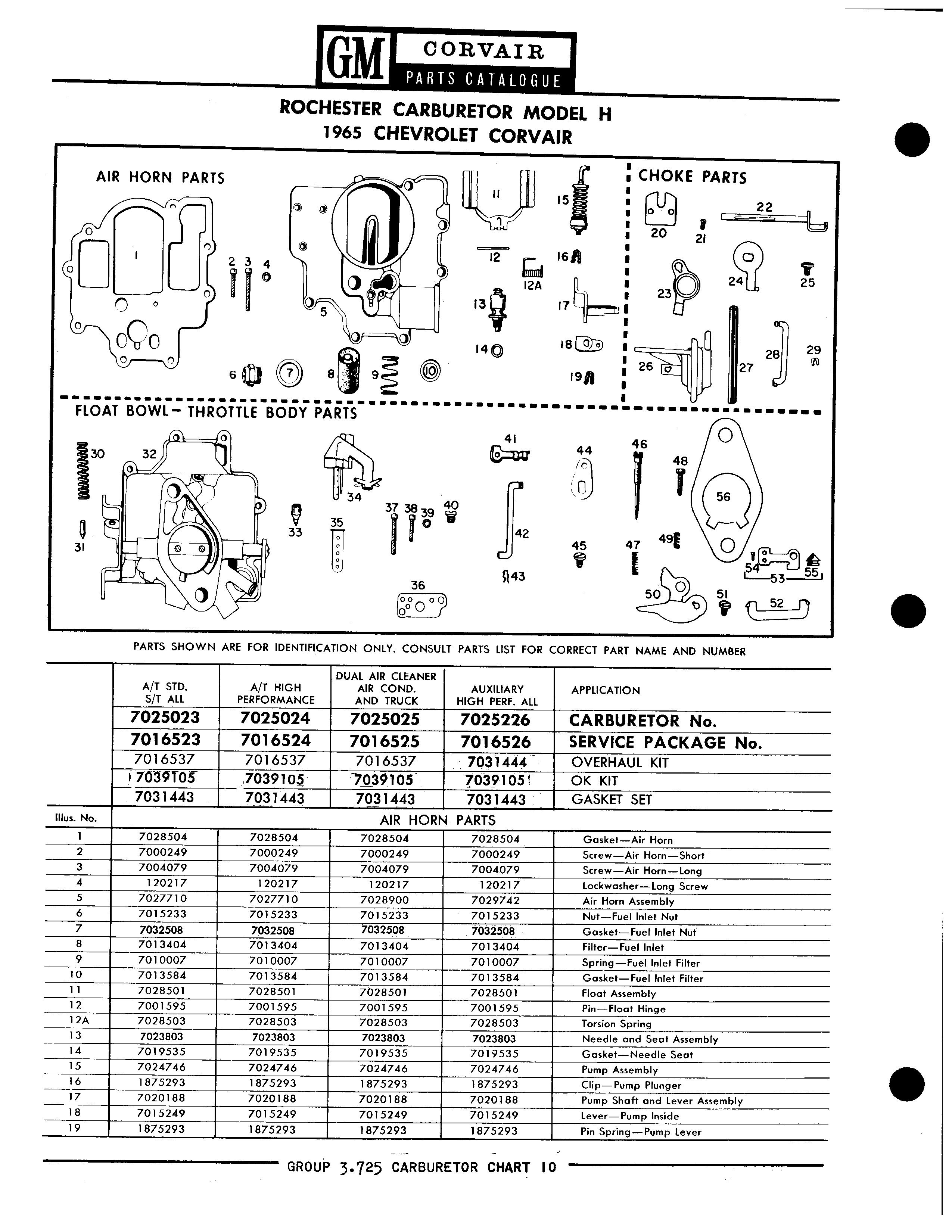

GM CORVAIR E v p ROCHESTER CARBURETOR MODEL H 1965 CHEVROLET CORVAIR AIR HORN PARTS i CHOKE PARTS I1 15 a 22 v 20 21 o I n Oo 12 16A 2 3 4 0 O 1 23O 24 25 J1 o O 5 13 I4 j 0 O O 0 14 l800 28 29 0 0 26 0 27 6 8 9 19A 1 1 1 FIOAT BOWL THROTTLE BODY PARTS o r 41 46 30 32 4 48 34 n 56 I 40 35 37 3839 142 47 qg Y 31 33 T7 45 0 Uo 36 43 50 0 51 L54 53 55 52 n 1000 0 D p PARTS SHOWN ARE FOR IDENTIFICATION ONLY CONSULT PARTS LIST FOR CORRECT PART NAME AND NUMBER DUAL AIR CLEANER A T STD A T HIGH AIR COND AUXILIARY APPLICATION S 7 ALL PERFORMANCE AND TRUCK HIGH PERF ALL 7025023 7025024 7025025 7025226 CARBURETOR No 7016523 7016524 7016525 7016526 SERVICE PACKAGE No 7016537 7016537 7016537 7031444 OVERHAUL KIT i7039T05 7039105 7 039105 7039105 OK KIT 7031443 7031443 7031443 7031443 GASKET SET Illus No AIR HORN PARTS 1 7028504 7028504 7028504 7028504 Gasket Air Horn 2 7000249 7000249 7000249 7000249 Screw Air Horn Short 3 7004079 7004079 7004079 7004079 Screw Air Horn Long 4 120217 120217 120217 120217 Lockwasher Long Screw 5 7027710 7027710 7028900 7029742 Air Horn Assembly 6 7015233 7015233 7015233 7015233 Nut Fuel Inlet Nut 7 7032508 7032508 7032508 7032508 Gasket Fuel Inlet Nut 8 7013404 7013404 7013404 7013404 Filter Fuel Inlet 9 7010007 7010007 7010007 7010007 Spring Fuel Inlet Filter 10 7013584 7013584 7013584 7013584 Gasket Fuel Inlet Filter 1 1 7028501 7028501 7028501 7028501 Float Assembly 1 2 7001595 7001595 7001595 7001595 Pin Float Hinge 12A 7028503 7028503 7028503 7028503 Torsion Spring 13 7023803 7023803 7023803 7023803 Needle and Seat Assembly 14 7019535 7019535 7019535 7019535 Gasket Needle Seat 15 7024746 7024746 7024746 7024746 Pump Assembly 16 1875293 1875293 1875293 1875293 Clip Pump Plunger 17 7020188 7020188 7020188 7020188 Pump Shaft and Lever Assembly 18 7015249 7015249 7015249 7015249 T Lever Pump Inside 19 1875293 1875293 1875293 1875293 Pin Spring Pump Lever
