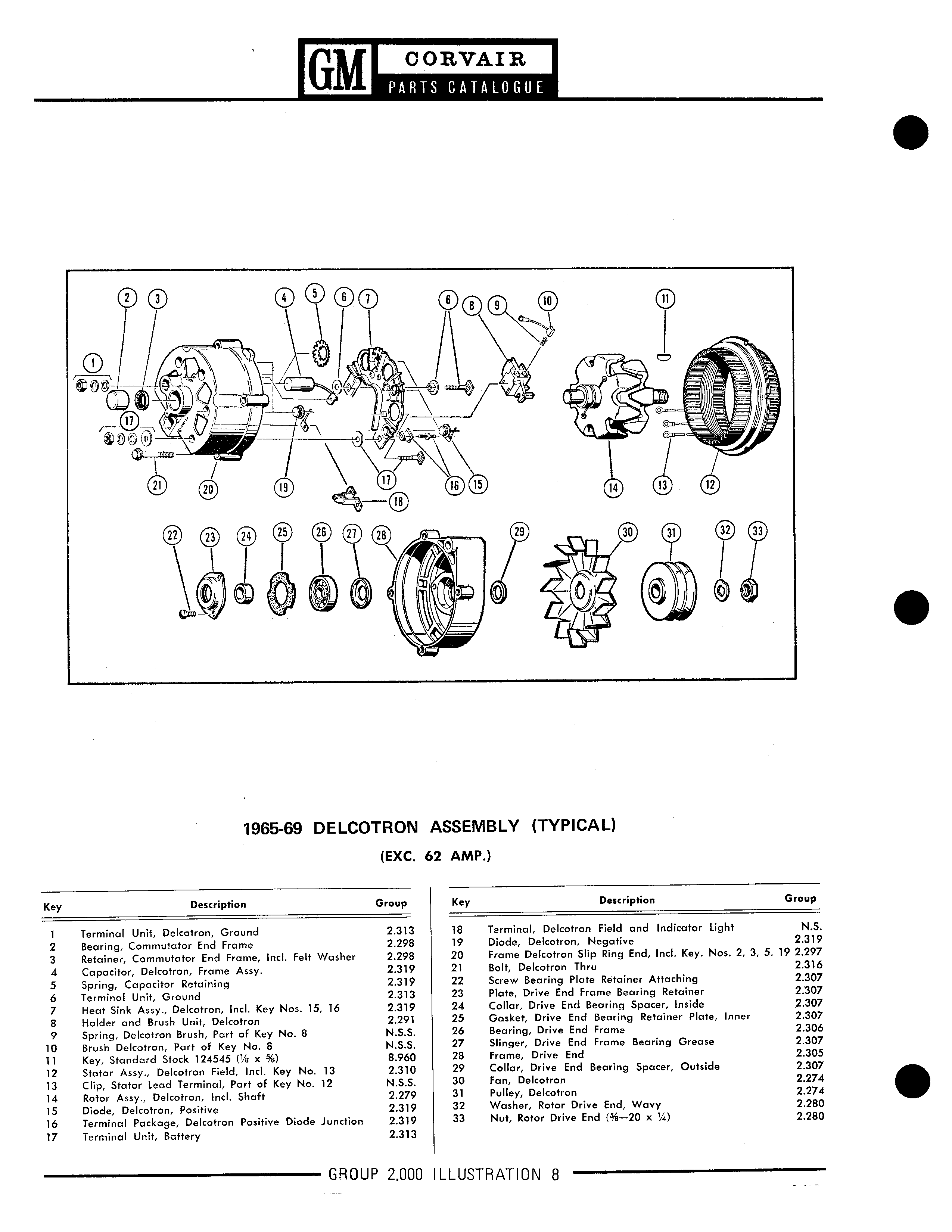

GM C ORVAI R 1 O OO OO g 10 11 C 7 I 21 20 lg O 16 15 14 13 12 22 23 24 25 26 21 p m o 29 30 31 32 33 yi n a 1965 69 DELCOTRON ASSEMBLY TYPICAL EXC 62 AMP Key Description Group Key Description Group 1 Terminal Unit Delcotron Ground 2 313 18 Terminal Delcotron Field and Indicator Light N S 2 Bearing Commutator End Frame 2 298 19 Diode Delcotron Negative 2 319 3 Retainer Commutator End Frame Incl Felt Washer 2 298 20 Frame Delcotron Slip Ring End Incl Key Nos 2 3 5 19 2 297 4 Capacitor Delcotron Frame Assy 2 319 21 Bolt Delcotron Thru 2 316 5 Spring Capacitor Retaining 2 319 22 Screw Bearing Plate Retainer Attaching 2 307 6 Terminal Unit Ground 2 313 23 Plate Drive End Frame Bearing Retainer 2 307 7 Heat Sink Assy Delcotron Incl Key Nos 15 16 2 319 24 Collar Drive End Bearing Spacer Inside 2 307 8 Holder and Brush Unit Delcotron 2 291 25 Gasket Drive End Bearing Retainer Plate Inner 2 307 9 Spring Delcotron Brush Part of Key No 8 N S S 26 Bearing Drive End Frame 2 306 10 Brush Delcotron Part of Key No 8 N S S 27 Slinger Drive End Frame Bearing Grease 2 307 11 Key Standard Stack 124545 1 8 x IN 8 960 28 Frame Drive End 2 305 12 Stator Assy Delcotron Field Incl Key No 13 2 310 29 Collar Drive End Bearing Spacer Outside 2 307 13 Clip Stator Lead Terminal Part of Key No 72 N S S 30 Fan Delcotron 2 274 14 Rotor Assy Delcotron Incl Shaft 2 279 31 Pulley Delcotron 2 274 15 Diode Delcotron Positive 2 319 32 Washer Rotor Drive End Wavy 2 280 16 Terminal Package Delcotron Positive Diode Junction 2 319 33 Nut Rotor Drive End s s 20 x Ya 2 280 17 r w i vt w a e 2 313
