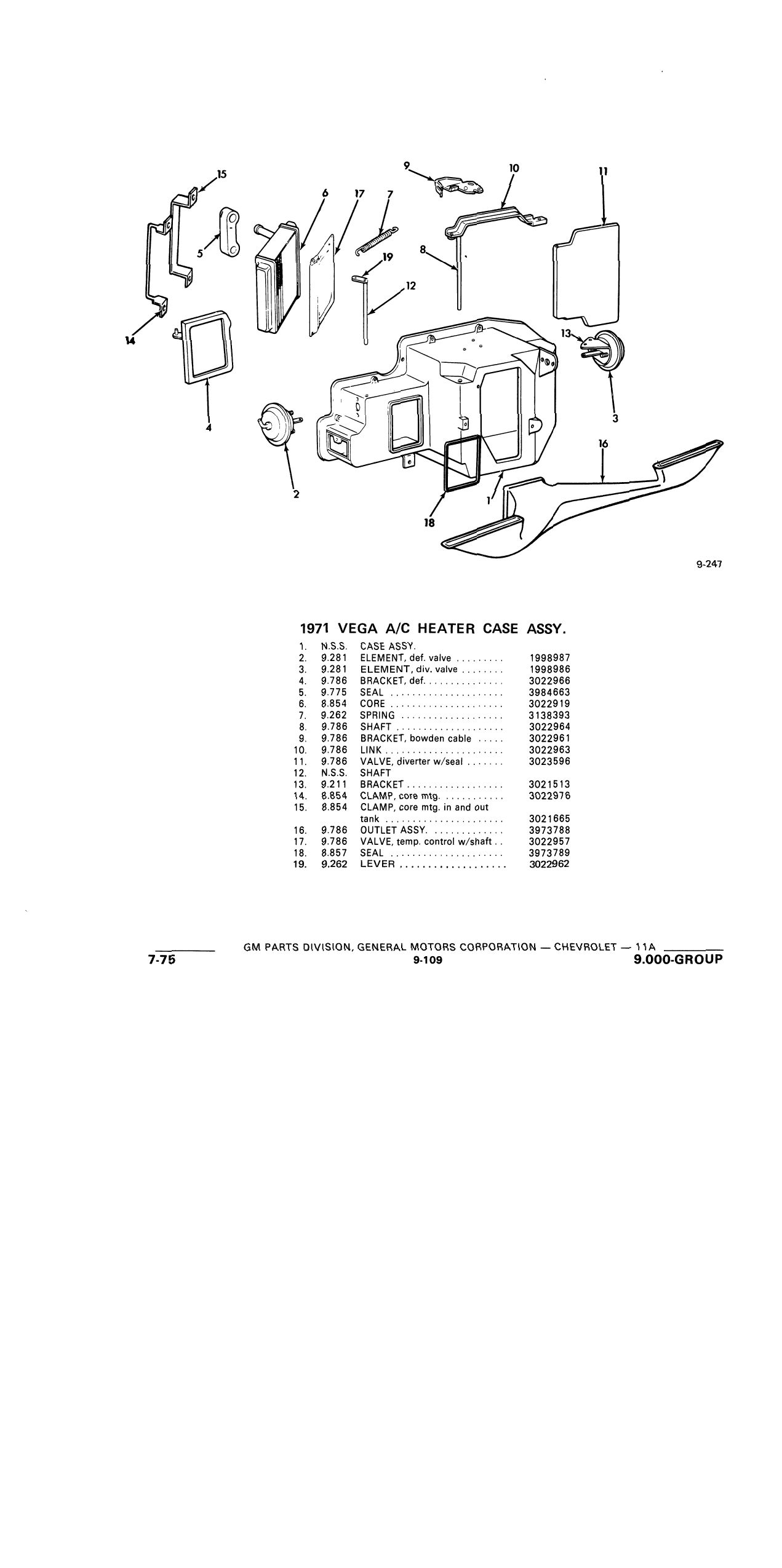

9 10 ts 1 Ng o n 1 5 1 w 1 L1 l I2 lll I u x 6 lh v T Q 3 V 1 D N1 1 rc U l Z I fj 9 247 1971 VEGA A C HEATER CASE ASSY 1 N S S CASE ASSY 2 9 281 ELEMENT dei valve 1998987 3 9 281 ELEMENT div valve 1998986 4 9 786 BRACKET dei 3022966 5 9 775 SEAL 3884663 6 8 854 CORE 3022919 7 9 262 SPRING 3138393 8 9 786 SHAFT 3022964 9 9 786 BRACKET bowden cable 3022961 10 9 786 LlNK 3022963 11 9 786 VALVE diverter w seal 3023596 12 N S S SHAFT 13 9 211 BRACKET 3021513 14 8 854 CLAMP core mg 3022976 15 8 854 CLAMP core mtg in and out tank 3021655 16 9 786 OUTLET ASSY 3973788 17 9 786 VALVE temp ccntrnl w shaft 3022957 18 8 857 SEAL 3973789 19 9 262 LEVER 3022962 GM PARTS DlV1S10N GENERAL MOTORS CORFORAUON CHEVROLET 11A 7 75 9 109 9 000 GROUP
