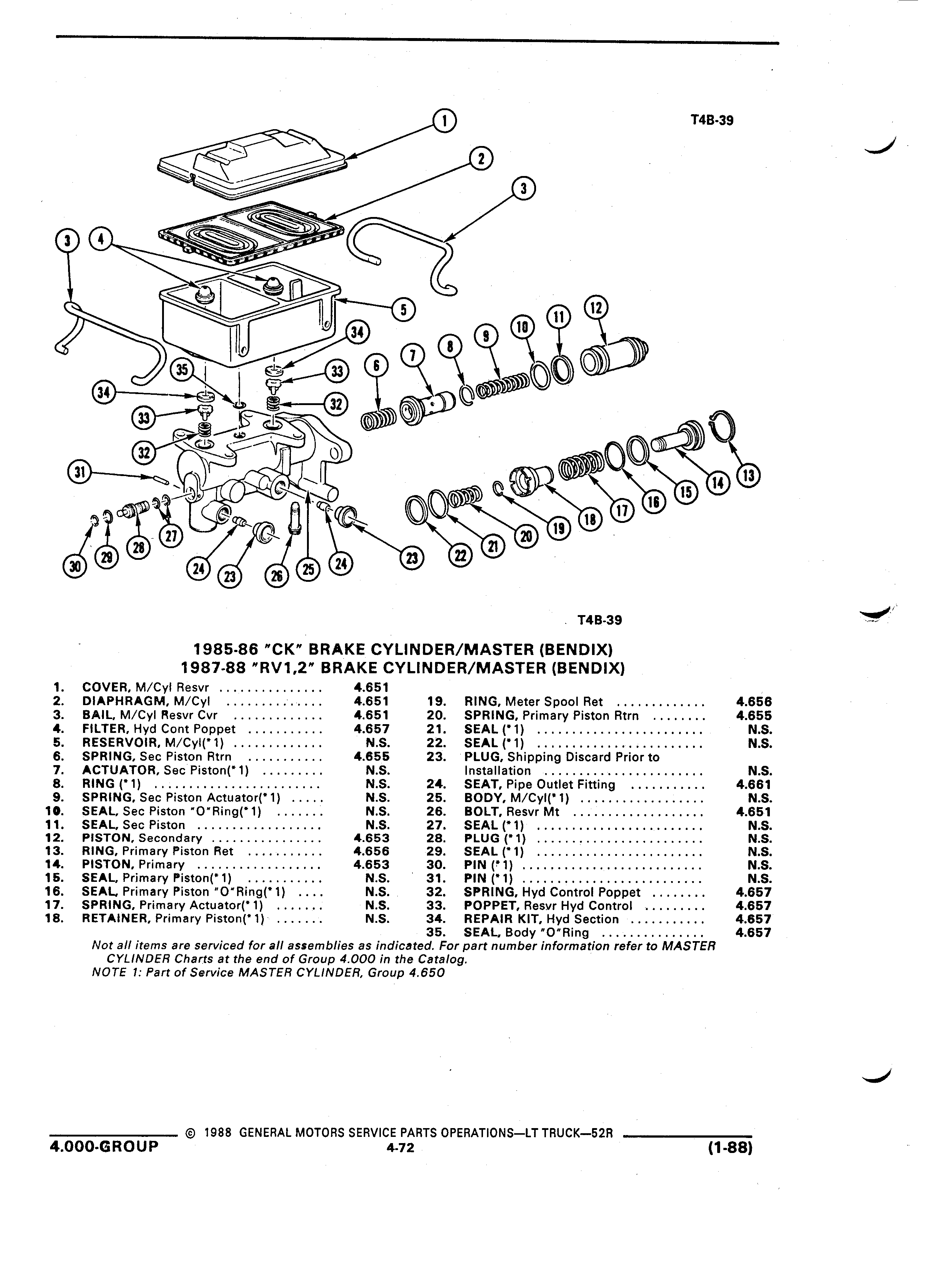

0 Tas as I K I Z 7 0 m i I t 0 Q I I E L I d a WI 1 Q v Q5 W 6 0 X 1 in 7 X Z N Q cg L 3 Q Q 6 o I T4B 39 1985 86 CK BRAKE CYLINDER MASTER BENDIX 1987 88 RV1 2 BRAKE CYLINDER MASTER BENDIX 1 COVER M Cyl Resvr 4 651 2 DIAPHRAGM M Cyl 4 651 19 RING Meter Spool Ret 4 656 3 BAIL M Cyl Resvr Cvr 4 651 20 SPRING Primary Piston Rtrn 4 655 4 FILTER Hyd Cont Poppet 4 657 21 SEAL 1 N S 5 REsEnvo1R M Cyl 1 N s 22 SEAL 1 N s 6 SPRING Sec Piston Rtrn 4 655 23 PLUG Shipping Discard Prior to 7 ACTUATOR Sec Piston 1 N S Installation N S 6 RING 1 N s 24 sEAT Pape Outlet Huang 4 661 9 SPRING Sec Piston Actuator 1 N S 25 BODY M Cyl 1 N S 10 SEAL Sec Piston O Ring 1 N S 26 BOLT Resvr Mt 4 651 11 SEAL Sec Piston N S 27 SEAL 1 N S 12 PISTON Secondary 4 653 28 PLUG 1 N S 13 RING Primary Piston Ret 4 656 29 SEAL 1 N S 14 PISTON Primary 4 653 30 PIN 1 N S 15 SEAL Primary Pist0n 1 N S 31 PIN 1 N S 16 SEAL Primary Piston O Ring 1 N S 32 SPRING Hyd Control Poppet 4 657 17 SPRING Primary Actuator 1 N S 33 POPPET Resvr Hyd Control 4 657 18 RETAINER Primary Piston 1 N S 34 REPAIR KIT Hyd Section 4 657 35 SEAL Body O Ring 4 657 Not all items are serviced for all assemblies as indicated For part number information refer to MASTER CYLINDER Charts at the end of Group 4 000 in the Catalog NOTE 1 Part of Service MASTER CYLINDER Group 4 650 I t 1988 GENERAL Motons SERVICE PARTS OPERATIONS LT TRUCK 52R 4 000 GROUP 4 72 1 88 A
