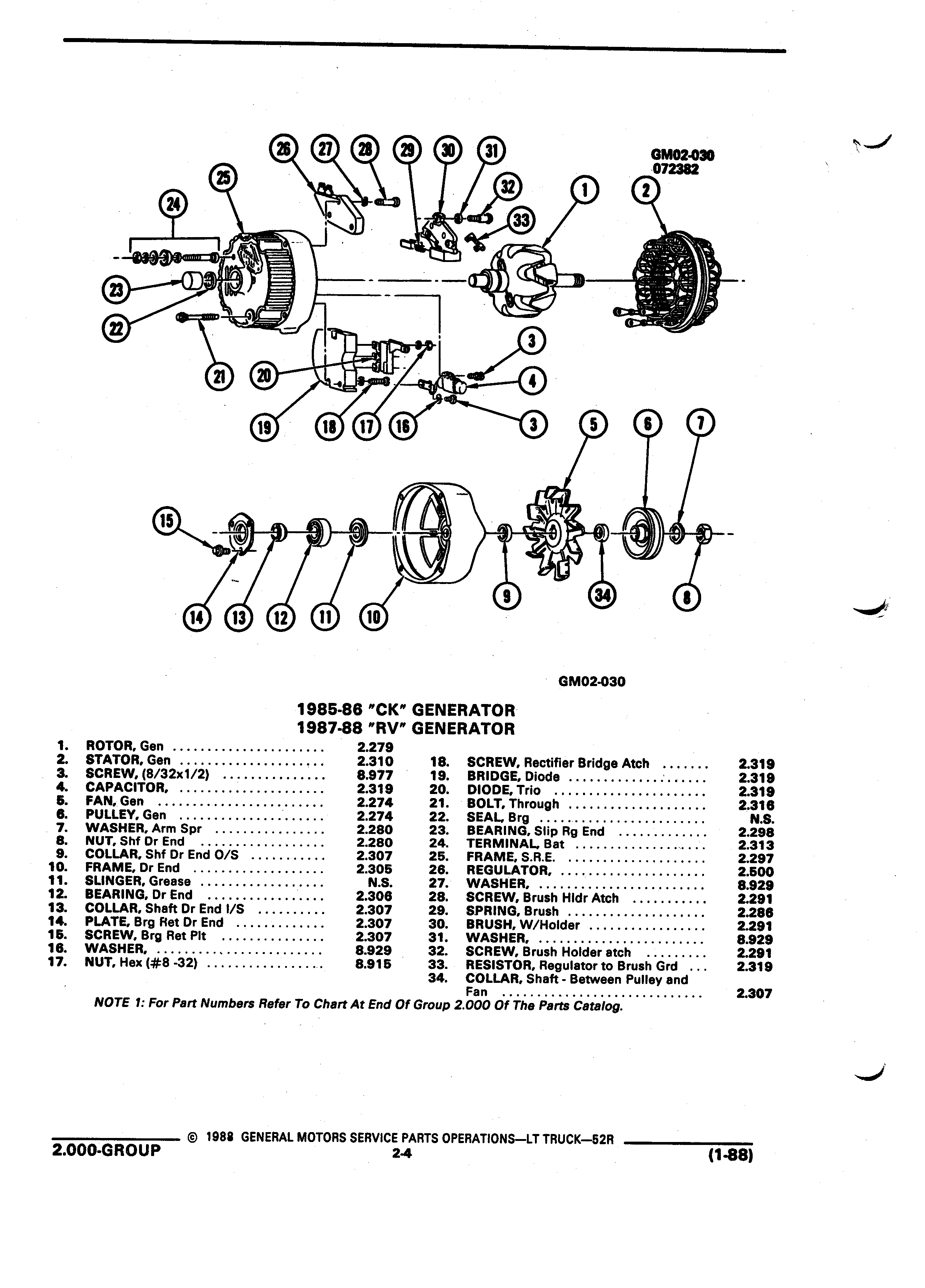

QQQQQQ mm he G g 072382 8 A NV 8 o L U 1 G9 ii i Ti A f 0 Zi I 2 G B Ltxyx I I I AP Q II 2 T Q x A IA 4 J 4 R 1 J r 1 I i 54 w I q x 1 I 1 jg Q Q Q Q Q 0 Q 0 GM02 030 1985 88 CK GENERATOR 1987 88 RV GENERATOR 1 ROTOR Gen 2 279 2 STATOR Gen 2 310 18 SCREW Rectifier Bridge Atch 2 319 3 SCREW 8 32x1 2 8 977 I 19 BRIDGE Diode 2 318 4 CAPACITOR 2 319 20 DIODE Trio 2 319 5 FAN Gen 2 274 21 BOLT Through 2 318 8 PULLEY Gen I 2 274 22 SEAL Brg N S 7 WASHER Arm Spr 2 280 23 BEARING Slip Rg End 2 298 8 NUT Shf Dr End 2 280 24 TERMINAL Bat s 2 313 9 COLLAR Shf Dr End O S 2 307 25 FRAME S R E 2 297 10 FRAME Dr End 2 305 28 REGULATOR 2 500 1 1 SLINGER Grease N S 27 WASHER 8 929 12 BEARING Dr End 2 308 28 SCREW Brush Hldr Atch 2 291 13 COLLAR Shaft Dr End l S 2 307 29 SPRING Brush 2 288 14 PLATE Brg Ret Dr End 2 307 30 BRUSH W Holder 2 291 15 SCREW Brg Ret Plt 2 307 31 WASHER 8 929 18 WASHER 8 929 V 32 SCREW Brush Holder atch 2 291 I7 NUT Hex 8 32 8 915 33 RESISTOR Regulator to Brush Grd 2 319 34 COLLAR Shaft Between Pulley and Fan 2 307 NOTE 1 For Part Numbers Refer To Chart At End Of Group 2 000 Of The Parts Catalog 1988 GENERAL MOTORS SERVICE PARTS 0PERATl0NS LT TRUCK 52R 2 000 GROUP 2 4 1 88
