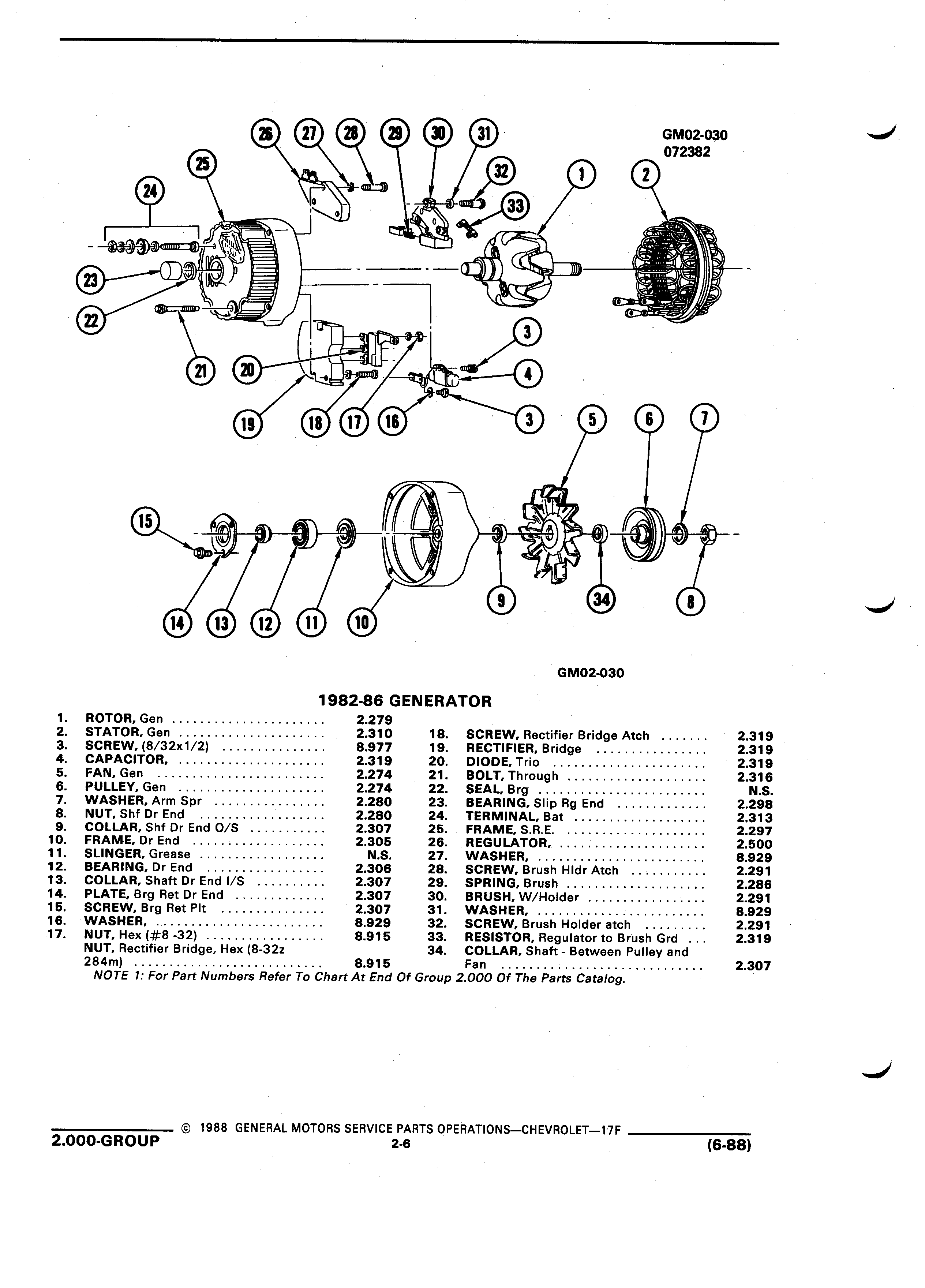

1 O Q 0 O O A 2 0 072382 E G 0 0 m l I 0 l Z 0 I 0 I KF r 8 2 I lg E EL yg V l hi Q I Q l Hr ll I k l he 7 g 3 Y cl s M m D 0 GD 0 4 GM02 030 I 1 982 86 GENERATOR 1 ROTOR Gen 2 279 2 STATOR Gen 2 310 18 SCREW Rectifier Bridge Atch 2 319 3 SCREW 8 32x1 2 8 977 19 RECTIFIER Bridge 2 319 4 CAPACITOR 2 319 20 DIODE Trio 2 319 5 FAN Gen 2 274 21 BOLT Through 2 316 6 PULLEY Gen 2 274 22 SEAL Brg N S 7 WASHER Arm Spr 2 280 23 BEARING Slip Rg End 2 298 8 NUT Shf Dr End 2 280 24 TERMINAL Bat 2 313 9 COLLAR Shf Dr End O S 2 307 25 FRAME S R E 2 297 10 FRAME Dr End 2 305 26 REGULATOR 2 500 11 SLINGER Grease N S 27 WASHER 8 929 12 BEARING Dr End 2 306 28 SCREW Brush Hldr Atch 2 291 13 COLLAR Shaft Dr End I S 2 307 29 SPRING Brush 2 286 14 PLATE Brg Ret Dr End 2 307 30 BRUSH W Holder 2 291 15 SCREW Brg Ret Plt 2 307 31 WASHER 8 929 16 WASHER 8 929 32 SCREW Brush Holder atch 2 291 17 NUT Hex 8 32 8 915 33 RESISTOR Regulator to Brush Grd 2 319 NUT Rectifier Bridge Hex 8 322 34 COLLAR Shaft Between Pulley and 284m 8 915 Fan 2 307 NOTE 1 For Part Numbers Refer To Chart At End Of Group 2 000 Of The Parts Catalog 1988 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET 1 7F L 2 000 GROUP 2 6 6 88
