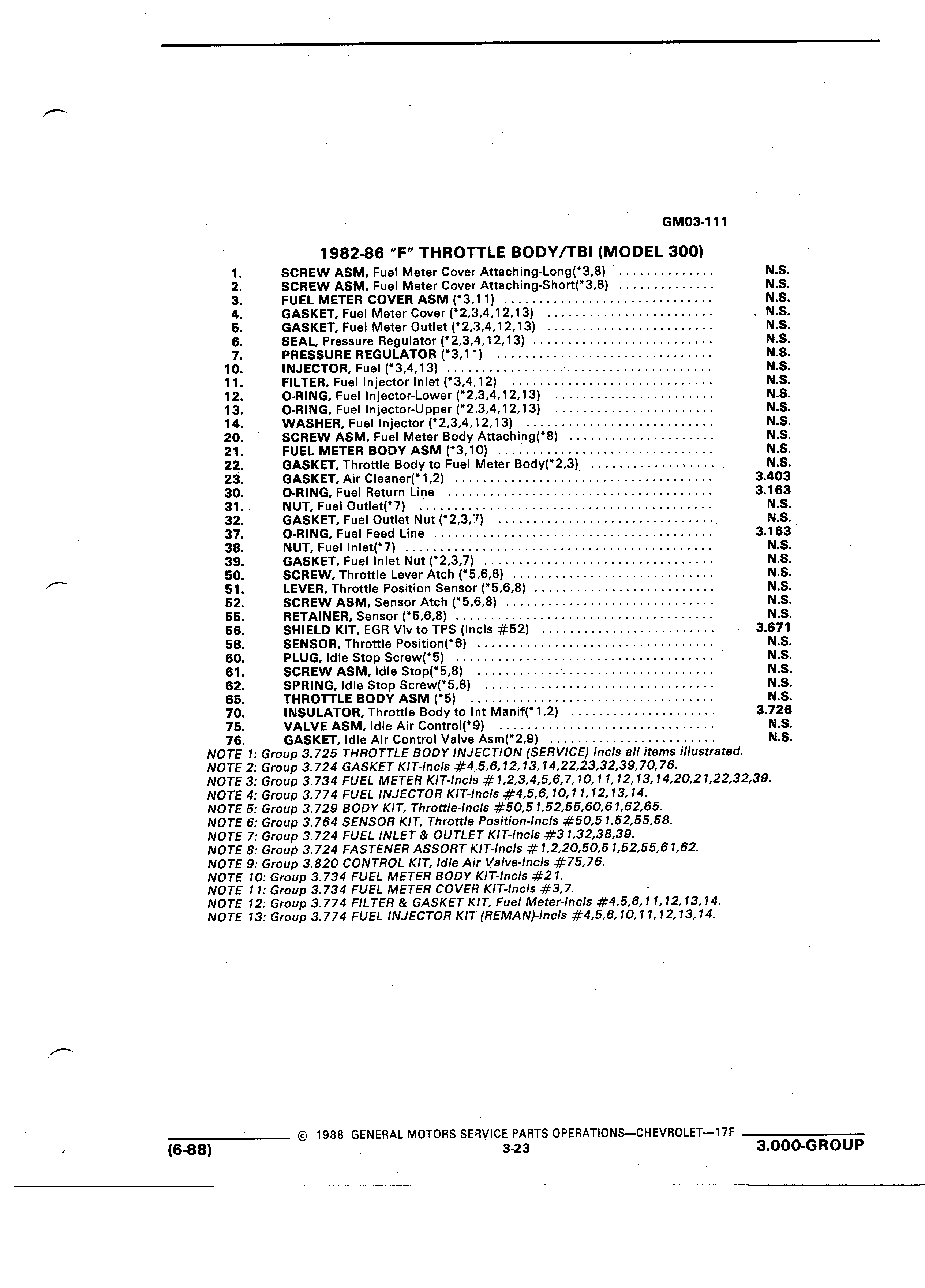

I r GM03 111 1982 86 F THROTTLE BODY TBI MODEL 300 1 SCREW ASM Fuel Meter Cover Attaching Long 3 8 N S 2 SCREW ASM Fuel Meter Cover Attaching Short 3 8 N S 3 FUEL METER COVER ASM 3 11 N S 4 GASKET Fuel Meter Cover 2 3 4 12 13 N S 5 GASKET Fuel Meter Outlet 2 3 4 12 13 N S 6 SEAL Pressure Regulator 2 3 4 12 13 N S 7 PRESSURE REGULATOR 3 11 N S 10 INJECTOR Fuel 3 4 13 N S 11 FILTER Fuel Injector Inlet 3 4 12 N S 12 0 RING Fuel Injector Lower 2 3 4 12 13 N S 13 O RING Fuel Injector Upper 2 3 4 12 13 N S 14 WASHER Fuel Injector 2 3 4 12 13 N S 20 SCREW ASM Fuel Meter Body Attaching 8 N S 21 I FUEL METER BODY ASM 3 10 N S 22 GASKET Throttle Body to Fuel Meter Body 2 3 N S 23 GASKET Air C eaner 1 2 3 403 30 O RING Fuel Return Line 3 163 31 NUT Fuel Outlet 7 N S 32 GASKET Fuel Outlet Nut 2 3 7 N S 37 O RING Fuel Feed Line 3 163f 38 NUT Fuel lnlet 7 N S I 39 GASKET Fuel Inlet Nut 2 3 7 N S 50 SCREW Throttle Lever Atch 5 6 8 N S I 51 LEVER Throttle Position Sensor 5 6 8 N S 52 SCREW ASM Sensor Atch 5 6 8 N S 55 RETAINER Sensor 5 6 8 N S 56 SHIELD KIT EGR Vlv to TPS Incls 52 3 671 58 SENSOR Throttle Position 6 N S 60 PLUG Idle Stop Screw 5 l N S 61 SCREW ASM Idle Stop 5 8 N S 62 SPRING Idle Stop Screw 5 8 N S 65 THROTTLE BODY ASM 5 N S 70 INSULATOR Throttle Body to Int Manif 1 2 3 726 75 VALVE ASM Idle Air ControI 9 N S 76 GASKET Idle Air Control Valve Asm 2 9 N S V NOTE 1 Group 3 725 THROTTLE BODY INJECTION SERVICE Incls all items illustrated NOTE 2 Group 3 724 GASKET KIT Incls 4 5 6 12 13 14 22 23 32 39 70 76 NOTE 3 Group 3 734 FUEL METER KIT Incls 1 2 3 4 5 6 7 10 1 1 12 13 14 20 21 22 32 39 NOTE 4 Group 3 774 FUEL INJECTOR KIT lncls 4 5 6 10 11 12 13 14 NOTE 5 Group 3 729 BODY KIT Throttle Incls 50 51 52 55 60 61 62 65 NOTE 6 Group 3 764 SENSOR KIT Throttle Position lncls 50 51 52 55 58 NOTE 7 Group 3 724 FUEL INLET OUTLET KIT Incls 31 32 38 3Q NOTE 8 Group 3 724 FASTENER ASSORT KIT lncls 1 2 20 50 51 52 55 61 62 NOTE 9 Group 3 820 CONTROL KIT Idle Air Valve lncls 75 76 NOTE 10 Group 3 734 FUEL METER BODY KIT Incls 21 V NOTE 11 Group 3 734 FUEL METER COVER KIT Incls 3 7 NOTE 12 Group 3 774 FILTER GASKET KIT Fuel Meter lncls 4 5 6 11 12 13 14 NOTE 13 Group 3 774 FUEL INJECTOR KIT REMAN lncls 4 5 6 10 11 12 13 14 T 1988 GENERAL MOTORS SERVICE PARTS OPERATlONS CHEVROLET 17F 1 6 88 3 23 3 000 GROUP
