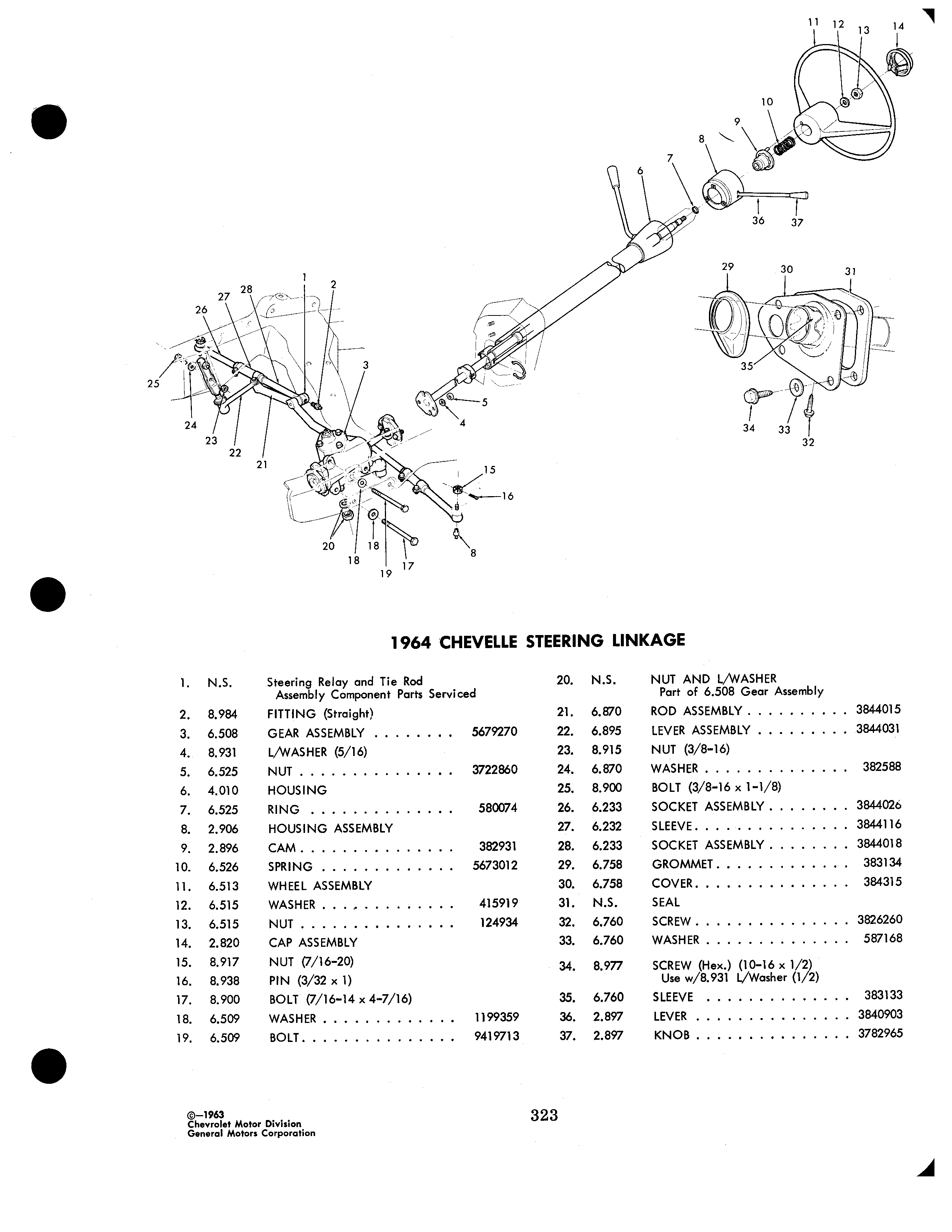

13 14 1 0 9 8 i f 6 7 36 37 29 30 31 28 1 2 26 27 1 f Il C I i 3 3 35 i 25 24 v I 4 34 33 i 23 22 32 21 i 15 o 16 20 8 1 18 I 17 8 19 1964 CHEVELLE STEERING LINKAGE 1 N S Steering Relay and Tie Rod 20 N S NUT AND L WASHER Assembly Component Parts Serviced Part of 6 508 Gear Assembly 2 8 984 FITTING Straight 21 6 870 ROD ASSEMBLY 3844015 3 6 508 GEAR ASSEMBLY 5679270 22 6 895 LEVER ASSEMBLY 3844031 4 8 931 L WASHER 5 16 23 8 915 NUT 3 8 16 5 6 525 NUT 3722860 24 6 870 WASHER 382588 6 4 010 HOUSING 25 8 900 BOLT 3 8 16 x 1 1 8 7 6 525 RING 580074 26 6 233 SOCKET ASSEMBLY 3844020 8 2 906 HOUSING ASSEMBLY 27 6 232 SLEEVE 3844116 9 2 896 CAM 382931 28 6 233 SOCKET ASSEMBLY 3844018 10 6 526 SPRING 5673012 29 6 758 GROMMET 383134 11 6 513 WHEEL ASSEMBLY 30 6 758 COVER 384315 12 6 515 WASHER 415919 31 N S SEAL 13 6 515 NUT 124934 32 6 760 SCREW 3826260 14 2 820 CAP ASSEMBLY 33 6 760 WASHER 587168 15 8 917 NUT 7 16 20 34 8 977 SCREW Hex 10 16 x 1 2 16 8 938 PIN 3 32 x 1 Use w 8 931 L Washer 12 17 8 900 BOLT 7 16 14 x 4 7 16 35 6 760 SLEEVE 383133 18 6 509 WASHER 1199359 36 2 897 LEVER 3840903 19 6 509 BOLT 9419713 37 2 897 KNOB 3782965 lss3 323 Chevrolet Motor Division General Motors Corporation
